Uni-T UT203+ Digital Clamp Multimeter DC AC Current Voltmeter 400-400A
Uni-T UT203+ Digital Clamp Multimeter DC AC Current Voltmeter 400-400A
Regular price
Rs.8,600.00 PKR
Regular price
Rs.9,800.00 PKR
Sale price
Rs.8,600.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Features Of UT 203 + 400-600A Digital Clamp Meter:
- UT203+ with a large LCD display screen and fast ADC / ADC converter, the data display is clear and intuitive, and easy to observe.
- UT203 plus Supports full-function with error detection protection, with over-current, over-voltage alarm prompts, you can rest assured that use.
- This multimeter Unit203 plus supports true RMS with high efficiency and real-time measure the RMS of various voltage waveforms.
- This Meter has a maximum 600V voltage measurement and a high voltage frequency measurement function.
- UT203 plus can be widely used in commercial, industrial, and residential circuit maintenance. It is a great tool for circuit repairmen.

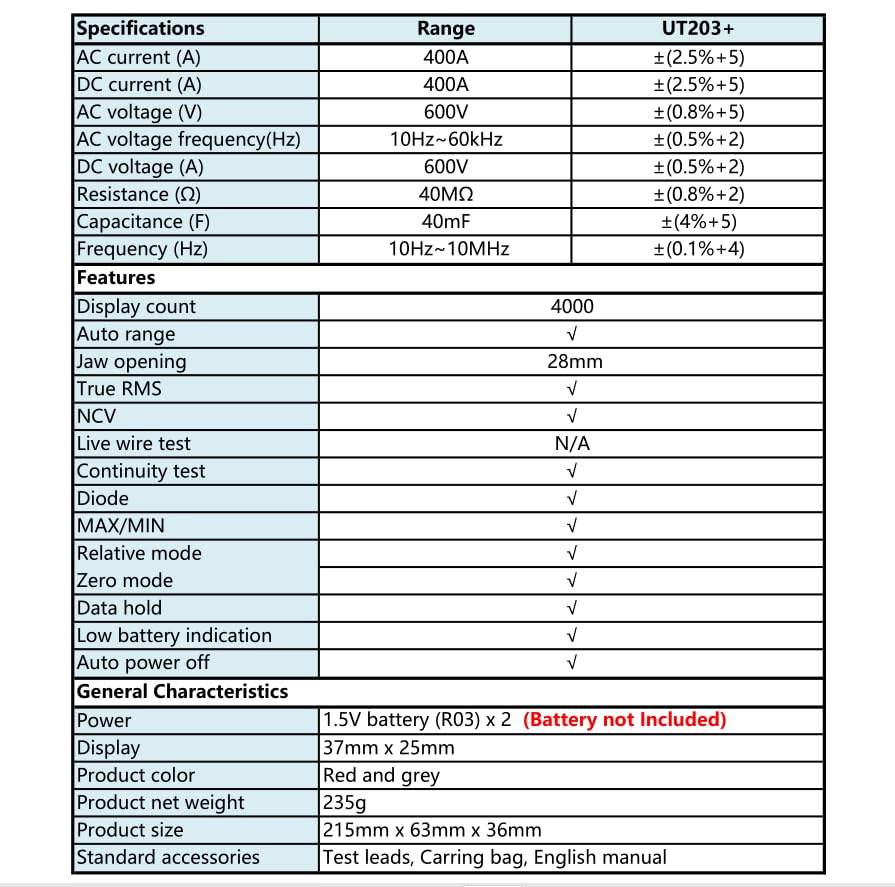

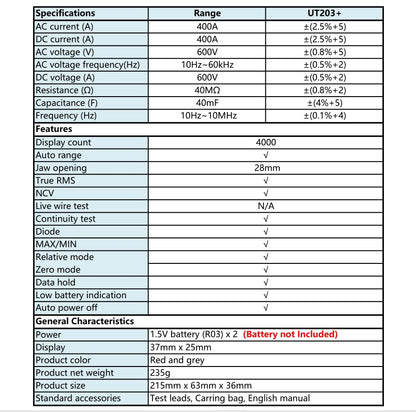

- Specifications Of UT203+ (upgraded UT203)
| Specifications | Range | UT201+ | UT202+ | UT202A+ | UT203+ | UT204+ |
| AC current (A) | 400A | ±(2%+10) | ±(2%+10) | ±(2.5%+5) | ||
| 600A | ±(2%+10) | ±(2.5%+5) | ||||
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||
| DC current (A) | 400A | ±(2.5%+5) | ||||
| 600A | ±(2.5%+5) | |||||
| AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||
| 10Hz~60kHz | ±(0.5%+2) | ±(0.5%+2) | ||||
| DC voltage (A) | 600V | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) |
| Resistance (?) | 40M? | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) | ||
| 60M? | ±(0.8%+2) | ±(0.8%+2) | ||||
| Capacitance (F) | 4mF | ±(4%+5) | ||||
| 40mF | ±(4%+5) | |||||
| 60mF | ±(4%+5) | ±(4%+5) | ||||
| Temperature (?) | -40?~1000? | ±(1.5%+5) | ±(1.5%+5) | |||
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | ||
| Features | ||||||
| Display count | 4000 | 4000 | 6000 | 4000 | 6000 | |
| Auto range | ? | ? | ? | ? | ? | |

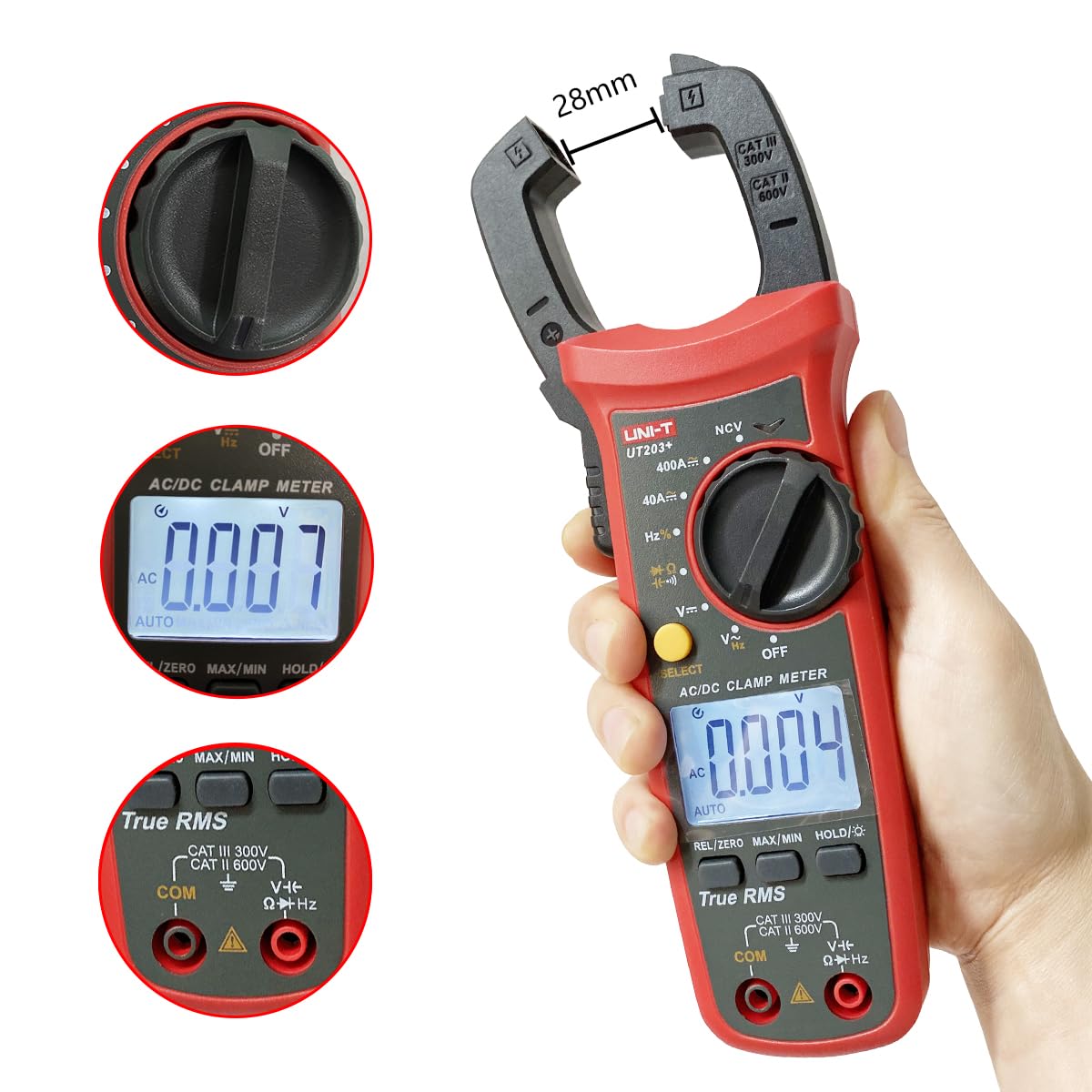

| Jaw opening | 28mm | 28mm | 28mm | 28mm | 28mm | |
| True RMS | ? | ? | ? | ? | ? | |
| NCV | ? | ? | ? | ? | ? | |
| Live wire test | ? | ? | ||||
| Continuity test | ? | ? | ? | ? | ? | |
| Diode | ? | ? | ? | ? | ? | |
| MAX/MIN | ? | ? | ? | ? | ? | |
| Relative mode | ? | ? | ? | ? | ||
| Zero mode | ? | ? | ||||
| Data hold | ? | ? | ? | ? | ? | |
| Low battery indication | ? | ? | ? | ? | ? | |
| Auto power off | ? | ? | ? | ? | ? | |
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 37mm x 25mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT201+/UT202+/UT202A+?248g; UT203+/UT204+:235g | |||||

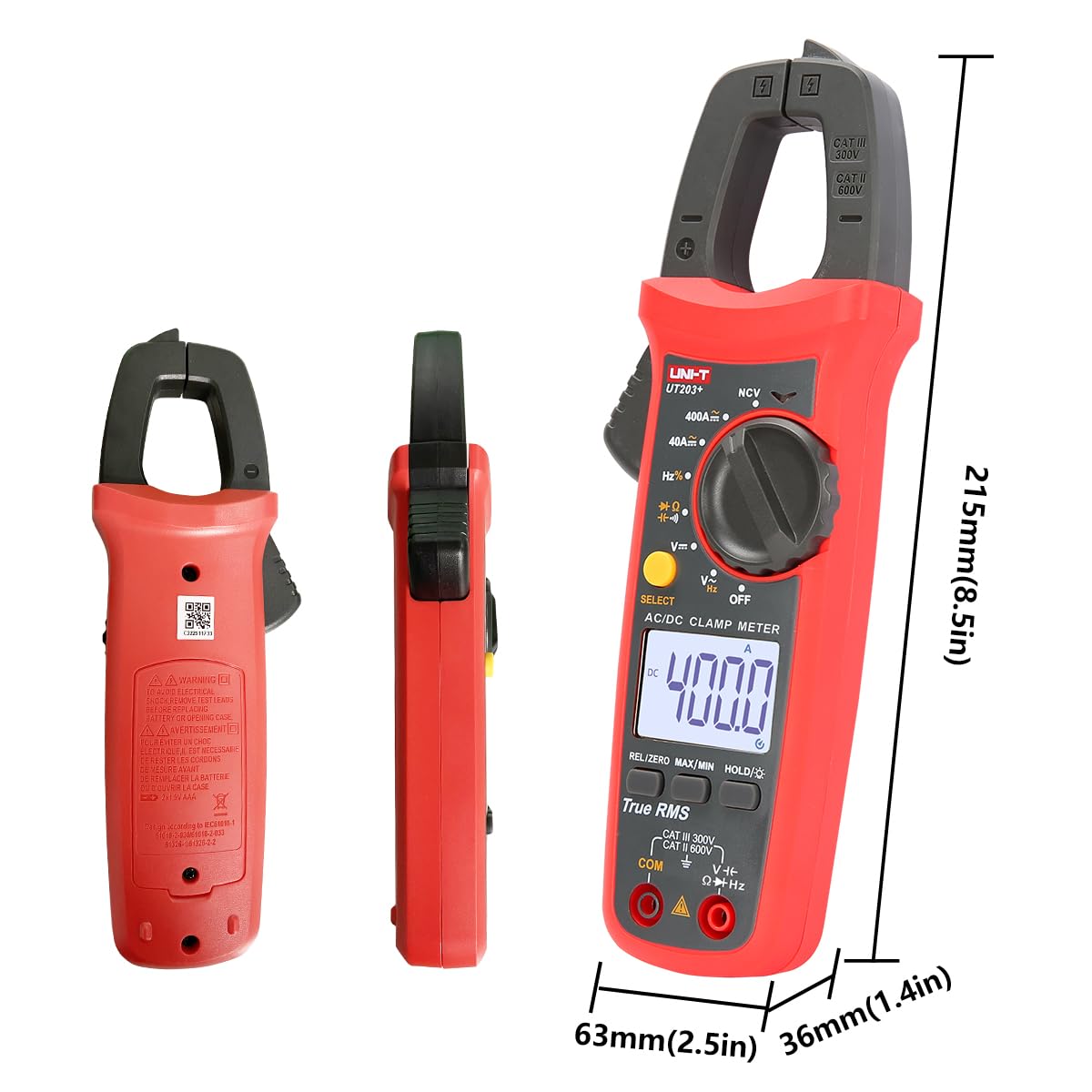

| Product size | 215mm x 63mm x 36mm | |||||

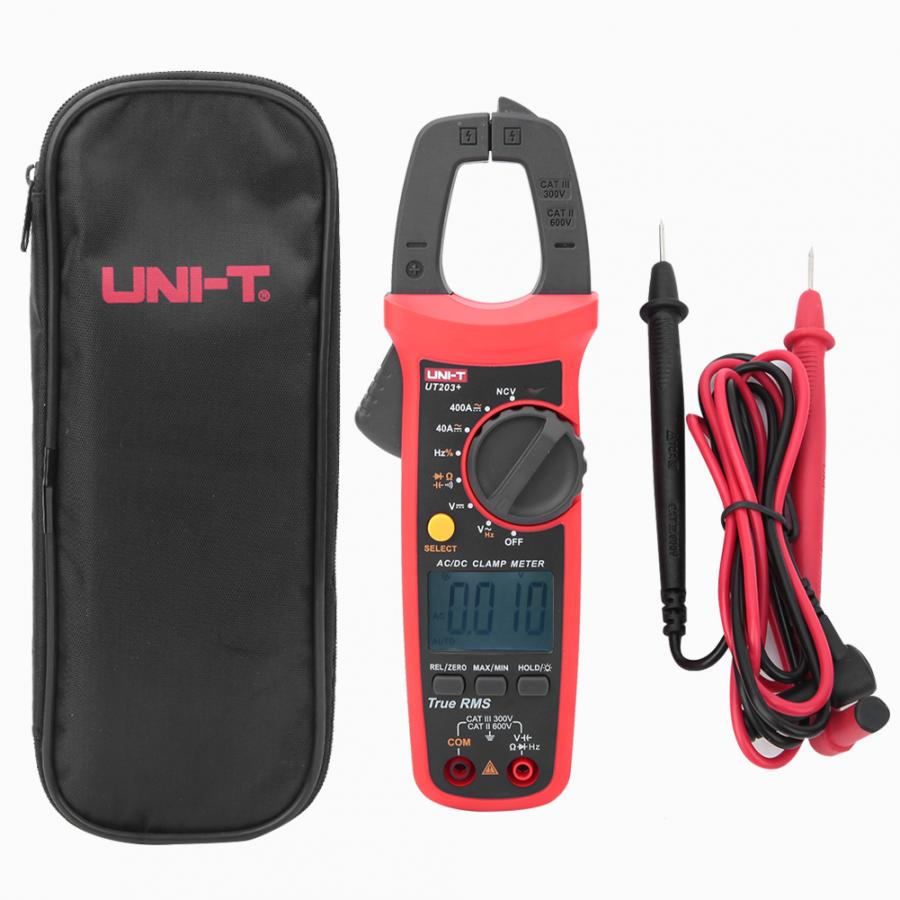

| Standard accessories | Batteries, test leads, Themocouple (UT202+/UT204+) | |||||
| Standard individual packing | Gift box, Carring bag, English manual | |||||
| Standard quantity per carton | 40pcs | |||||
| Standard carton measurement | 485mm x 295mm x 385mm | |||||
| Standard carton gross weight | UT202A+: 17.8kg; UT203+: 16.8kg; UT201+/202+/204+: 17.3kg | |||||
