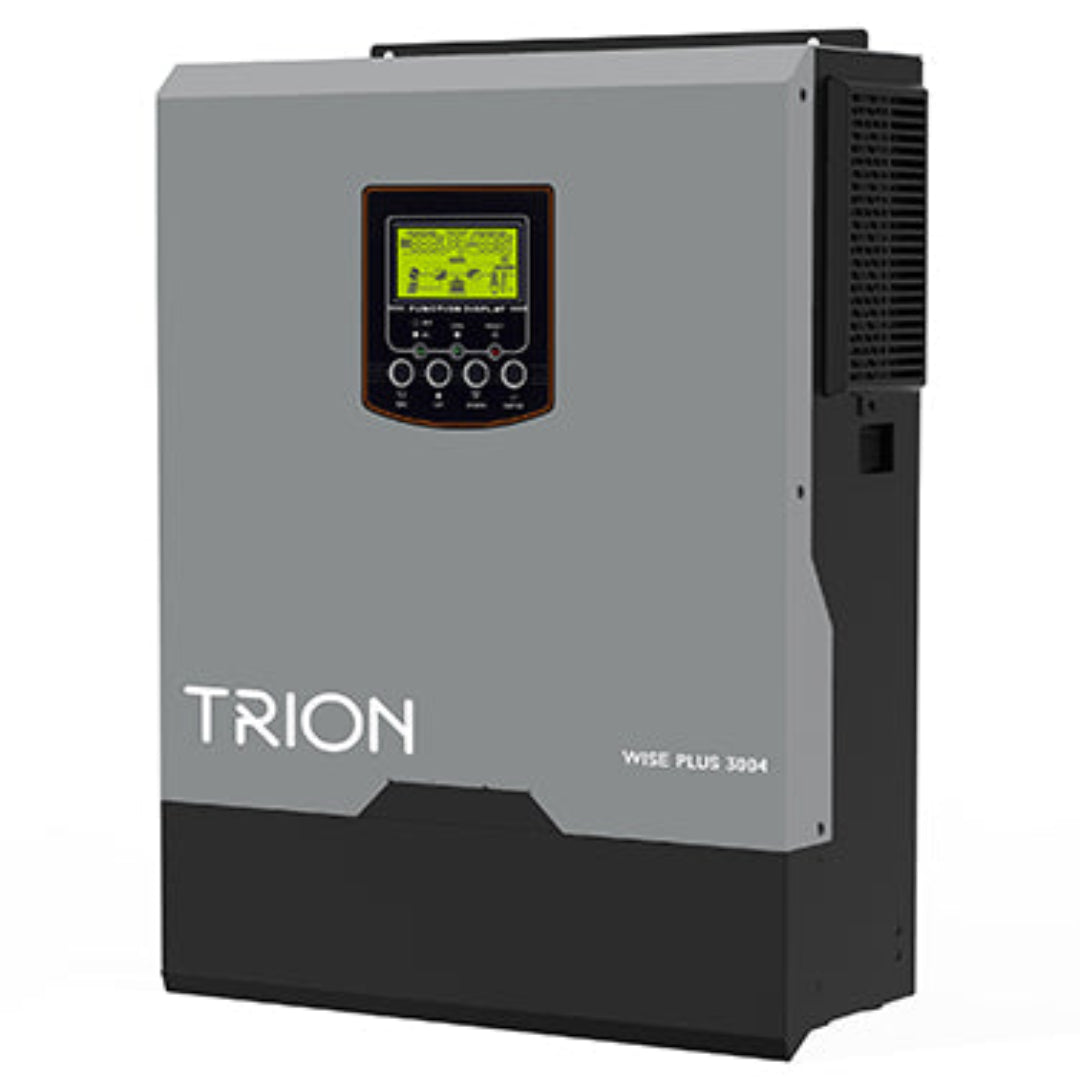

Trion Wise Plus-3004 3KW Off-Grid Solar Inverter with 3000W Solar Charge Controller

Trion Wise Plus-3004 3000W Off-Grid Solar Inverter with 3000W Solar Charge Controller

The Trion Wise Plus-3004 is a highly efficient off-grid solar inverter designed to provide reliable energy conversion for homes and small-scale applications. With its robust 80A MPPT solar charger, this inverter offers smart load management, efficient battery charging, and seamless integration with solar power systems.

Key Features

• Power Output: 3000VA/3000W rated output with pure sine wave AC, ensuring stable power for sensitive appliances.
• Wide PV Input Voltage Range: Supports PV input voltage from 60VDC to 400VDC, allowing compatibility with various solar panel configurations.
• Battery Independent Design: Operates independently of batteries, providing flexibility and optimizing energy use.
• Built-in 80A MPPT Solar Charger: Maximizes solar energy conversion and ensures efficient battery charging with the integrated MPPT controller.
• Battery Equalization Function: Optimizes battery performance and extends the life cycle by ensuring proper charging cycles.
• Efficient DC-AC Conversion: High efficiency with minimal energy loss during conversion, providing more usable power.
• 3-Stage Charging Control: Safely charges batteries with a 3-stage control system, preventing overcharging and thermal issues.
• Hi-tech Charging System: Built specifically for Pakistani-type batteries and optimized for local weather conditions, ensuring reliable performance.
• Selectable Input Voltage Range: Choose from a range of input voltage settings for home appliances (90-280 VAC) or personal computers (170-280 VAC).
• Surge Power: Can handle up to 6000VA surge power, making it suitable for high-power equipment startup.
• Pure Sine Wave Output: Provides clean and stable power, ideal for sensitive devices and electronics.
• Fast Transfer Time: Offers a 10ms transfer time for personal computers and 20ms for home appliances, ensuring a smooth power transition.
• Compact Design: Small form factor with dimensions of 100 x 288 x 390 mm and a lightweight of 7.5 kg.
• Communication Interface: RS-232 for remote monitoring and integration with external systems.
• Operating Conditions: Wide operating temperature range of -10°C to 50°C, suitable for various environmental conditions, and a humidity range of 5% to 95%.

Specifications

• Model: Wise Plus 3004
• Rated Power: 3000VA/3000W
• Input Voltage: 230VAC, selectable range (170-280 VAC for PCs, 90-280 VAC for home appliances)
• Output Waveform: Pure sine wave
• Surge Power: 6000VA
• Efficiency (Peak): 93%
• Battery Voltage: 24VDC
• Solar Charger: MPPT, maximum PV array power 3000W
• Maximum Solar Charge Current: 80A
• Operating Temperature: -10°C to 50°C
• Net Weight: 7.5 kg

Summary

The Trion Wise Plus-3004 is a highly efficient off-grid solar inverter perfect for residential or small-scale solar systems. With its intelligent battery management, wide voltage compatibility, and advanced features like MPPT charging and pure sine wave output, it provides a reliable, energy-efficient solution. It is ideal for those looking for an independent, eco-friendly energy system with advanced monitoring and protection features.
