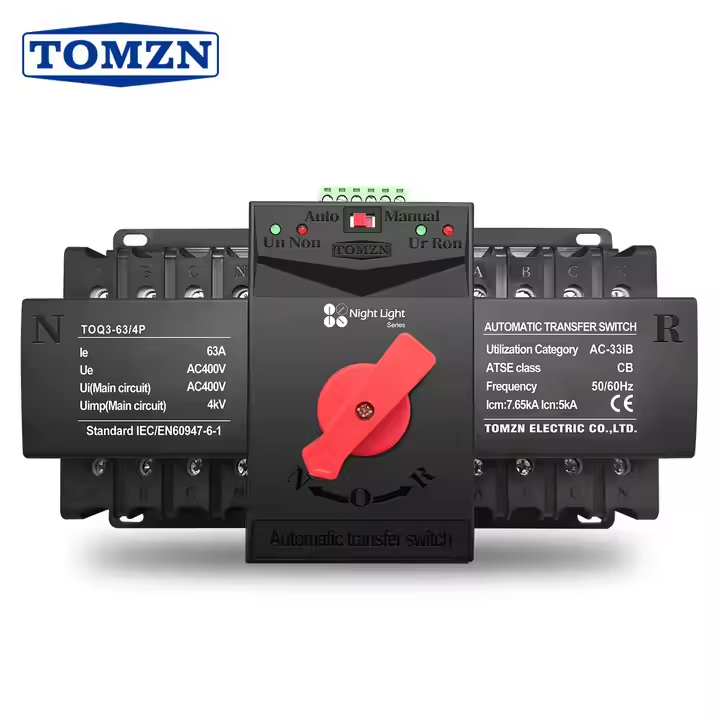

TOMZN 4P 3 Phase 63A MCB Type Dual Power Automatic Transfer Switch ATS (Night Light Series)
The TOMZN TOQ3-63/4P is a reliable and efficient 63A Automatic Transfer Switch (ATS) designed for uninterrupted power supply in three-phase or single-phase systems. Its dual power switching capability ensures seamless transitions between normal and backup power sources, making it ideal for industrial and residential applications.
Key Features

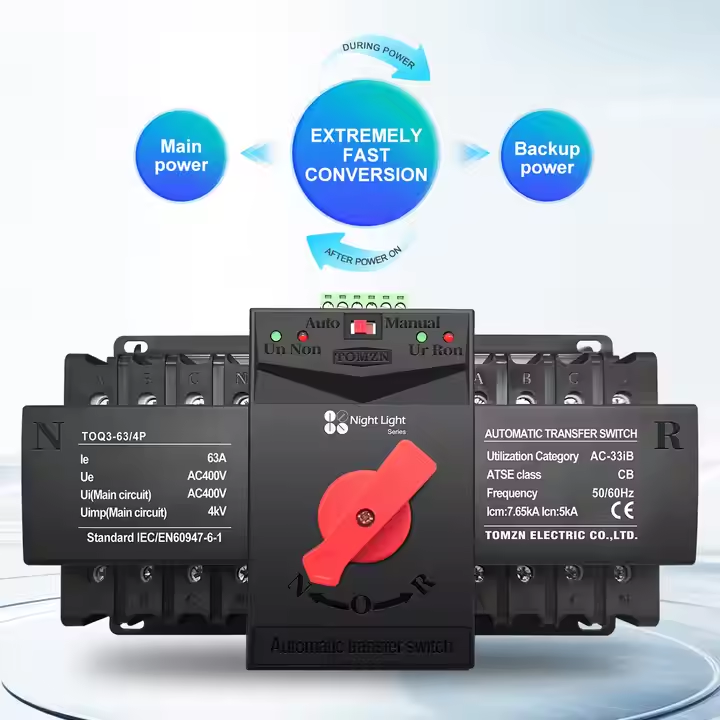

Dual Power Switching: Automatically switches between normal and reserve power to maintain a continuous power supply.
Manual/Automatic Operation: Offers flexibility to choose between automatic and manual switching based on user preference.
Quick Switching Time: Transfers power within < 4 seconds, minimizing downtime.
High Current Capacity: Rated for up to 63A, suitable for demanding applications.

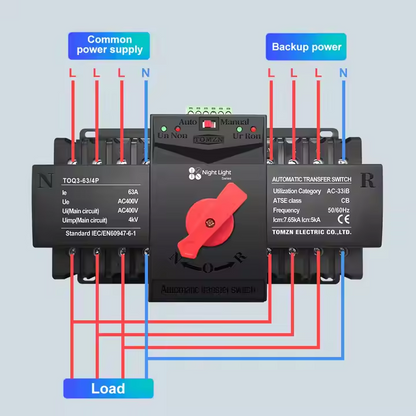

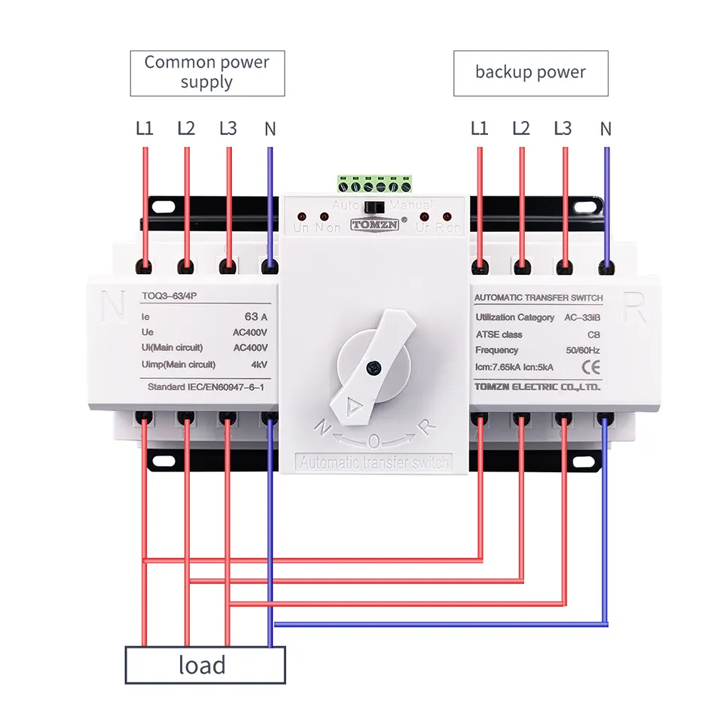

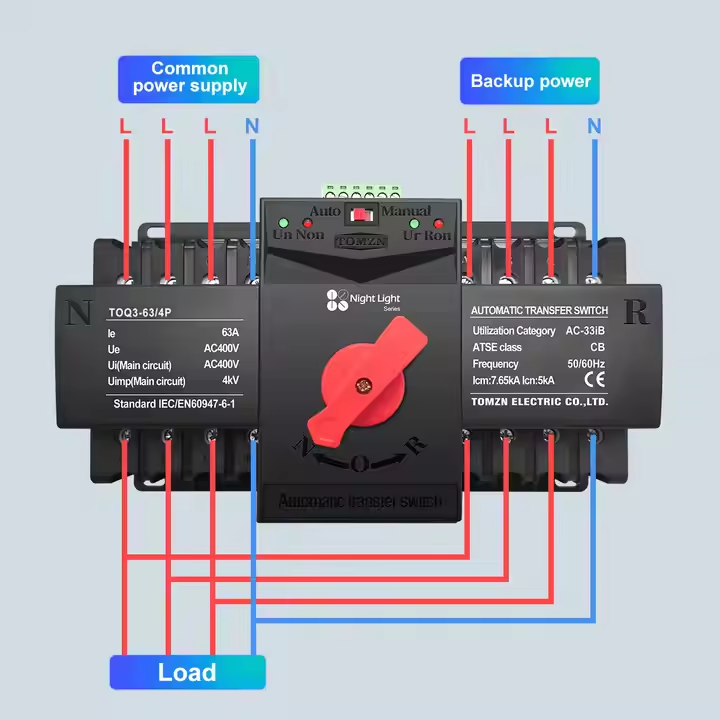

Wide Compatibility: Designed for 3-phase 4-wire or single-phase dual power systems with 380V/230V voltage.
Standards Compliance: Built to IEC60947-6-1 and GB/T14048.11 standards for reliability and safety.
Specifications
Model: TOQ3-63/4P
Rated Voltage: 380V (L1 + L2 + L3 + N)
Control Voltage: 220V (L + N)
Rated Current: 63A
Frequency: 50/60Hz
Switching Time: < 4 seconds
Environmental Conditions:
Operating Temperature: -5°C to +40°C
Installation Altitude: Up to 2000 meters
Pollution Level: Grade 3
Installation and Usage
Installation Orientation: Supports vertical or horizontal installation.
Power Interruption: Momentary power interruption during source switching.
The TOMZN 4P 63A ATS (Night Light Series) is the perfect solution for reliable power management, offering seamless switching, robust performance, and compliance with international standards.
