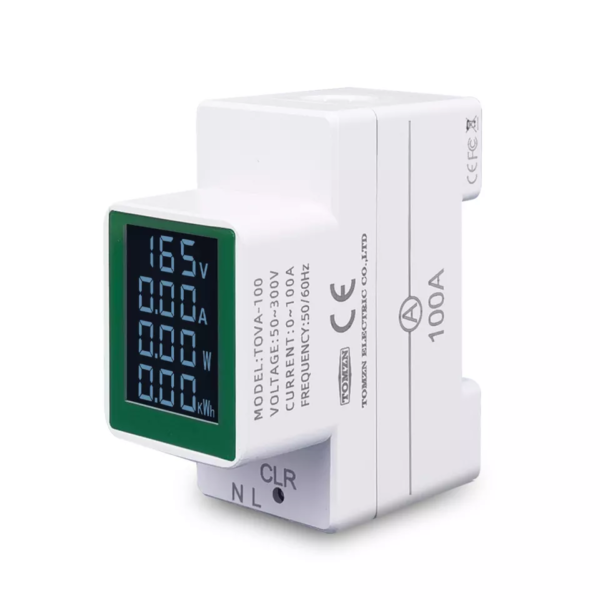

Tomzn TOVA-100 4in1 100A Din Rail Energy Meter

Tomzn 4in1 DIN Rail AC Monitor 220V 100A Voltage Current KWh Electric Energy Meter

Model: TOVA-100
Brand: TOMZN
Type: 4-in-1 Digital Energy Meter
Function: Measures AC voltage, current, active power, and energy

Key Features:

1. AC Voltage and Current Measurement:

   • Measures AC voltage (50-300V) and current (up to 100A).
   • Provides readings of active power and energy in real-time.

2. Wide Viewing Angle LCD Display:

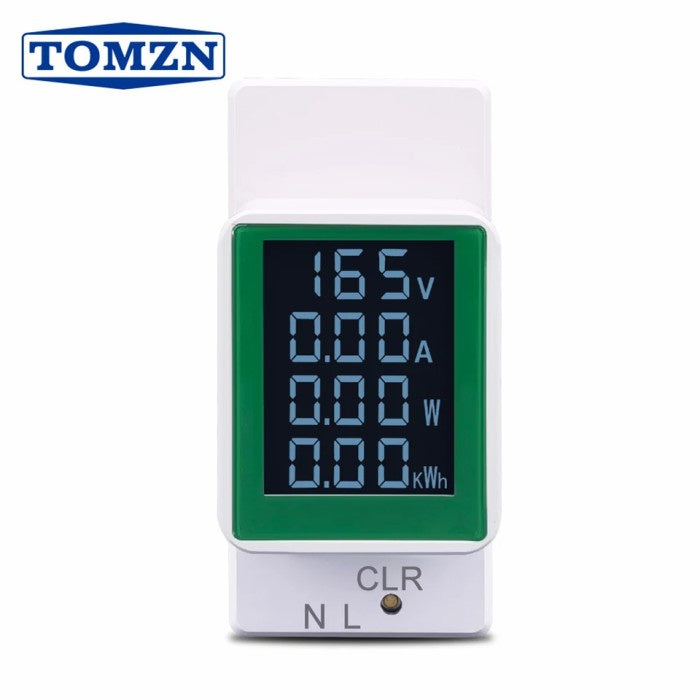

   • Displays voltage, current, active power, and energy data on a clear LCD screen.
   • White backlight for easy visibility in low-light conditions.

3. Accurate and Reliable:

   • Accuracy class: 1%, ensuring precise measurements of electrical parameters.
   • Suitable for 50/60Hz operation, making it versatile for various regions.

4. Energy Reset Function:

   • Reset the energy measurement by pressing the button for over 3 seconds to enter reset mode.
   • After releasing the button, short press it again to reset or wait for 3 seconds for automatic stop flashing.

5. Data Storage:

   • Energy data and backlight status are saved even after power loss.

6. Operating Temperature:

   • Designed for standard operating conditions, suitable for typical environments.

Specifications:

• Voltage Range: 50-300V (50/60Hz)
• Current Rating: Up to 100A
• Accuracy: ±1% for voltage, current, active power, and energy readings
• Display Type: Digital LCD
• Dimensions: 65mm x 34mm x 78mm
• Power Supply: AC powered
• Backlight Control: Manually controlled via a button

Applications:

• Ideal for use in industrial, commercial, or residential electrical systems.
• Perfect for monitoring voltage, current, and energy consumption in real-time.
• Convenient for installations on DIN rails for ease of integration into control panels.

Advantages:

• Versatility: Measures multiple electrical parameters in one device.
• Energy Efficiency: Helps track energy usage and consumption trends.
• Easy to Install and Use: DIN rail mounting and simple button interface for operation and reset.
• Durable Design: Reliable performance with high accuracy and memory for energy data.

This Tomzn 4in1 Energy Meter offers a practical solution for monitoring and managing electrical parameters, making it an excellent choice for professionals seeking accurate and efficient energy measurement.
