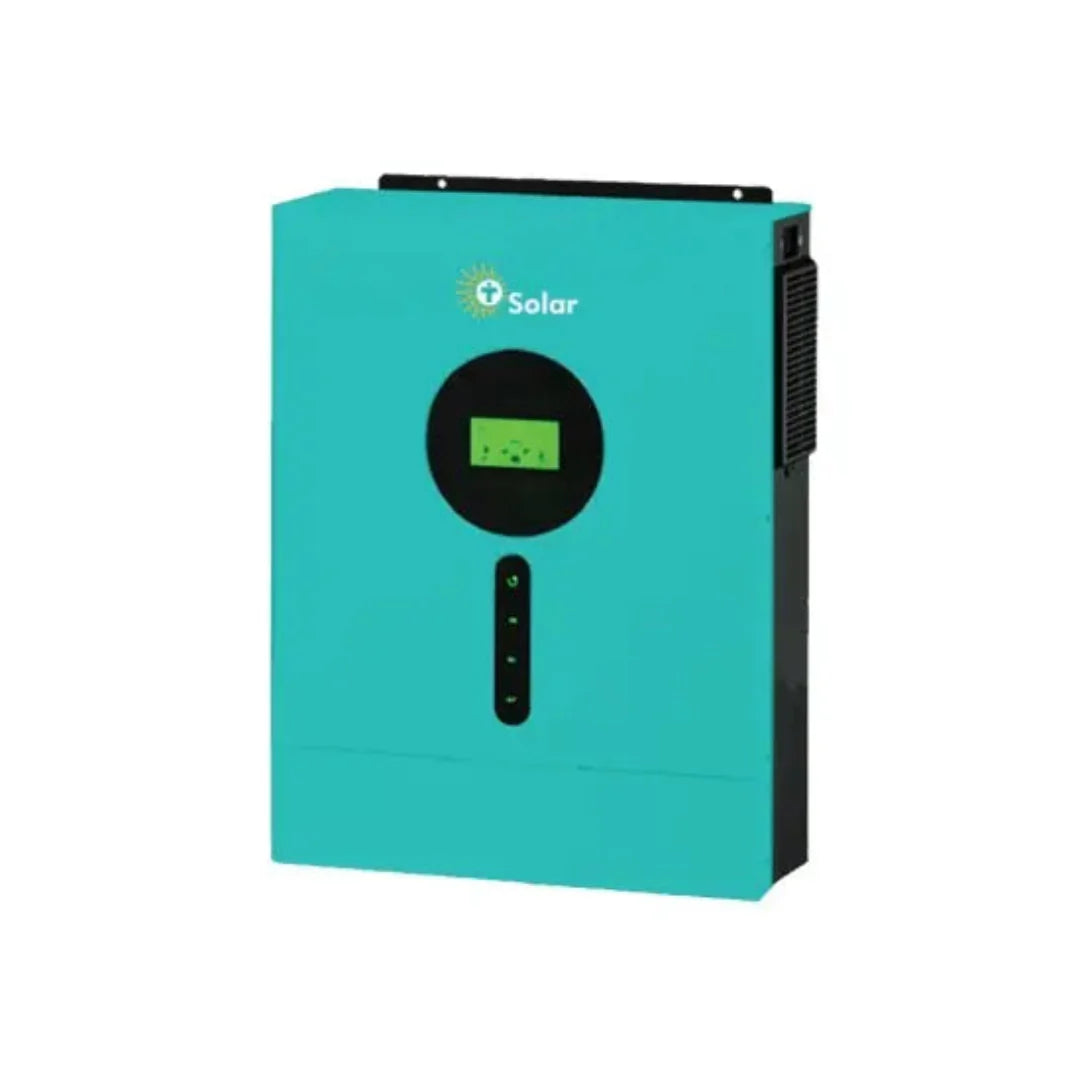

Tesla VMII 5.6kW Plus Solar Inverter
Tesla VMII 5.6kW Plus Solar Inverter
Regular price
Rs.120,000.00 PKR
Regular price
Sale price
Rs.120,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Tesla VMII 5.6kW Plus
The Tesla VMII 5.6kW Plus is a high-performance hybrid inverter system designed for residential and commercial use, offering efficient solar power conversion and storage. It provides a pure sine wave output, making it ideal for powering sensitive electronics like computers, while also being suitable for home appliances.
| Parameter | Value |
| Rated Power | 3600VA/3000W |
| Voltage | 230 VAC |
| Selectable Voltage Range |
170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
|
| Frequency Range |
50 Hz/60 Hz (Auto sensing)
|
| Surge Power | 7200VA |
| Efficiency (Peak) | 93% |
| Transfer Time |
10 ms (For Personal Computers), 20 ms (For Home Appliances)
|
| Waveform | Pure sine wave |
| Dual Outputs | Yes |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 5000W |
| Maximum PV Input Current | 27A |
| MPP Range @Operating Voltage | 60-450 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension, D x W x H (mm) |
107 x 322.6 x 420.3
|
| Net Weight (kgs) | 9.5 |
| Communication Interface | USB/RS-232 |
| Humidity |
5% to 85% Relative Humidity (Non-condensing)
|
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
