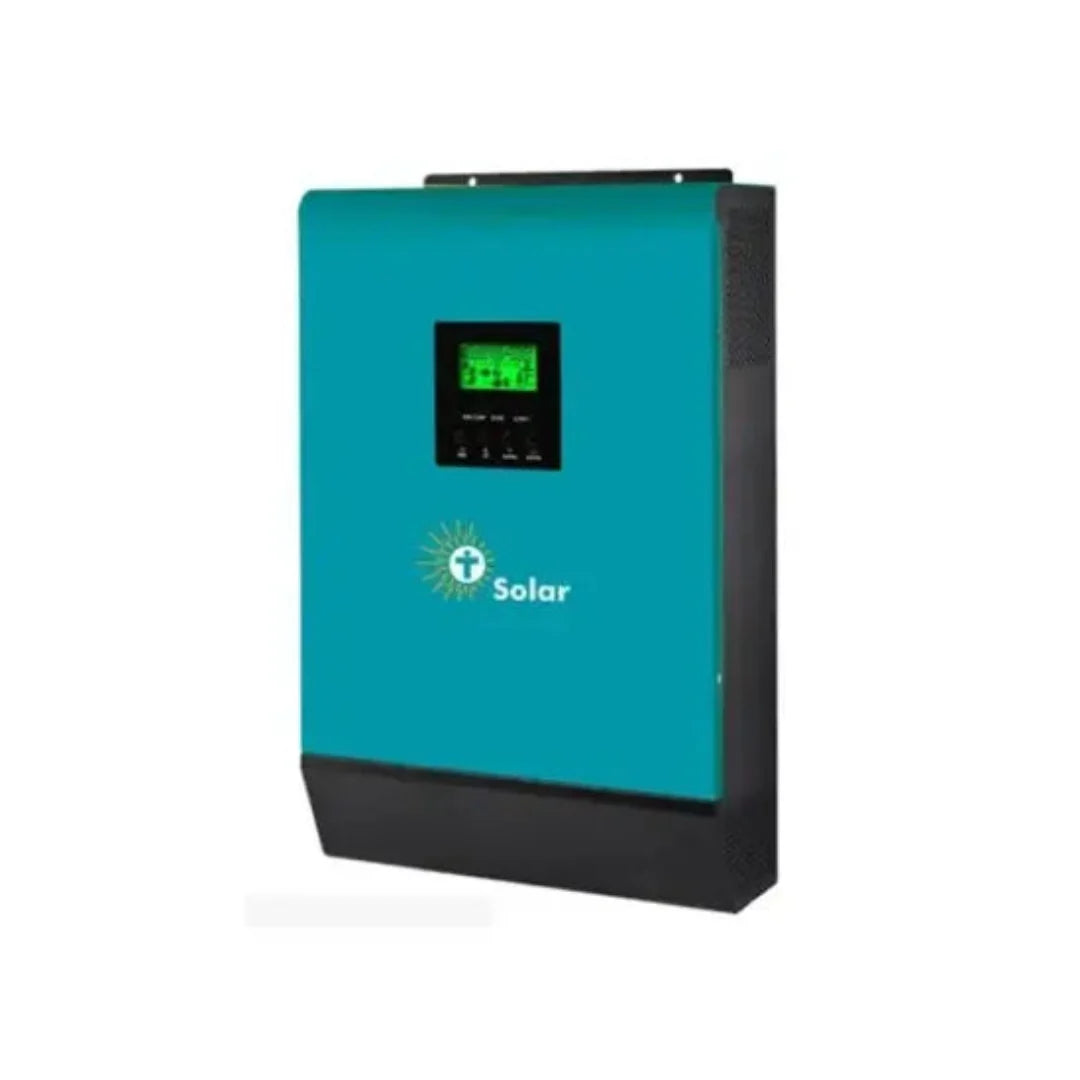

Tesla VMII 3.6kW Plus Solar Inverter
Tesla VMII 3.6kW Plus Solar Inverter
Regular price
Rs.100,000.00 PKR
Regular price
Sale price
Rs.100,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Tesla VMII 3.6kW Plus
The Tesla VMII 3.6kW Plus is an advanced hybrid inverter system designed for both residential and commercial solar energy solutions. With efficient energy conversion and robust features, this model is well-suited for sensitive electronics and home appliances alike.
| Parameter | Value |
| Rated Power | 3600VA/3000W |
| Voltage | 230 VAC |
| Selectable Voltage Range |
170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
|
| Frequency Range |
50 Hz/60 Hz (Auto sensing)
|
| Surge Power | 7200VA |
| Efficiency (Peak) | 93% |
| Transfer Time |
10 ms (For Personal Computers), 20 ms (For Home Appliances)
|
| Waveform | Pure sine wave |
| Dual Outputs | Yes |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum PV Array Power | 5000W |
| Maximum PV Input Current | 27A |
| MPP Range @Operating Voltage | 60-450 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| Dimension, D x W x H (mm) |
107 x 322.6 x 420.3
|
| Net Weight (kgs) | 9.5 |
| Communication Interface | USB/RS-232 |
| Humidity |
5% to 85% Relative Humidity (Non-condensing)
|
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
