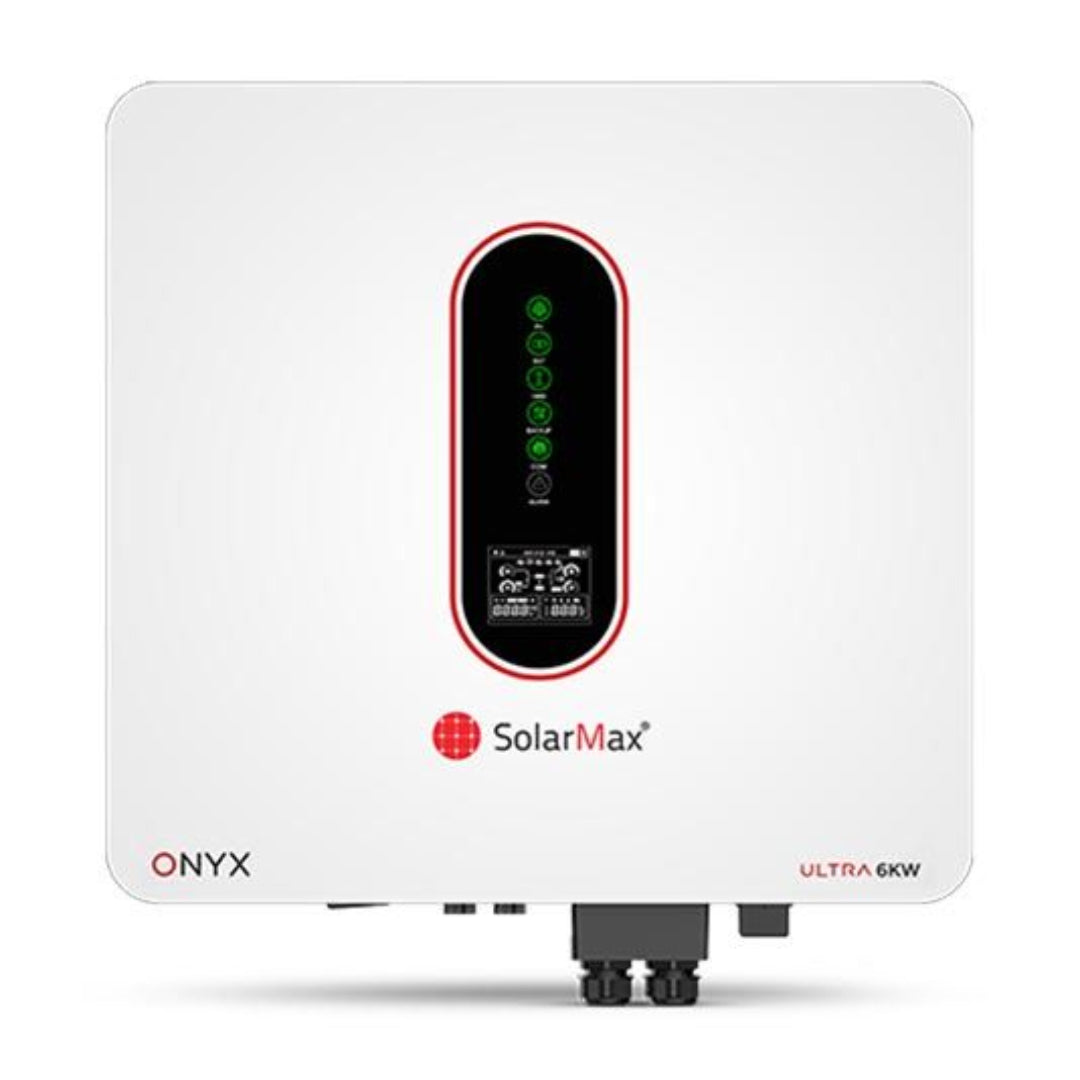

SolarMax Onyx ultra 6KW Hybrid Solar Inverter With PV9000 IP65
SolarMax Onyx ultra 6KW Hybrid Solar Inverter With PV9000 IP65
Regular price
Rs.315,000.00 PKR
Regular price
Rs.350,000.00 PKR
Sale price
Rs.315,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
SolarMax SM-ONYX-UL-6KW Hybrid Solar Inverter
The SolarMax SM-ONYX-UL-6KW is an upgraded 2024 model offering advanced hybrid functionality with dual MPPT and dual AC outputs, making it a versatile choice for residential, commercial, and off-grid solar installations. This inverter supports seamless integration with solar panels, battery systems, and generators, ensuring maximum energy efficiency and flexibility.
Key Features
- Rated Power: 6000W AC output, ideal for powering large residential or commercial systems.
- Dual MPPT PV Input: Capable of handling up to 9000W from solar panels, allowing for optimal energy harvesting and management across different strings of panels.
- Max Charging Current: 120A, ensuring fast charging of battery systems.
- MPPT Voltage Range: 70V to 520V DC, offering flexibility with a wide range of solar panels.
- Max PV Input Voltage: 550V DC, providing high voltage capacity to suit various solar setups.
- Battery Voltage: 48V with a range of 40V to 60V DC, compatible with both lead-acid and lithium batteries.
- Built-in Battery Management System (BMS): Optimizes battery life and ensures safe, efficient charging and discharging.
- Set Bulk & Float Voltage for Lead Acid/Flooded Batteries: New feature for better battery charging control.
- Dual AC Output: 6000W, allowing you to distribute power to different loads or areas within your property.
- LCD Display: Provides clear and accessible status information and settings for easy operation and monitoring.
- WiFi & Bluetooth Integration: Includes WiFi dongle for remote monitoring and firmware updates; Bluetooth for parameter settings from mobile devices.
- Parallel Operation: Supports parallel configurations with 9 units in single-phase and 3 units in three-phase for expanded system capacity.
- Generator Compatibility: Can work with generators and automatically start the generator when required, adding flexibility in off-grid and backup scenarios.
- Pure Sine Wave Output: Ensures stable and clean power for sensitive electronics and appliances.
- Net Metering: Supports feed-in to the grid, allowing users to earn credits for excess energy produced.
- Easy Installation: Plug-and-play setup for quick and hassle-free installation.
- CT Function for Self Consumption: Helps to optimize self-consumption of solar power, ensuring maximum use of generated energy.
The SolarMax SM-ONYX-UL-6KW is a high-performance hybrid inverter with a broad range of features designed to meet the energy needs of modern homes and businesses. With its advanced monitoring options, generator compatibility, and parallel operation capabilities, it offers an efficient and flexible solar energy solution for any setup.
| Model | SM-ONYX-DUAL ULTRA 6KW |
| Input (PV) | |
| MAX PV Power (W) | 9000W |
| Max PV Voltage (V) | 550VDC |
| Max input current (input A/input B) (A) | 30A (15A +15A) |
| Max short current (input A/input B) (A) | 40A (20A +20A) |
| Start operating voltage (V) | 90VDC |
| MPPT voltage range (V) | 70-520VDC |
| No.of MPPT trackers | 2 |
| String per MPP tracker | 1 |
| Input (BATTERY) | |
| Compatible battery type | Lithium-ion/Lead-acid |
| Nominal battery voltage (V) | 48VDC |
| Battery voltage range (V) | 40-60VDC |
| Max. charge/discharge current (A) | 120A/120A |
| Max. charge/discharge power (W) | 6000W/6000W DUAL |
| Charging curve | 3 Stages/Equalization |
| Lithium battery charge curve | Self-adaption to BMS |
| Output (Grid) | |
| Nominal AC output power (W) | 6000W DUAL |
| Max. AC output apparent power (VA) | 6000W DUAL |
| Max.AC output power (PF=1) (W) | 6000W DUAL |
| Max. AC output current (A) | 27.2A |
| Rated AC voltage (V) | 220VAC |
| AC voltage range (V) | 150-300VAC (adjustable) |
| Rated grid frequency (Hz) | 50Hz/60Hz |
| AC frequency range (Hz) | 45-55Hz/55-65Hz (adjustable) |
| Grid connecion | Single Phase |
| THDI | <3% |
| Output (Back up) | |
| Nominal output voltage (V) | 230VAC |
| Nominal output frequency (Hz) | 50/60Hz |
| Nominal output power (W) | 6000W |
| Nominal output current (A) | 26A |
| Transfer time (ms) | 10(typ) / 20(max) |
| THDV | <3% @100% R Load |
| Protection | |
| Protection category | Class I |
| DC switch | Support |
| Anti-islanding protection | Support |
| AC overcurrent protection | Support |
| AC short circuit protection | Support |
| DC reverse connection | Support |
| Surge Arrester | DC Type III, AC Type III |
| Insulation detection | Support |
| Leakage current protection | Support |
| PV overvoltage category | || |
| AC overvoltage category | ||| |
| Efficiency | |
| Max.Efficiency (PV to AC) | >97.3% |
| Max.Efficiency (BAT to AC) | >94.0% |
| MPPT Efficiency | >99.0% |
| General | |
| Max. operation altitude (m) | 4000 |
| Noise emission (dB) | <35 |
| Ingress protection degree | IP65 |
| Operating temperature range | -25~60 |
| Relative humidity (%) | 0~100 |
| Cooling concept | Natural Cooling |
| Mounting | Wall bracket |
| Dimensions (W*H*D) | 515mm*450mm*175mm |
| Weight | 25Kg |
| PV connection way | MC4/H4 |
| Battery connection way | Dedicated DC connector |
| AC connection way (grid & back up) | Dedicated AC connector |
| HMI & COM | |
| Display | LCD+LED+APP |
| Communication interface | RS485/CAN (for BMS), RS485, USB, DRM/RS485 (for Meter), Bluetooth, Wifi, Optional : GPRS/Ethernet |
| Certification | |
| Grid | VDE-AR-N4105, IEC 61727/62116, AS 4777.2, EN 50549-1 |
| Safety | IEC62109-1&2, IEC62040-1, IEC62477-1 |
| Warranty (years) | 6 Years |
Note : (Six Year replacement warranty)
