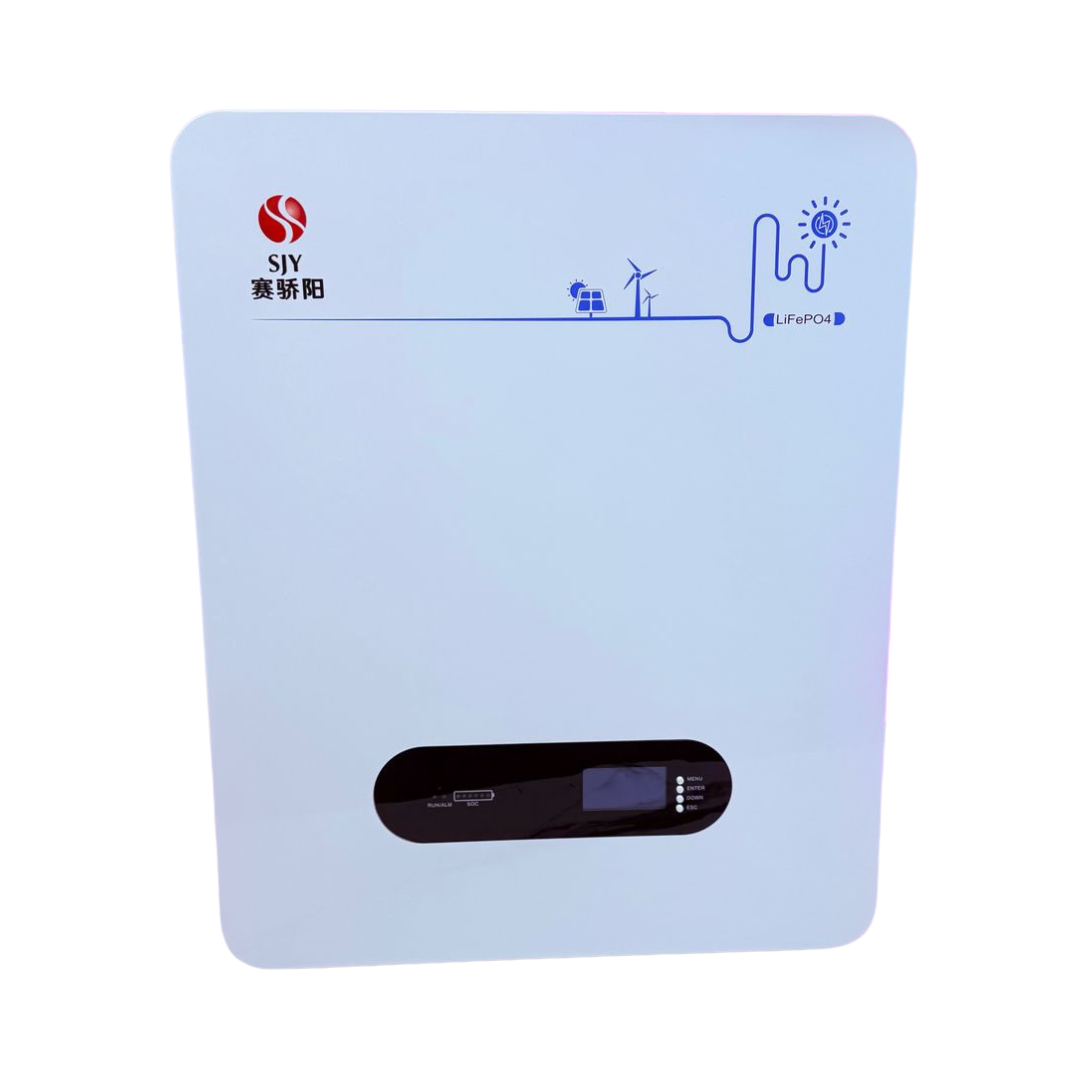

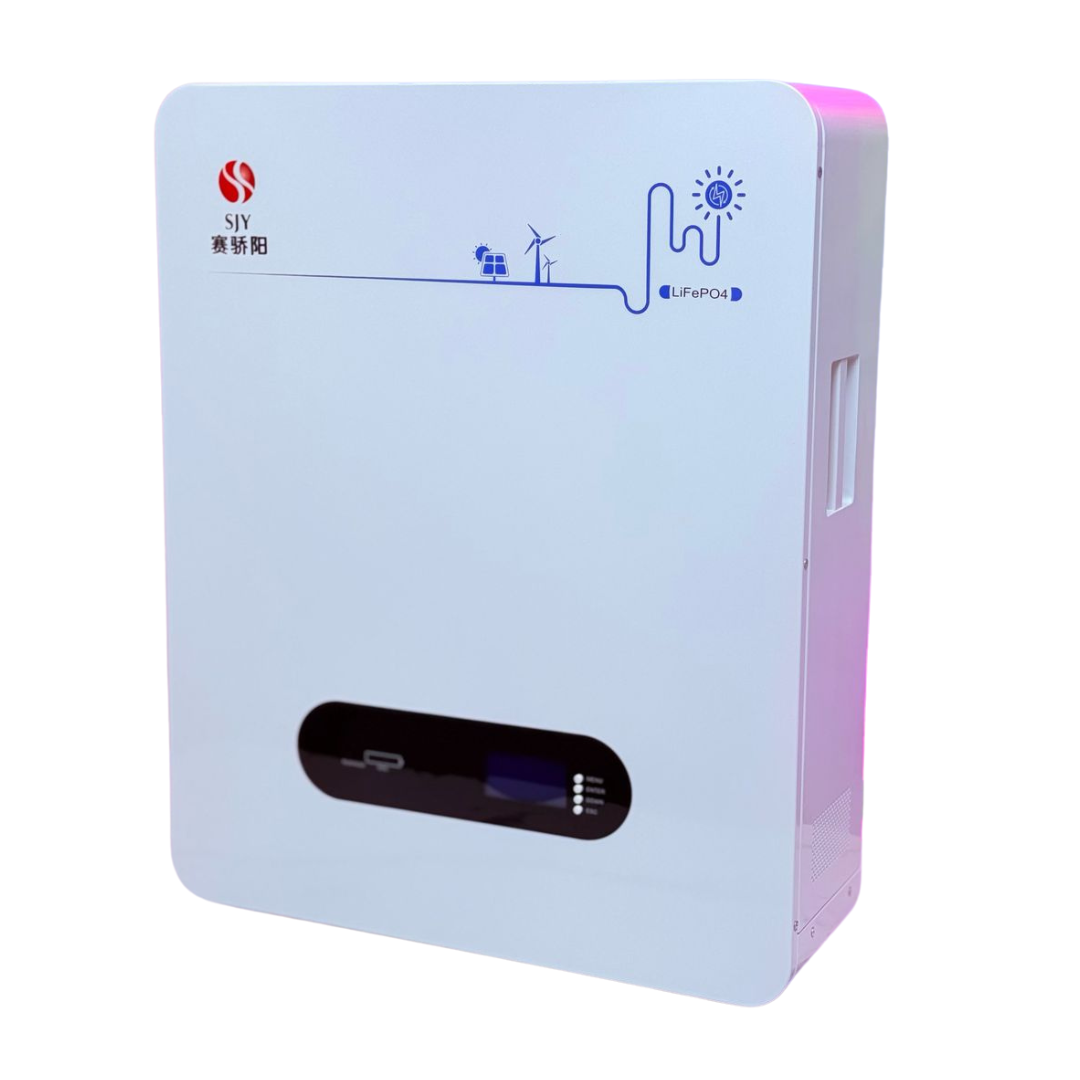

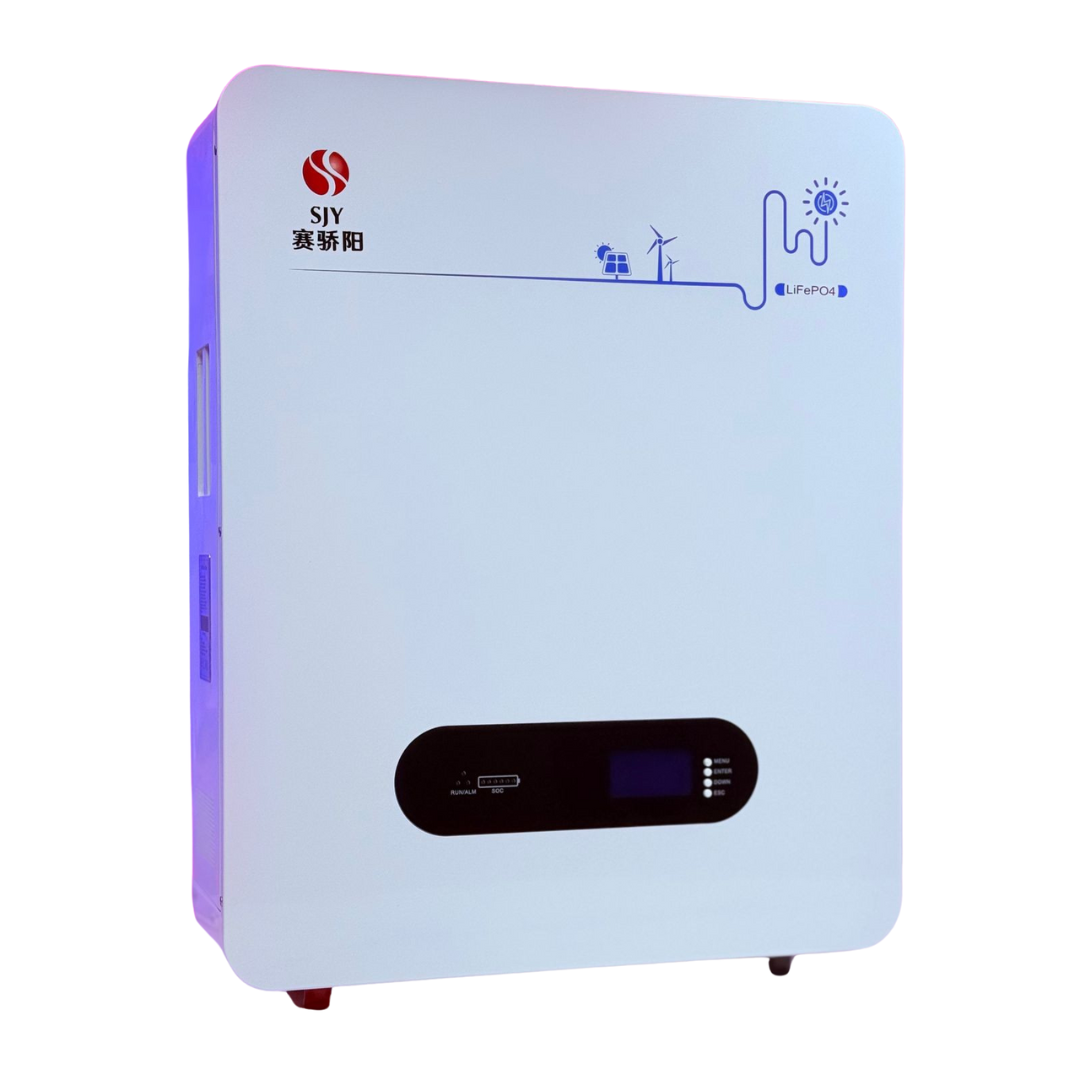

SJY 51.2V 200Ah Lithium Iron Phosphate (LiFePO4) Battery – 10.24kWh Energy Storage | Smart BMS & Long Life
SJY 51.2V 200Ah Lithium Iron Phosphate (LiFePO4) Battery – 10.24kWh Energy Storage | Smart BMS & Long Life
Regular price
Rs.475,000.00 PKR
Regular price
Rs.510,000.00 PKR
Sale price
Rs.475,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
51.2V 200Ah LiFePO4 Battery – 10.24kWh Energy Storage | Smart BMS & Long Life
The 51.2V 200Ah LFP Battery System by Shenzhen Saijiaoyang Energy Technology Co., Ltd. is a high-capacity lithium iron phosphate (LFP) battery designed for energy storage applications. It features 16 cells in series with an intelligent battery management system (BMS) for enhanced performance, protection, and longevity. The battery is suitable for telecom backup, energy storage systems, hybrid energy stations, backup power supplies, and home energy solutions.
Key Features:
- High Energy Density – Compact and lightweight design for efficient storage.
- Long Cycle Life – Supports over 8000 charge cycles at 90% Depth of Discharge (DoD).
- Advanced BMS Protection – Monitors charge/discharge, prevents overcharging, over-discharging, and overheating.
- Wide Operating Temperature – Functions in extreme conditions (-20°C to 55°C discharge, 0°C to 50°C charge).
- High Safety Standards – Designed with built-in short circuit, overvoltage, and temperature protection.
- RS485 & CAN Communication – Supports real-time monitoring and integration with inverters.
- Modular Design – Stackable for scalable energy storage needs.
- Lightweight & Compact – Dimensions: 700mm x 570mm x 227.5mm, Weight: 86.5kg.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 51.2V |
| Rated Capacity | 200Ah (0.2C standard charge/discharge) |
| Total Energy | 10.24kWh |
| Cycle Life | ?8000 cycles (90% DoD, 25°C) |
| Charging Voltage | 58.4V (3.65V per cell) |
| Charging Current | Standard: 20.4A (0.2C), Max: 50A |
| Discharge Current | Standard: 50A (0.5C), Max: 100A |
| Discharge Cut-off Voltage | 43.2V (2.7V per cell) |
| Weight | 86.5kg |
| Dimensions (mm) | 700 x 570 x 227.5 |
| Communication Interface | RS485, CAN, RS232 |
| Operating Temperature | Charge: 0°C to 50°C, Discharge: -20°C to 55°C |
| Storage Temperature | -10°C to 45°C |
The 51.2V 200Ah LFP Battery System is an ideal choice for energy storage and backup power applications, providing reliability, safety, and long service life.
