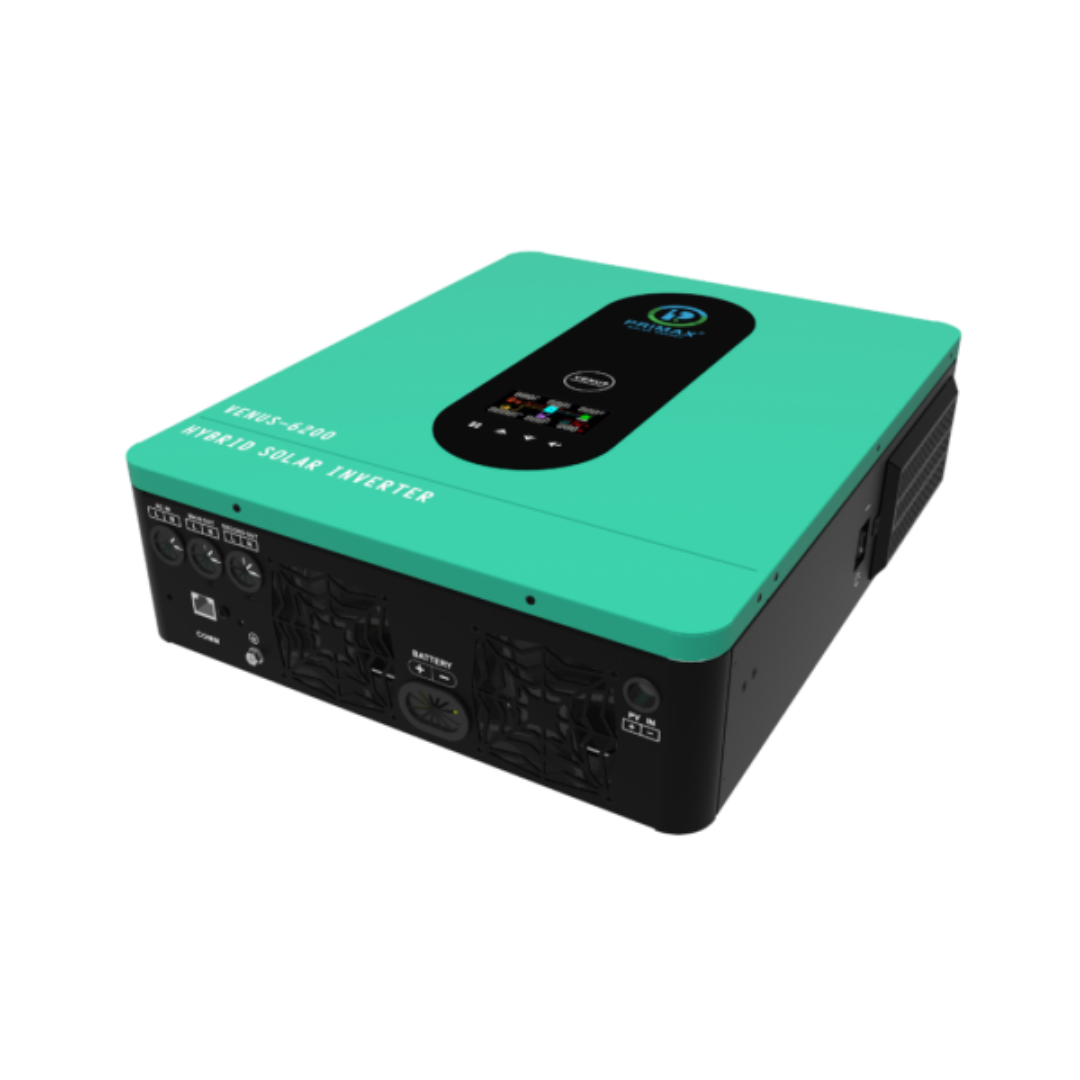

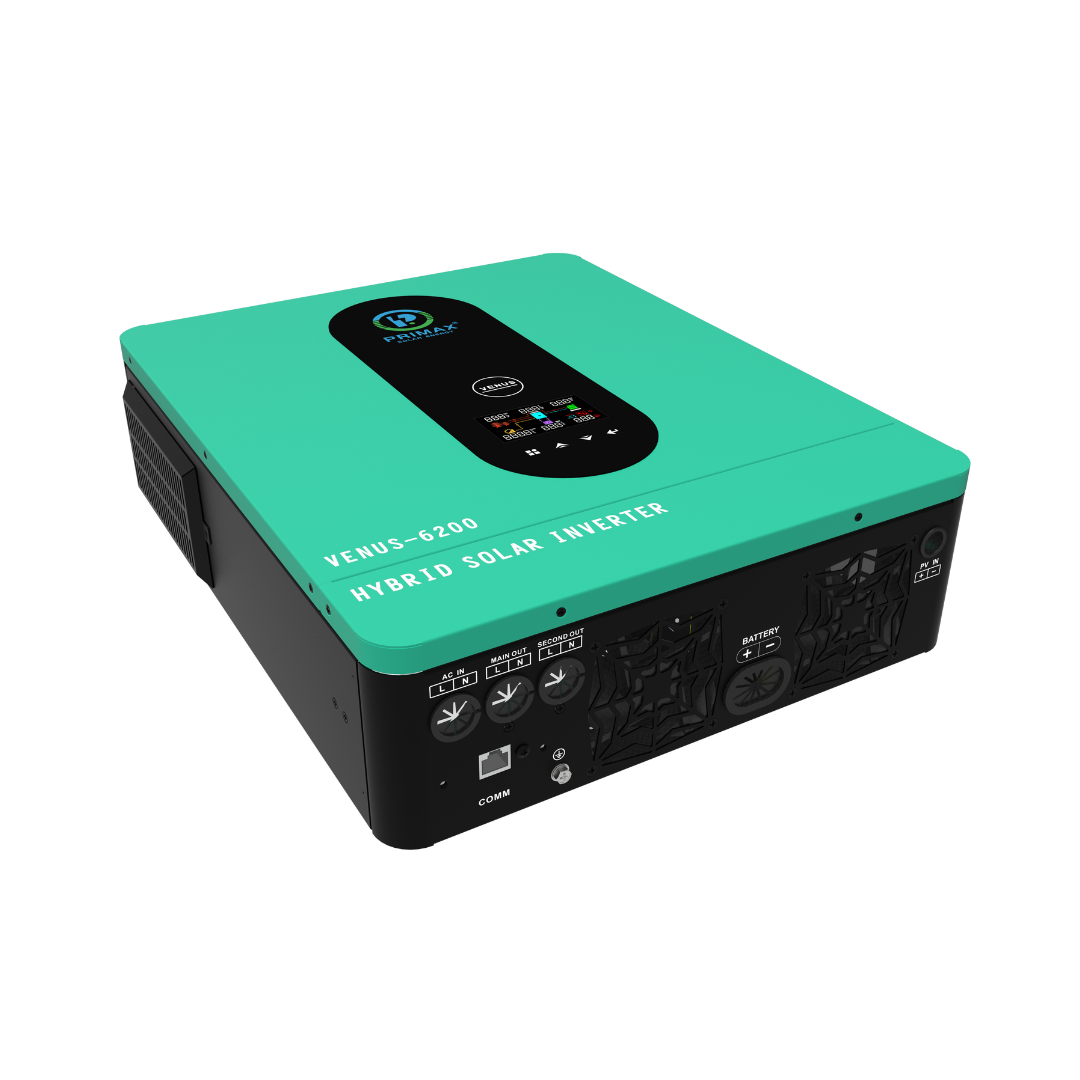

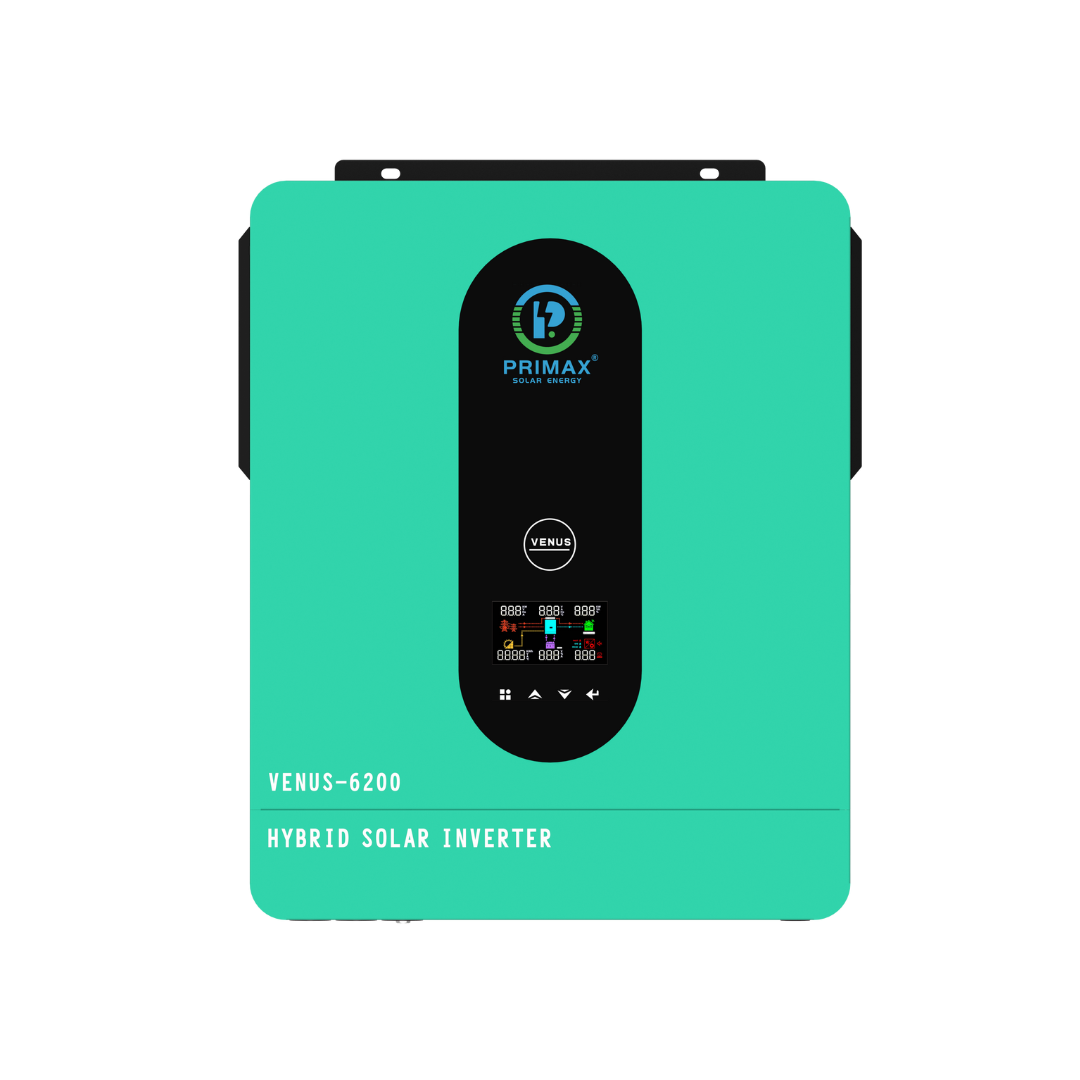

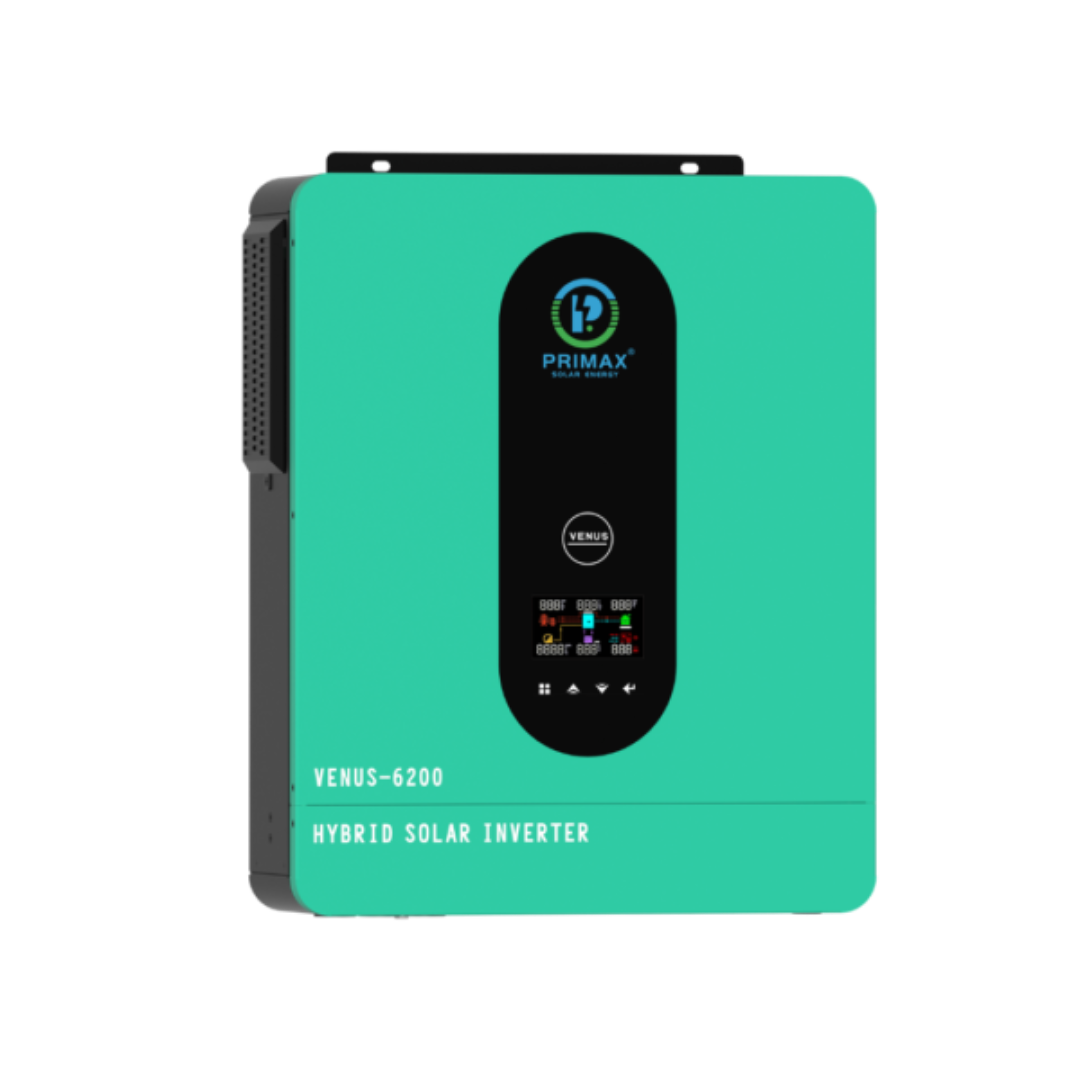

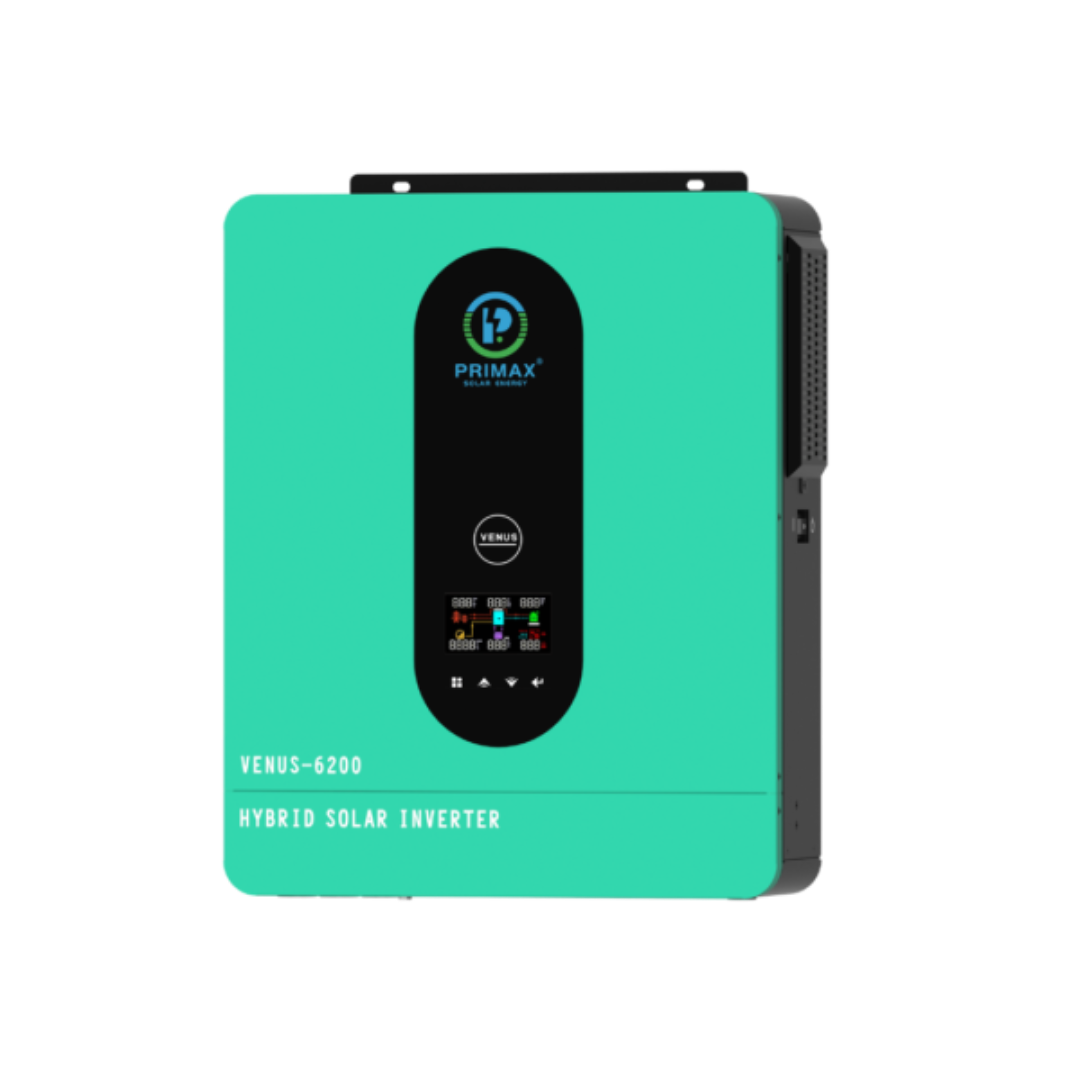

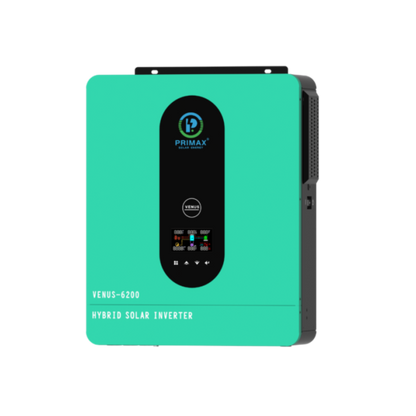

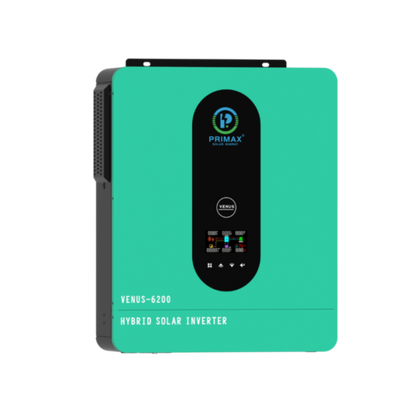

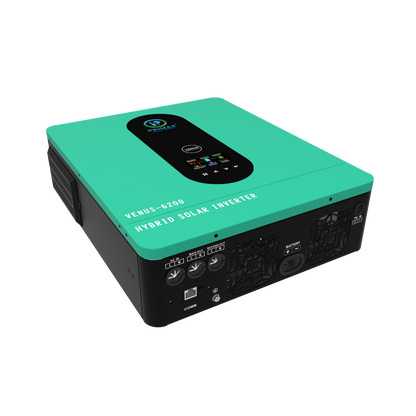

PRIMAX VENUS 6200 Hybrid Solar Inverter Dual Output 6200W 48V MPPT 2024 Model
A powerful and versatile hybrid solar inverter designed for both on-grid and off-grid applications. With dual outputs and advanced features, this inverter is ideal for residential or small commercial solar systems.
Key Features
- Pure Sine Wave Output: Provides clean, stable power suitable for sensitive equipment.
- Output Power Factor 1.0: Ensures efficient energy use and optimized system performance.
- Wi-Fi & GPRS: Available for mobile monitoring via IOS and Android apps, enabling remote system control and performance tracking.
- Battery-Free Operation: Can operate without a battery, offering flexibility for users who do not require storage.
- One-Key Restoration: Simple restoration to factory settings with just one button, ensuring easy troubleshooting.
- Lithium Battery Activation: Built-in automatic activation for lithium batteries for a hassle-free setup.
- 120A MPPT Solar Charge Controller: Maximum 6,200W solar power input with intelligent MPPT for efficient energy conversion.
- High PV Input Voltage Range: Operates within a voltage range of 60V ~ 500V DC, ensuring compatibility with a wide range of solar panels.
- Built-in Anti-Dust Kit: Protects the inverter in harsh environments, enhancing durability and reliability.
- Smart Battery Charge Design: Optimizes battery charging to extend lifespan and enhance overall system performance.
- Dual Output: Offers smart load management, supporting multiple systems or appliances simultaneously.
The PRIMAX VENUS 6200 Hybrid Solar Inverter is an excellent choice for users looking for a reliable, flexible solar power solution, combining high efficiency, smart features, and easy integration with both grid-connected and off-grid systems.
Download PDF
Specifications:
Phase | 1-Phase |
Maximum PV Input Power | 6500W |
Rated Output Power | 6200W |
Maximum Solar Charging Current | 120A |
GRID-TIE OPERATION | |
PV Input (DC) | |
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
Start-up Voltage/Initial Feeding Voltage | 60VDC/90VDC |
MPPT Voltage Range | 60VDC-450VDC |
Number of MPPT Trackers/Maximum Input Current | 1/22A |
GRID OUTPUT(AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 195.5-253VAC |
Nominal Output Current | 27.0A |
Power Factor | >0.99 |
Feed-in Grid Frequency Range | 49-51+1Hz |
EFFICIENCY | |
Maximum Conversion Efficiency(DC/AC) | 98% |
TWO-LOAD OUTPUT POWER | |
Full Load | 5000W |
Maximum Main Load | 5000W-10000W |
Maximum Second Load(Battery mode) | 1666W-3333W |
Main Load Cut-Off Voltage | 44VDC |
Main Load Return Voltage | 52VDC |
OFF-GRID OPERATION | |
AC INPUT | |
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC |
Maximum AC Input Current | 50A |
Nominal operating frequency | 50/60Hz |
Surge Power | 10000W |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Waveform | Pure sine wave |
Efficiency(DC to AC) | 94% |
BATTERY & CHARGER | |
Nominal DC Voltage | 48VDC |
Maximum Solar Charging Current | 120A |
Maximum AC Charging Current | 100A |
GENERAL | |
PHYSICAL | |
Dimension, D X W X H(mm) | 420*310*110 |
Cartoon Dimension, D X W X H(mm) | 500*415*180 |
Net Weight(kgs) | 9.8 |
Gross Weight(kgs) | 11 |
INTERFACE | |
Communication Port | RS232/WIFI/GPRS/LITHIUM |
BATTERY |
