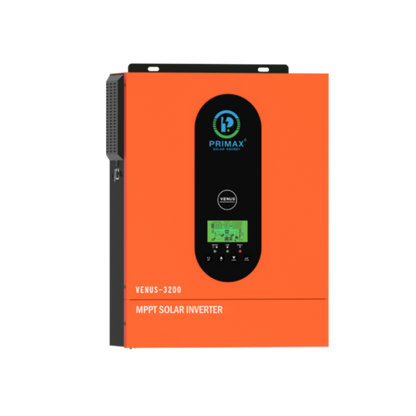

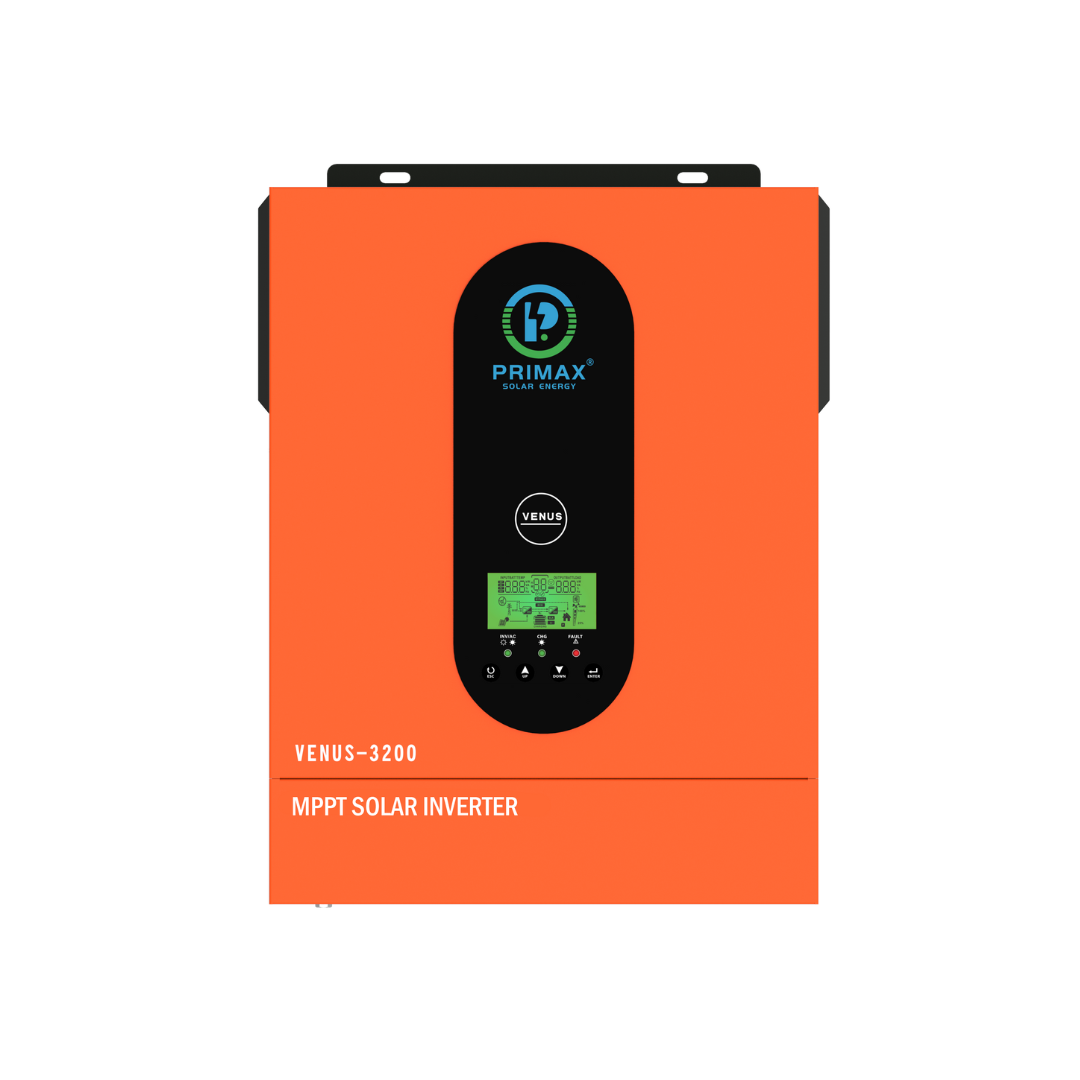

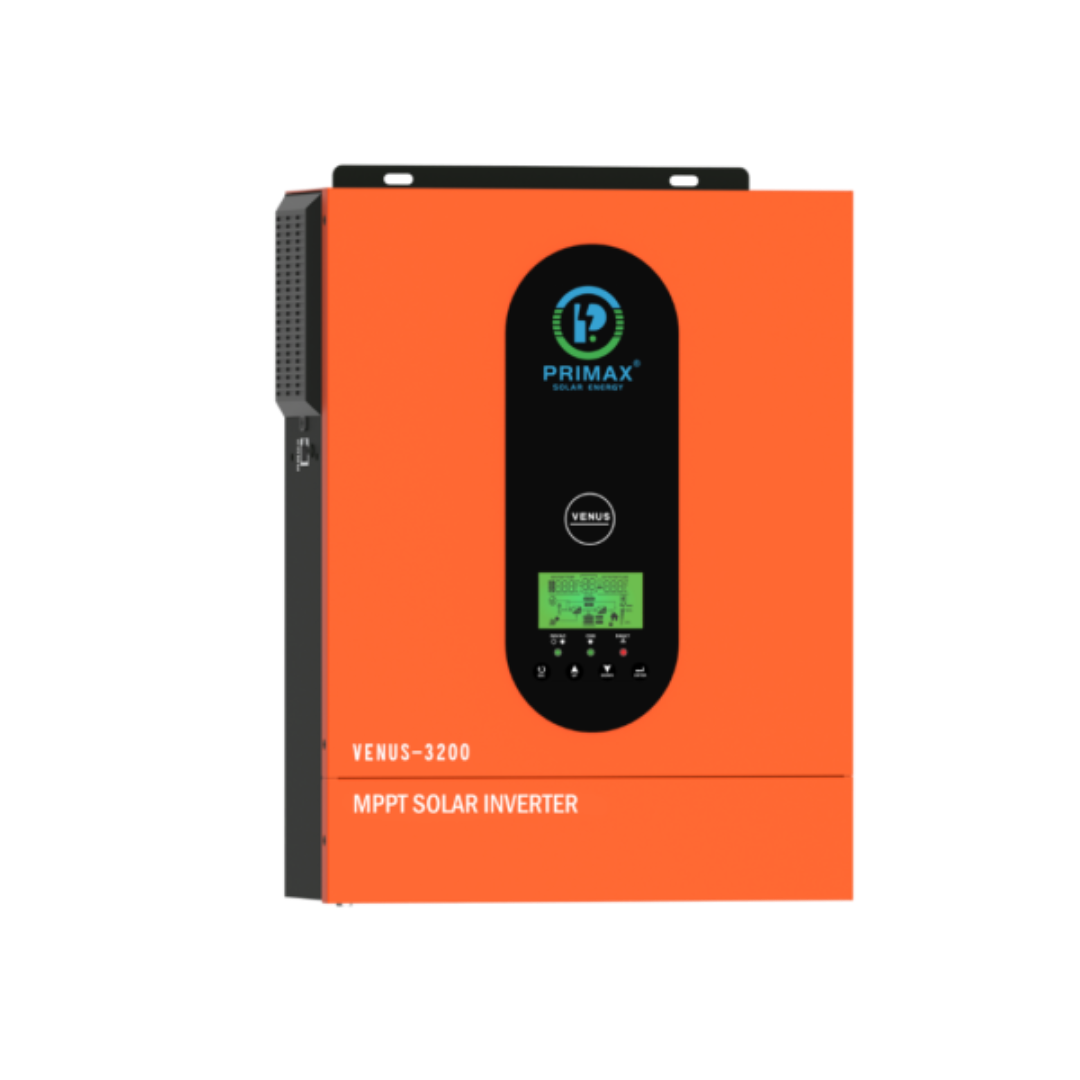

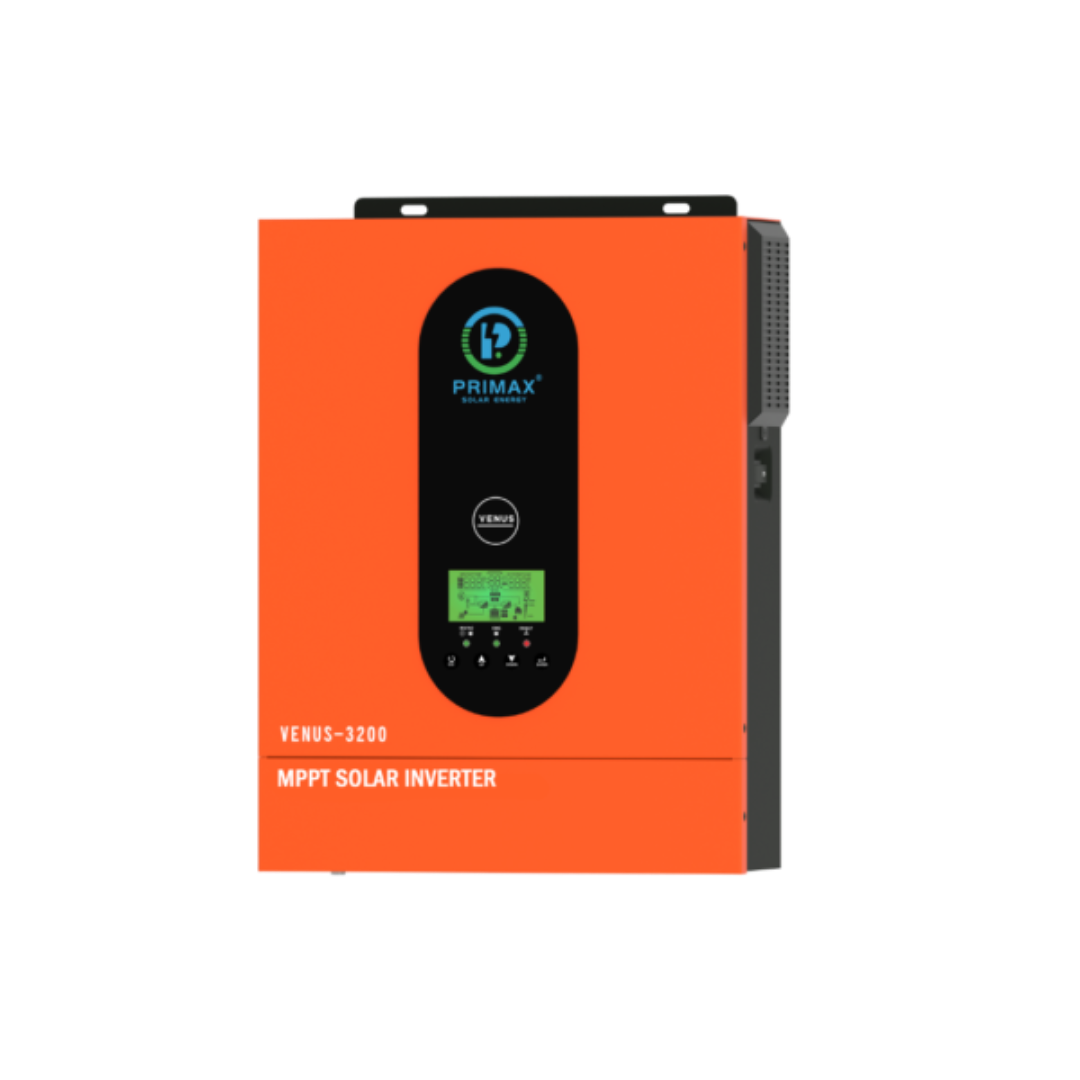

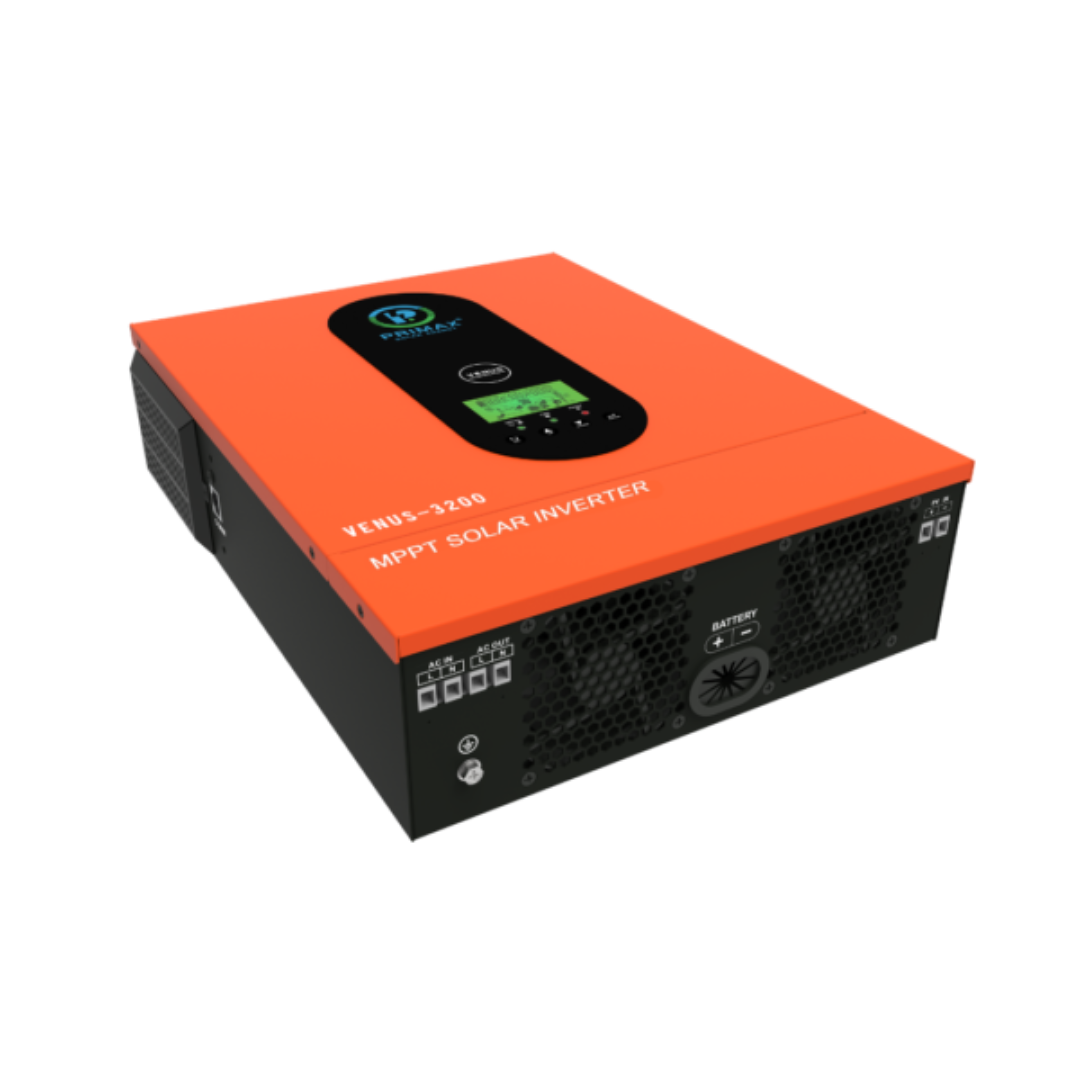

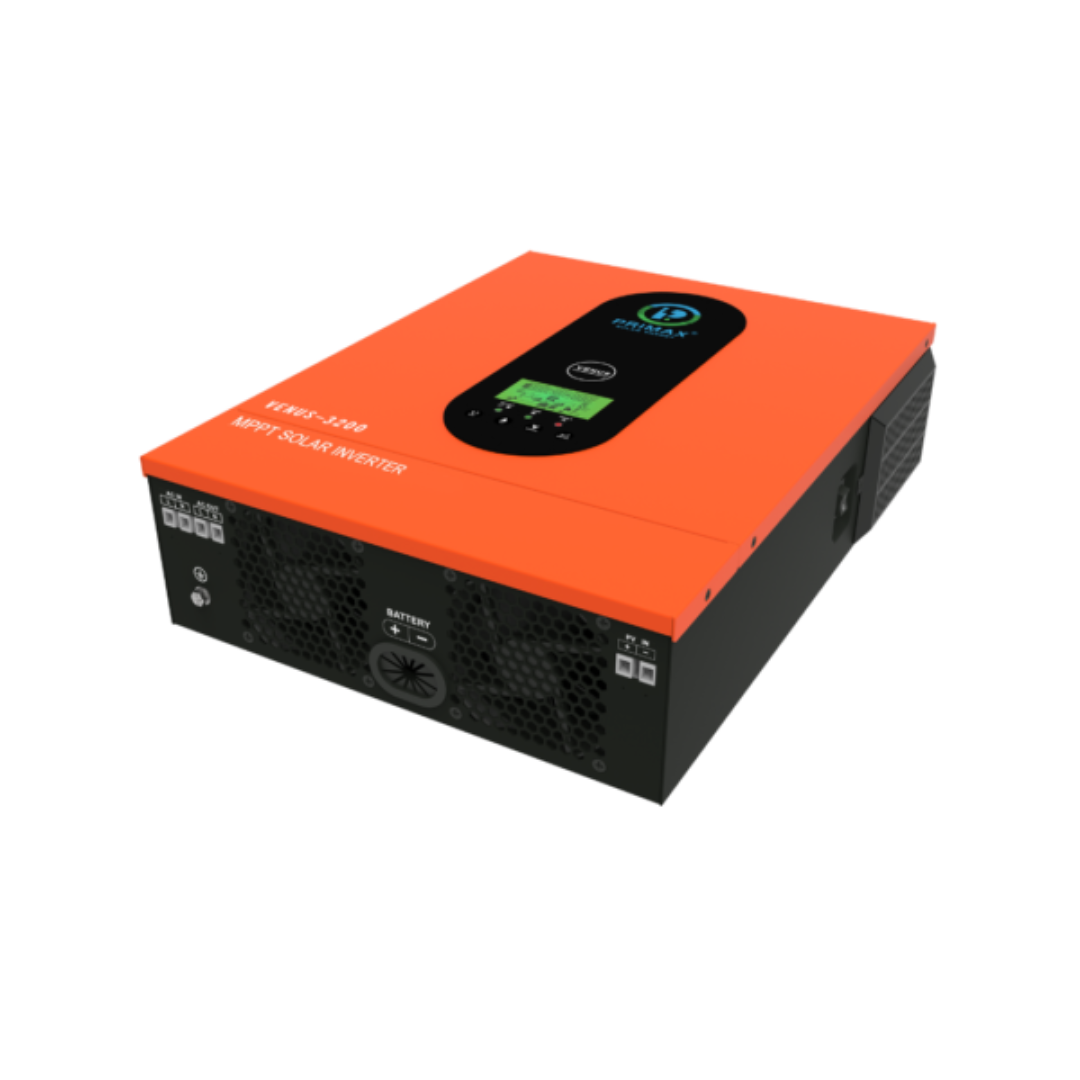

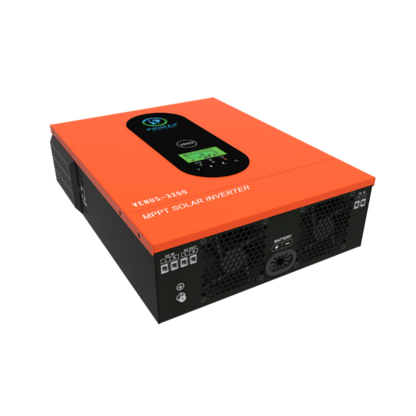

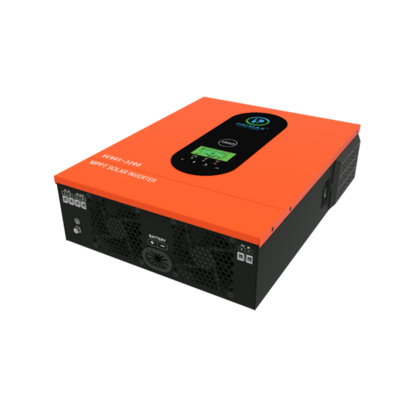

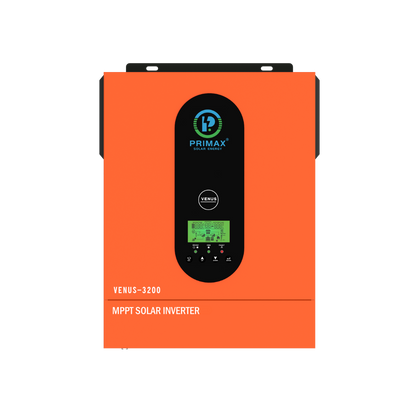

PRIMAX VENUS 3200 Off Grid Solar Inverter 3.2KW 24V MPPT
PRIMAX VENUS 3200 Off Grid Solar Inverter 3.2KW 24V MPPT
Regular price
Rs.74,999.00 PKR
Regular price
Rs.95,000.00 PKR
Sale price
Rs.74,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.
PRIMAX VENUS 3200 Off Grid Solar Inverter 3200W 24V MPPT
A reliable and compact hybrid solar inverter designed for small-scale off-grid or grid-connected solar systems. This model offers efficient power management and integration with both lithium batteries and solar panels for enhanced energy use.
Key Features
- Pure Sine Wave Output: Delivers stable, high-quality power ideal for sensitive equipment and appliances.
- Wi-Fi & GPRS: Available for mobile monitoring via iOS and Android apps, providing real-time tracking and control of your system.
- 80A MPPT Solar Charge Controller: Built-in MPPT controller for efficient solar energy conversion, ensuring maximum power generation.
- Anti-Dust Kit: Built-in protection for harsh environments, improving durability and system longevity.
- Smart Battery Charger Design: Optimizes battery life through intelligent charging, extending battery lifespan and enhancing performance.
- Customizable Options: Meets a variety of customized system requirements for more flexibility in installation.
- Lithium Battery Compatibility: Supports integration with lithium batteries for reliable energy storage.
- Solar Power Priority: Directly powers the load from solar energy first, ensuring optimal use of available renewable energy.
The PRIMAX VENUS 3200 Off Grid Solar Inverter is a versatile and efficient solution for small residential or commercial solar installations, providing high-quality power and intelligent energy management.
Download PDF
| AC INPUT | 3200VA/3000W |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(For PC) |
| 90-280VAC(For Home Appliances | |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| AC OUTPUT | |
| AC Voltage Regulation | 230VAC+5% |
| Surge Power | 6400VA |
| Efficiency(Peak)PV to INV | 98% |
| Efficiency(Peak)Battery to INV | 94% |
| Transfer Time | 10ms (For PC);20ms(For Home |
| Appliances) | |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| Maximum AC Charge Current | 60A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 3000W |
| MPPT Range@ Operating Voltage | 30-400VDC |
| Maximum PV Array Open Circuit Voltage | 400VDC |
| Maximum Charging Current | 80A |
| PHYSICAL | |
| Dimension D*W*H(mm) | 357*273*95 |
| Net Weight(kgs) | 5 |
| Communication interface | RS232/GPRS/WIFI |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non Condensing) |
| Operating Temperature | -10-50oC |
