PRIMAX GALAXY PV2500+ Max Off GRID Solar Inverter 1.5KW With 2500W MPPT Solar Charge Controller
PRIMAX GALAXY PV2500+ Max Off GRID Solar Inverter 1.5KW With 2500W MPPT Solar Charge Controller
Regular price
Rs.66,999.00 PKR
Regular price
Rs.85,000.00 PKR
Sale price
Rs.66,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.

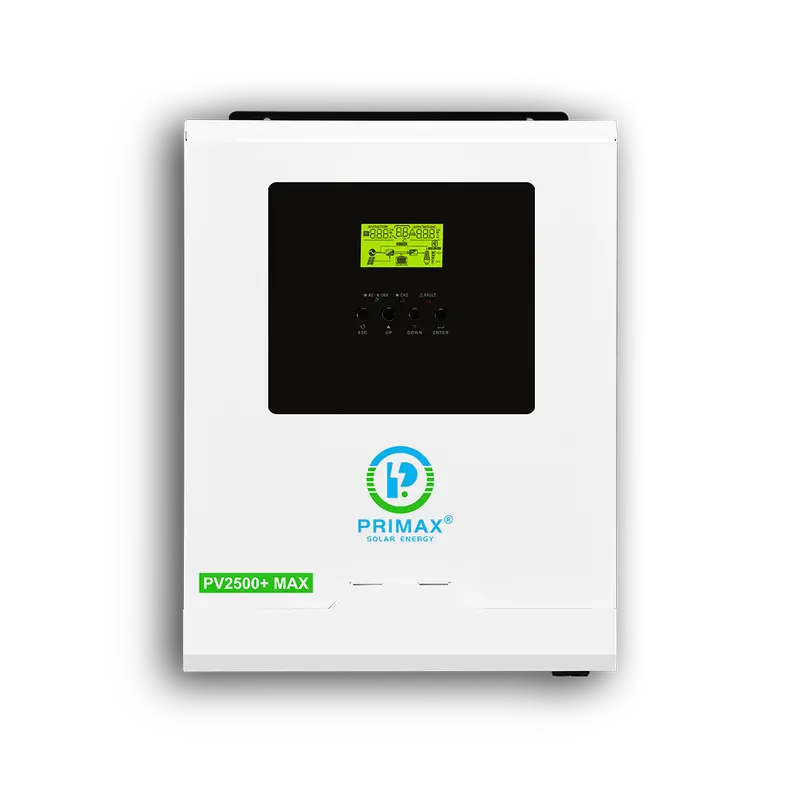

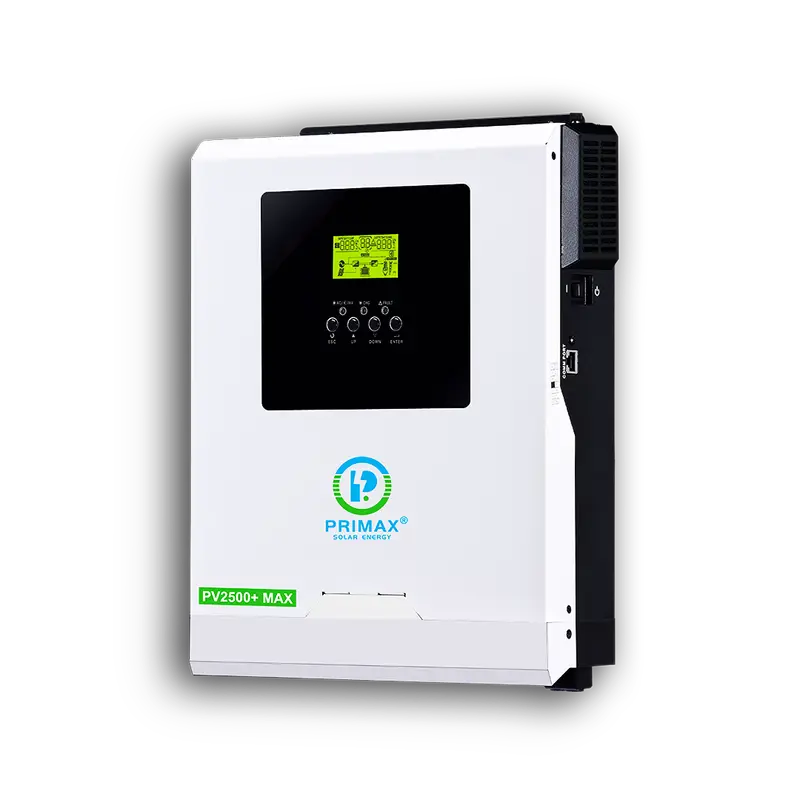

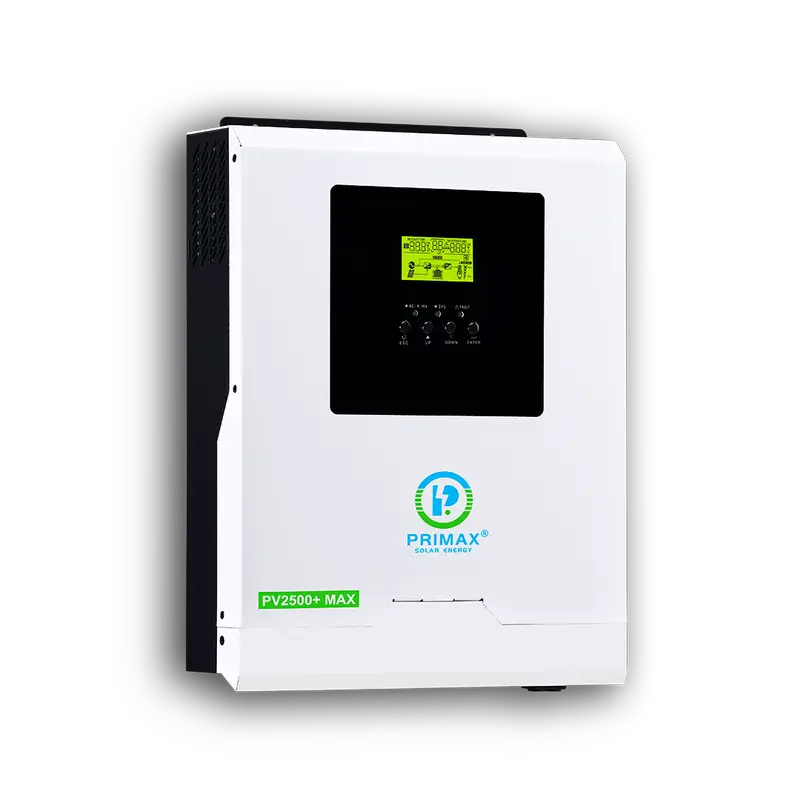

PRIMAX GALAXY PV2500+ Max Off-Grid Solar Inverter 1.5KW
A compact and efficient off-grid solar inverter, perfect for small-scale applications. Designed for battery storage systems, it provides reliable power with advanced features to optimize performance.
Key Features
- Pure Sine Wave Output: Delivers clean and stable power for sensitive appliances.
- Wide PV Input Voltage Range: Operates between 30VDC ~ 300VDC, ensuring compatibility with various solar panels.
- Maximum PV Input: Handles up to 2,500W for efficient solar energy conversion.
- Battery Independent Design: Can operate with or without a battery, providing flexibility in system setup.
- Battery Equalization Function: Enhances battery performance and extends the lifespan by balancing charge across cells.
- Maximum Charging Current: Supports up to 80A for faster, more efficient battery charging.
- Durable Build: Built-in anti-dust kit ensures longevity and reliable performance in harsh environments.
- Maximum AC Output: Delivers 1,500W with both PV and battery or 1,200W with battery-only operation, suitable for off-grid use.
- BMS Communication Port: Reserved port for Battery Management System (BMS) integration to manage battery health and performance.
The PRIMAX GALAXY PV2500+ is an ideal choice for off-grid solar power solutions, providing efficient energy conversion and reliable backup power.
| RATED POWER | 1600VA/1600W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-5% |
| Surge Power | 2400VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers)
20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 12V DC |
| Floating Charge Voltage | 13.5V DC |
| Overcharge Protection | 16V DC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 350V DC |
| Maximum PV Array Power | 2500W |
| MPPT Range@ Operating Voltage | 30-300 VDC (30V-60V with battery) |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
| PHYSICAL | |
| Dimension D*W*H(mm)
Net Weight (Kgs) |
90 x 288 x 357
6.5 |
| Communication Interface | RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
