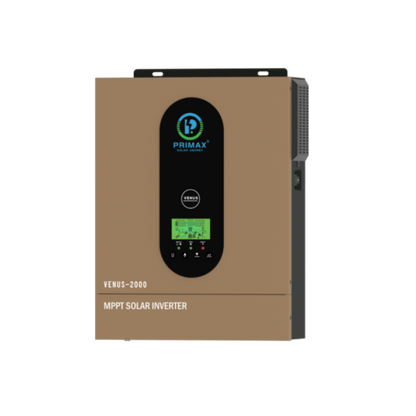

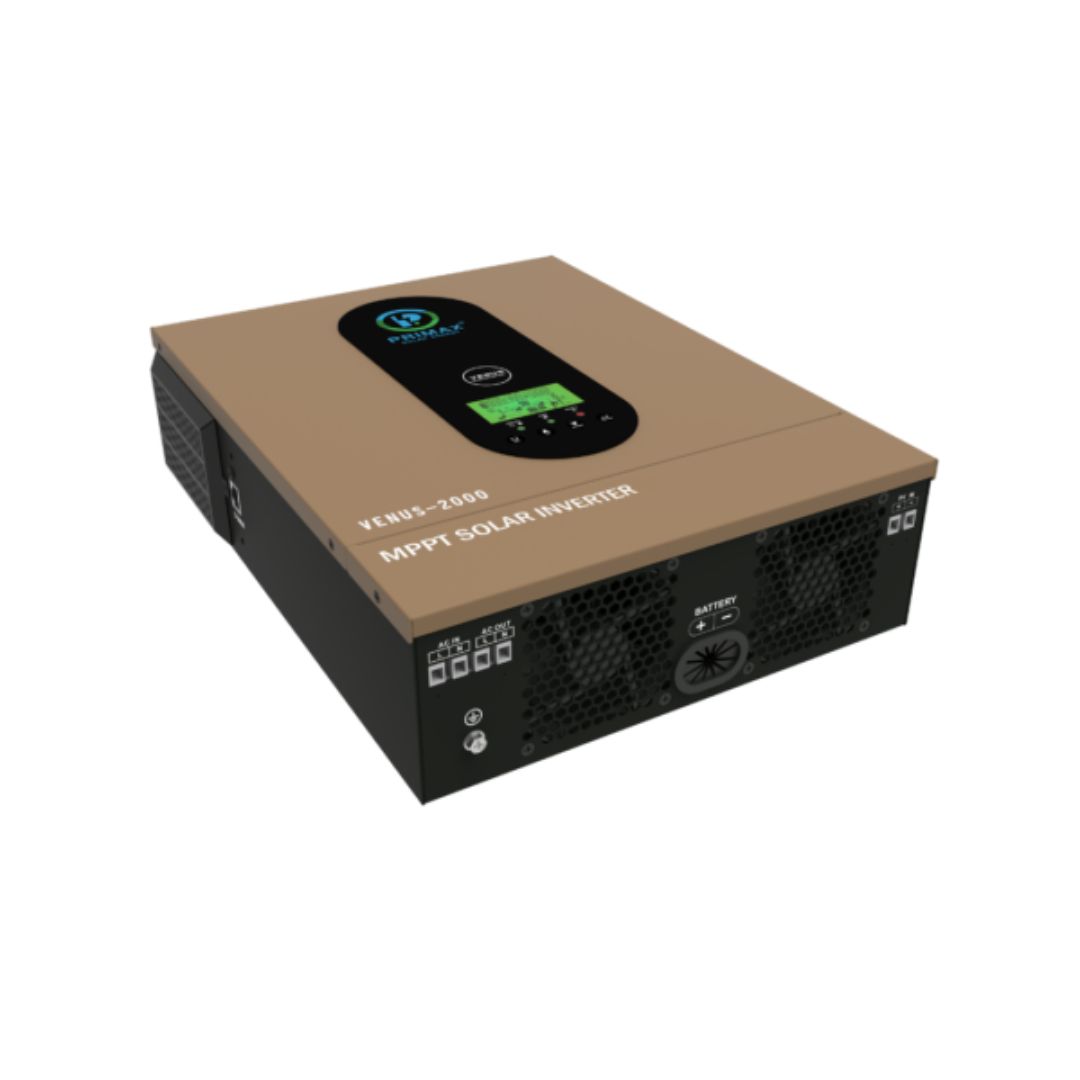

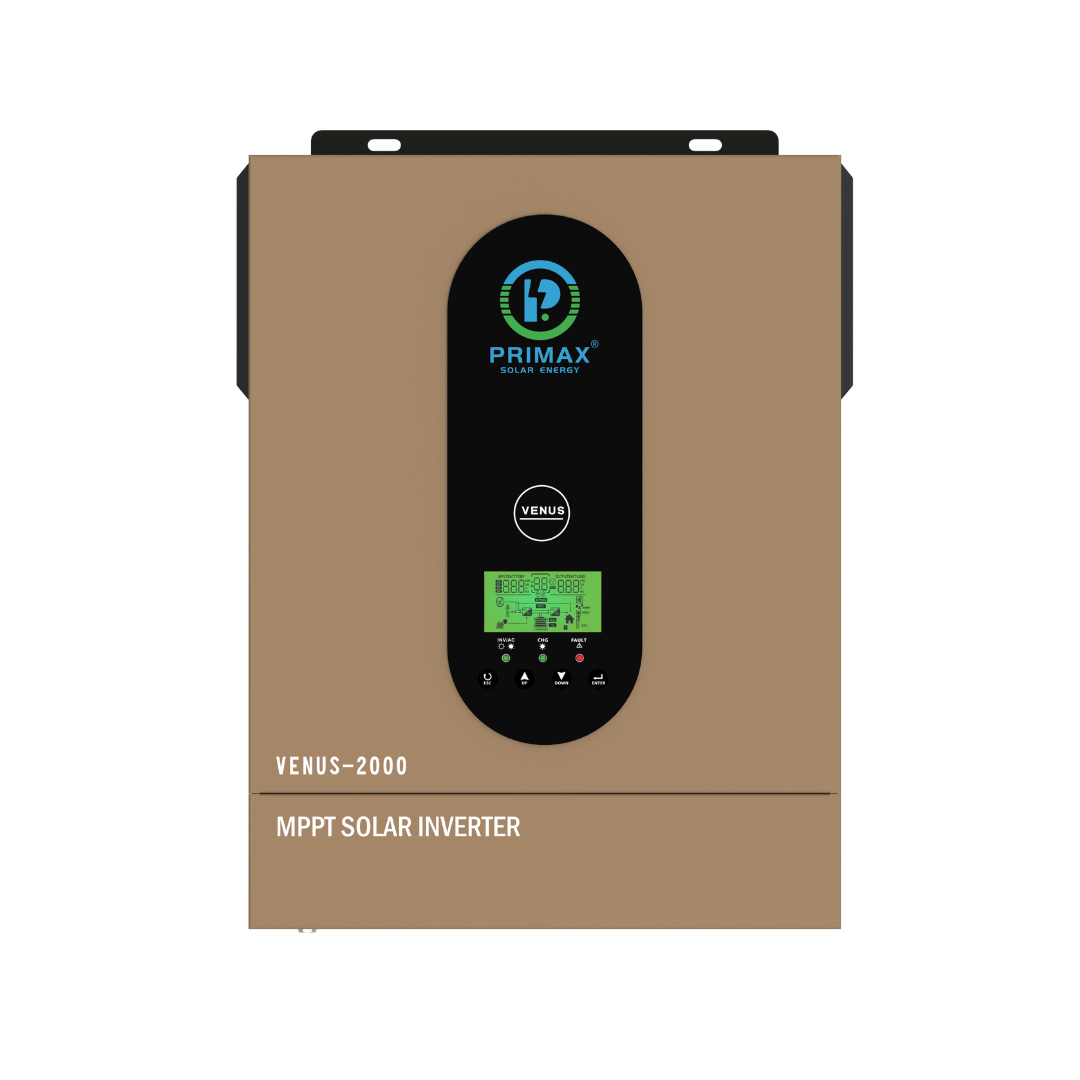

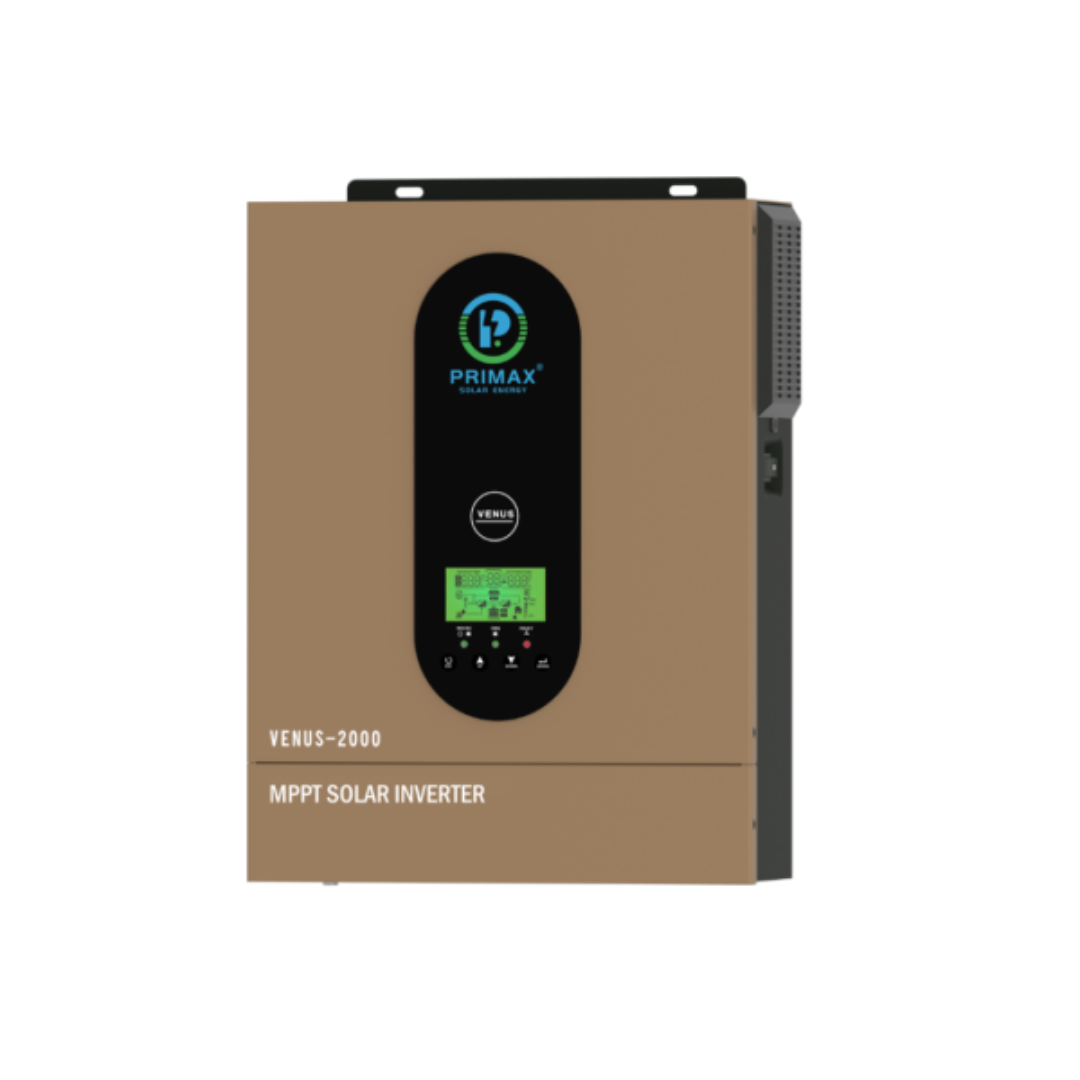

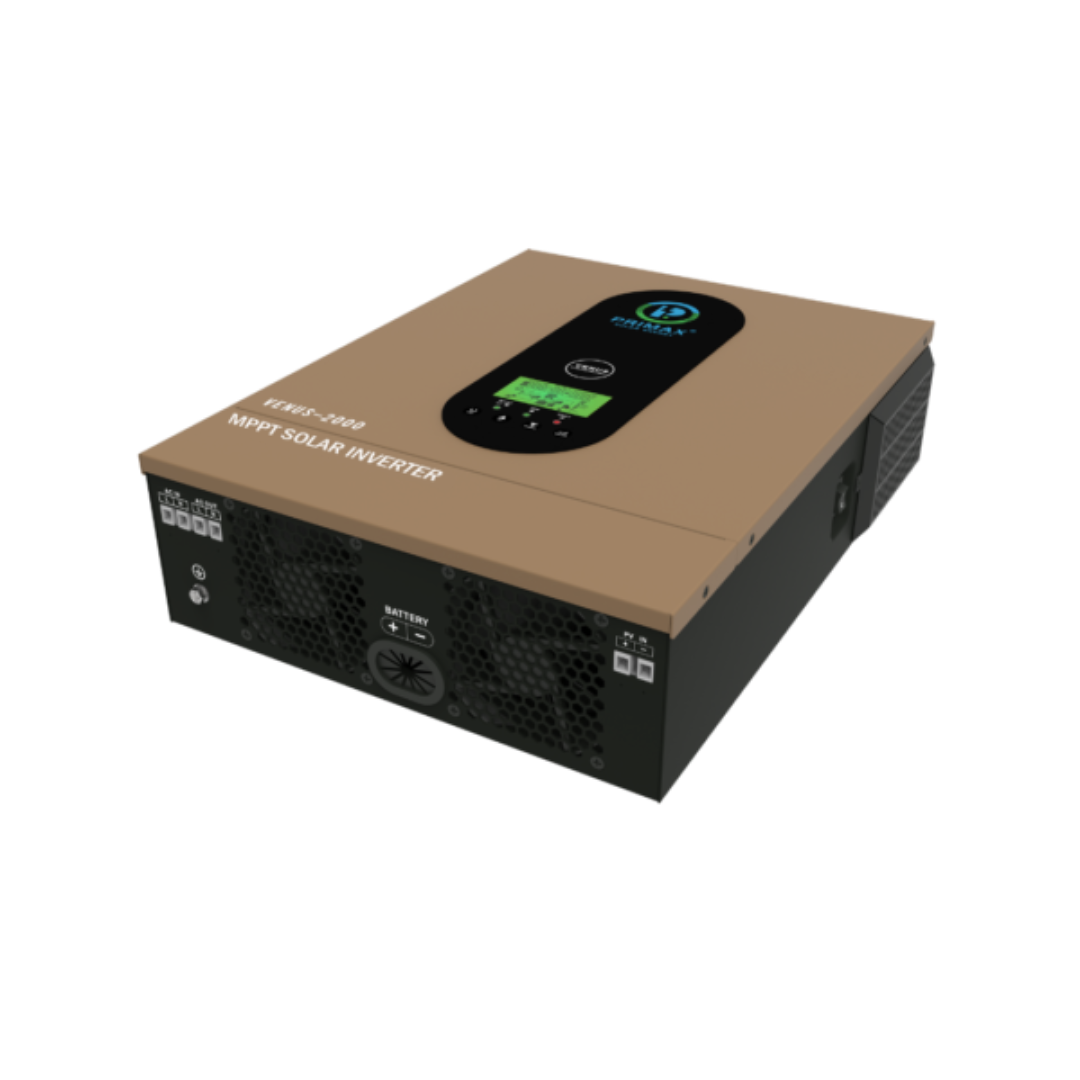

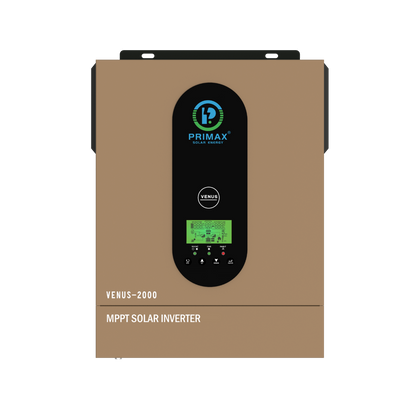

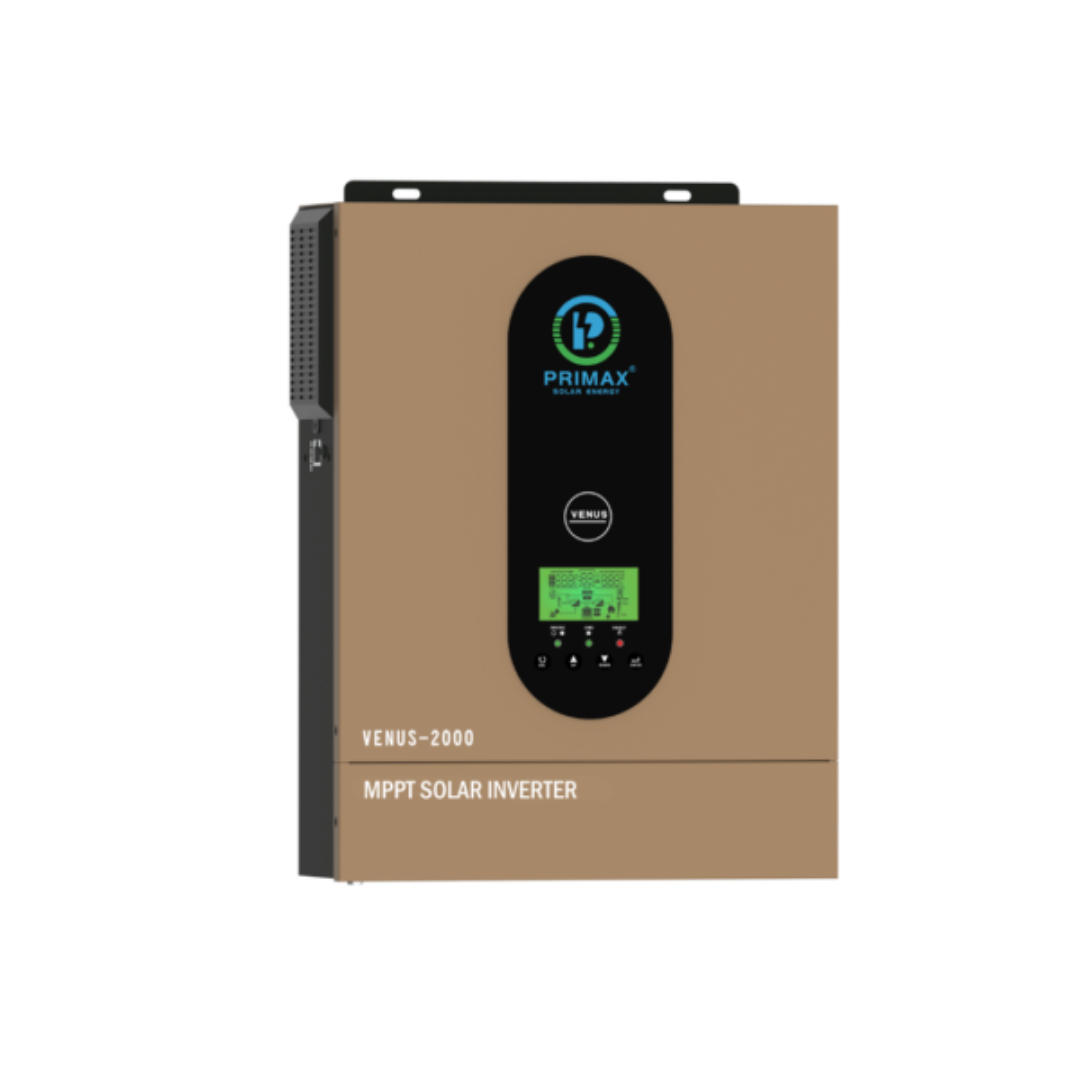

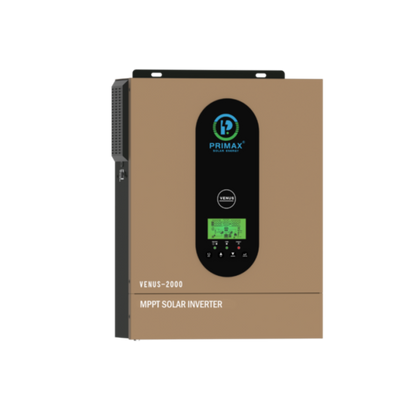

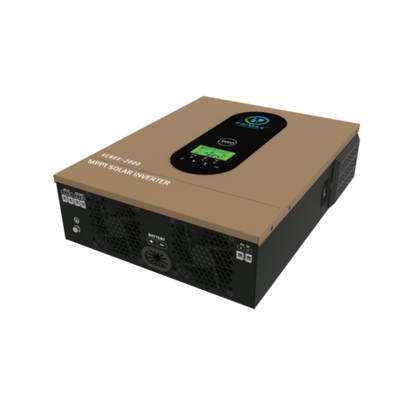

PRIMAX VENUS 2000 Off grid Solar Inverter 12V 1.6KW with 2000W MPPT Solar Charge Controller
PRIMAX VENUS 2000 Off grid Solar Inverter 12V 1.6KW with 2000W MPPT Solar Charge Controller
Regular price
Rs.56,999.00 PKR
Regular price
Rs.75,000.00 PKR
Sale price
Rs.56,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.
PRIMAX VENUS 2000 Off-Grid Solar Inverter 12V 1.6KW with 2000W MPPT Solar Charge Controller
The PRIMAX VENUS 2000 is a robust off-grid solar inverter designed for small-scale solar systems. With its pure sine wave output and advanced MPPT solar charging, it ensures efficient and reliable power for homes, cabins, or remote applications. The inverter is optimized for use with 12V systems, providing up to 1.6KW of output power.
Key Features
- Pure Sine Wave Solar Inverter: Delivers clean and stable electricity, making it suitable for sensitive electronics and appliances that require a steady power supply.
- WIFI & GPRS Support (iOS/Android): Allows remote monitoring and control through a mobile app, providing easy access to system performance and settings.
- Built-in 80A MPPT Solar Charger: Maximizes solar energy harvesting with MPPT technology, ensuring optimal battery charging efficiency and overall system performance.
- High PV Input Voltage Range (30V ~ 400V DC): Offers flexibility in solar panel selection, providing compatibility with a wide range of PV arrays for different installation configurations.
- Built-in Anti-Dust Kit: Protects internal components from dust and debris, making the inverter suitable for installation in harsh environments.
- Smart Battery Charge Design: Extends battery life by intelligently managing charging cycles, optimizing battery health and performance over time.
- Compatible with Lithium Batteries: Supports modern, high-performance lithium batteries, providing improved efficiency and lifespan compared to traditional lead-acid batteries.
- Solar Energy Direct to Load: Prioritizes providing solar energy directly to connected loads, reducing dependency on battery storage and maximizing solar power utilization.
The PRIMAX VENUS 2000 is ideal for off-grid applications where reliability and efficiency are essential, offering smart charging and monitoring features for a hassle-free solar experience.
Download PDF
| RATED POWER | 2000VA/1600W |
| AC INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170-280VAC(For PC) |
| 90-280VAC(For Home Appliances) | |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| AC OUTPUT | |
| AC Voltage Regulation | 230VAC+5% |
| Surge Power | 4000VA |
| Efficiency(Peak)PV to INV | 98% |
| Efficiency(Peak)Battery to INV | 94% |
| Transfer Time | 10ms (For PC);20ms(For Home |
| Appliances) | |
| BATTERY & AC CHARGER | |
| Battery Voltage | 12VDC |
| Floating Charge Voltage | 13.5VDC |
| Overcharge Protection | 16VDC |
| Maximum AC Charge Current | 60A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 2000W |
| MPPT Range@ Operating Voltage | 30-400VDC |
| Maximum PV Array Open Circuit Voltage | 400VDC |
| Maximum Charging Current | 80A |
| PHYSICAL | |
| Dimension D*W*H(mm) | 357*273*95 |
| Net Weight(kgs) | 4 |
| Communication interface | RS232/GPRS/WIFI |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity |
| (Non-condensing) | |
| Operating Temperature | -10-50oC |
