Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh by SUNWODA
Luminey MonaWall SE5 LiFePO4 Lithium Battery 5kWh by SUNWODA
Regular price
Rs.295,000.00 PKR
Regular price
Rs.315,000.00 PKR
Sale price
Rs.295,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.

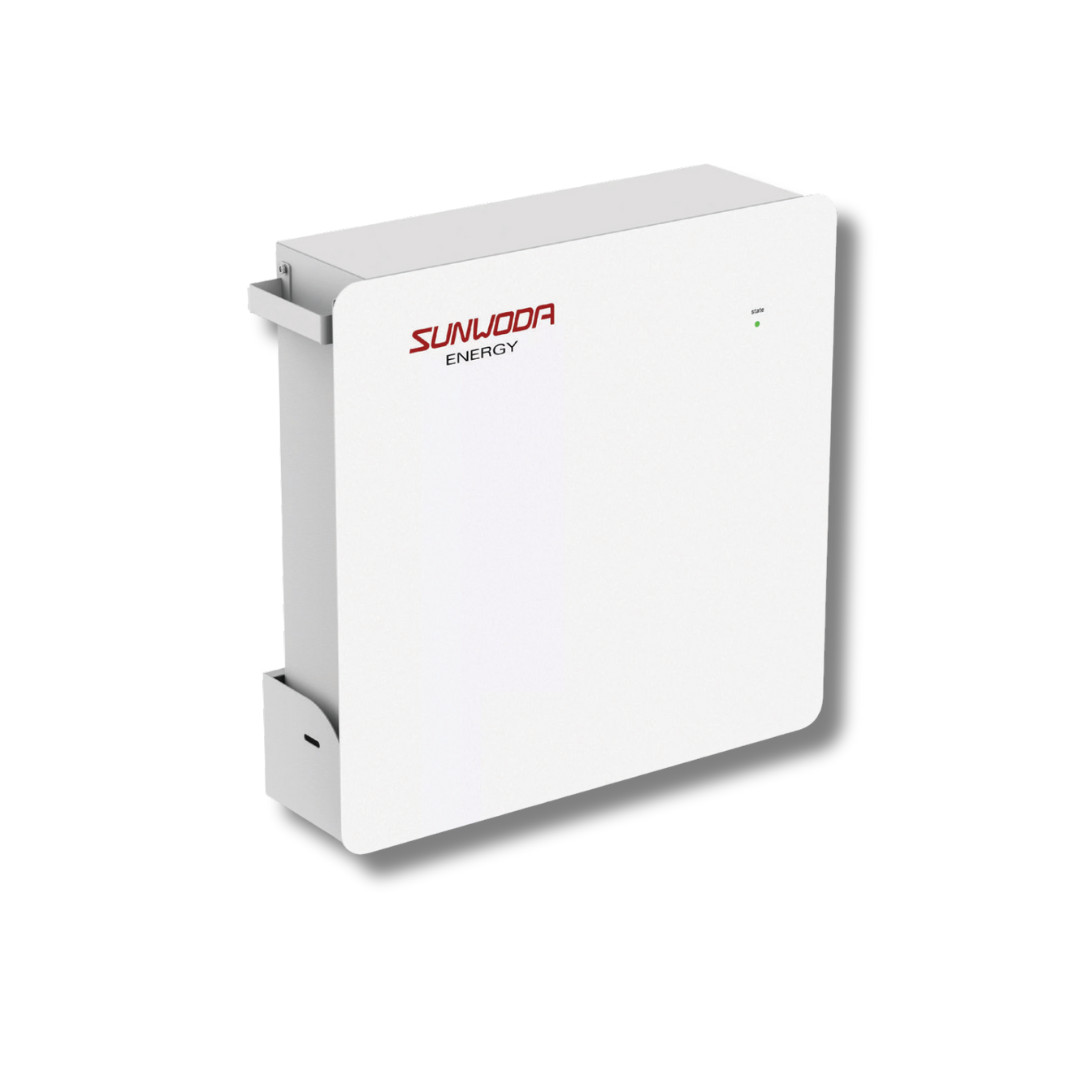

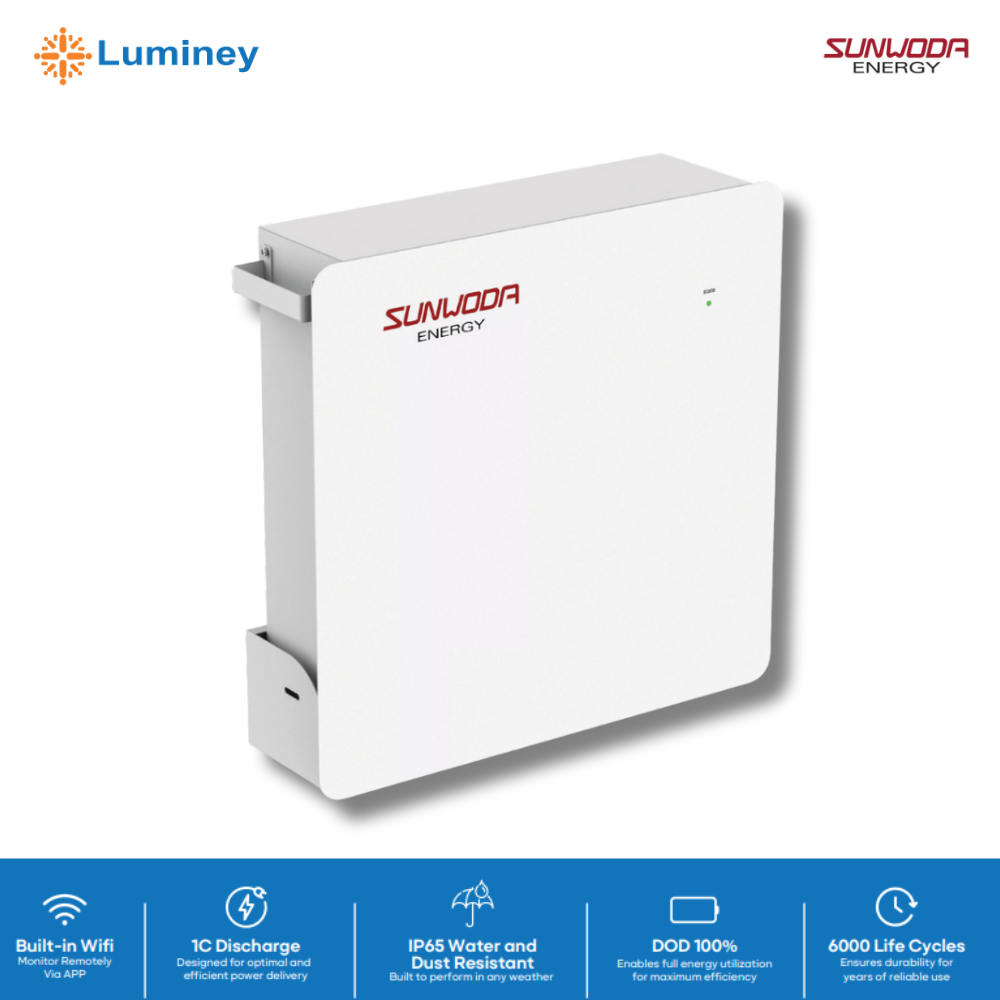

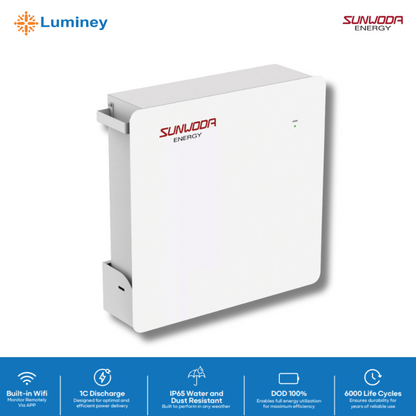

Luminey MonaWall SE5 Lithium Battery (5kWh)
The Luminey MonaWall SE5 is a high-performance LiFePO4 battery designed for residential and commercial energy storage. With 6000 life cycles, 100% Depth of Discharge (DOD), and built-in WIFI monitoring, it ensures efficient and reliable energy storage. Its IP65 rating makes it suitable for both indoor and outdoor installation.
Key Features
- 1C Discharge Rate – Provides optimal and efficient power delivery.
- Built-in WIFI – Enables remote monitoring via a mobile app.
- 100% Depth of Discharge (DOD) – Allows full energy utilization for maximum efficiency.
- 6000 Life Cycles – Ensures long-term durability and performance.
- IP65 Water & Dust Resistance – Suitable for all weather conditions.
- Quick Plug & Unplug DC Terminal – Simplifies installation and maintenance.
- Anti-Expansion Design & Built-in Heater – Enhances battery lifespan and performance in various environments.

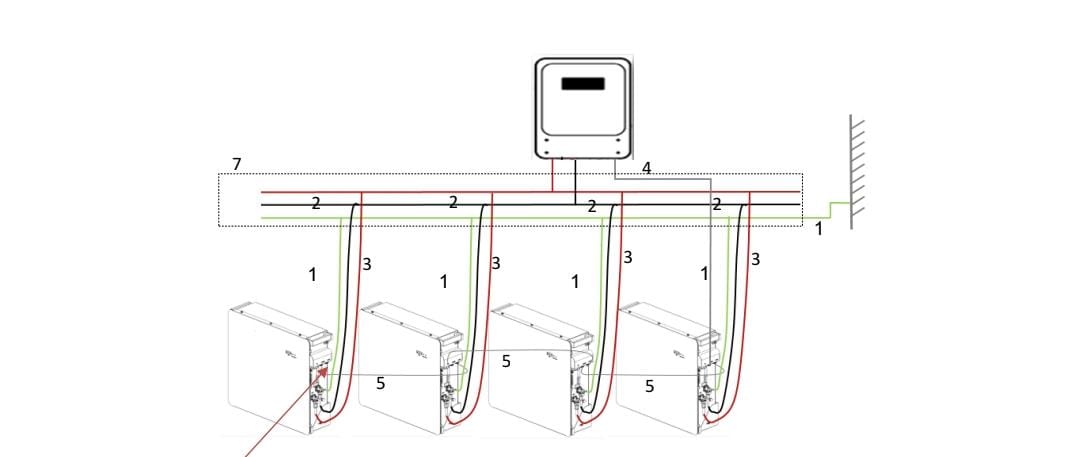

- Scalable – Supports up to 16 batteries in parallel, reaching a total capacity of 80kWh.
- 7-Year Warranty – Standard 6-year warranty, extendable to 7 years when connected to WIFI.

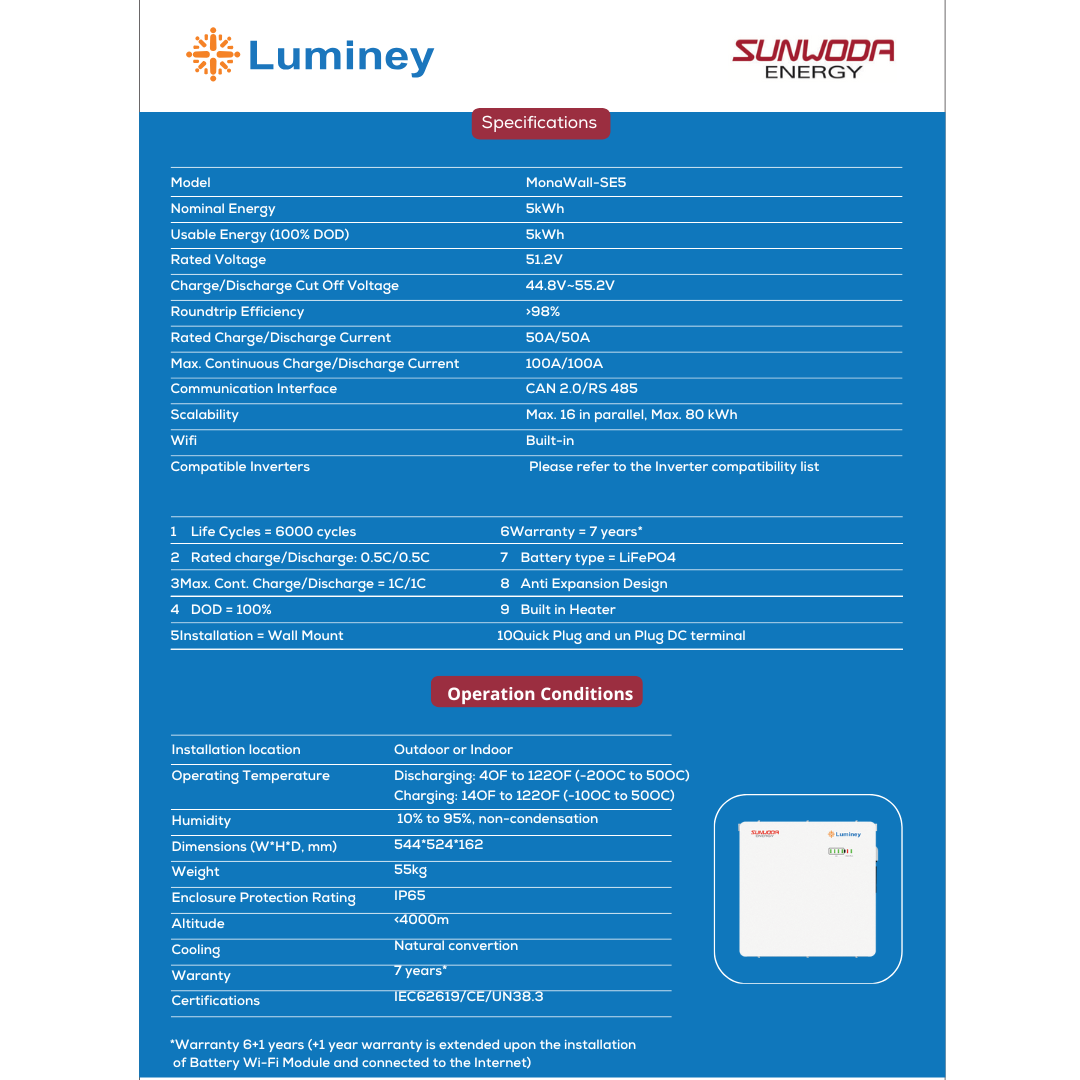

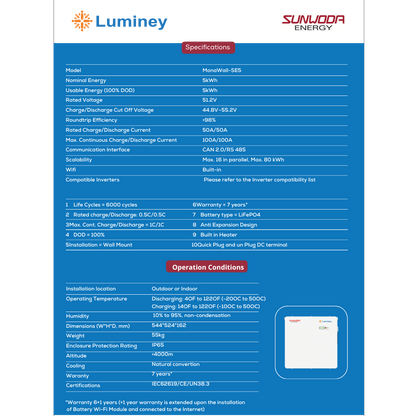

Specifications
| Specification | Details |
|---|---|
| Model | MonaWall SE5 |
| Nominal Energy | 5kWh |
| Usable Energy (100% DOD) | 5kWh |
| Rated Voltage | 51.2V |
| Charge/Discharge Voltage | 44.8V ~ 55.2V |
| Roundtrip Efficiency | >98% |
| Rated Charge/Discharge Current | 50A / 50A |
| Max. Continuous Charge/Discharge | 100A / 100A |
| Communication Interface | CAN 2.0 / RS 485 |
| Scalability | Max. 16 in parallel (80kWh) |
| Installation | Wall-mounted |
| Weight | 55kg |
| Dimensions (WHD) | 544 × 524 × 162 mm |
| Operating Temperature | Charging: -10°C to 50°CDischarging: -20°C to 50°C |
| Humidity | 10% to 95%, non-condensing |
| Altitude Limit | <4000m |
| Cooling | Natural convection |
| Enclosure Protection | IP65 (water & dust resistant) |
| Certifications | IEC62619 / CE / UN38.3 |
| Compatible Inverters | Refer to compatibility list |
| Warranty | 6+1 years (with WiFi module) |
The Luminey MonaWall SE5 is a robust energy storage solution, offering high efficiency, long life, and smart monitoring capabilities, making it ideal for off-grid and hybrid solar systems.
