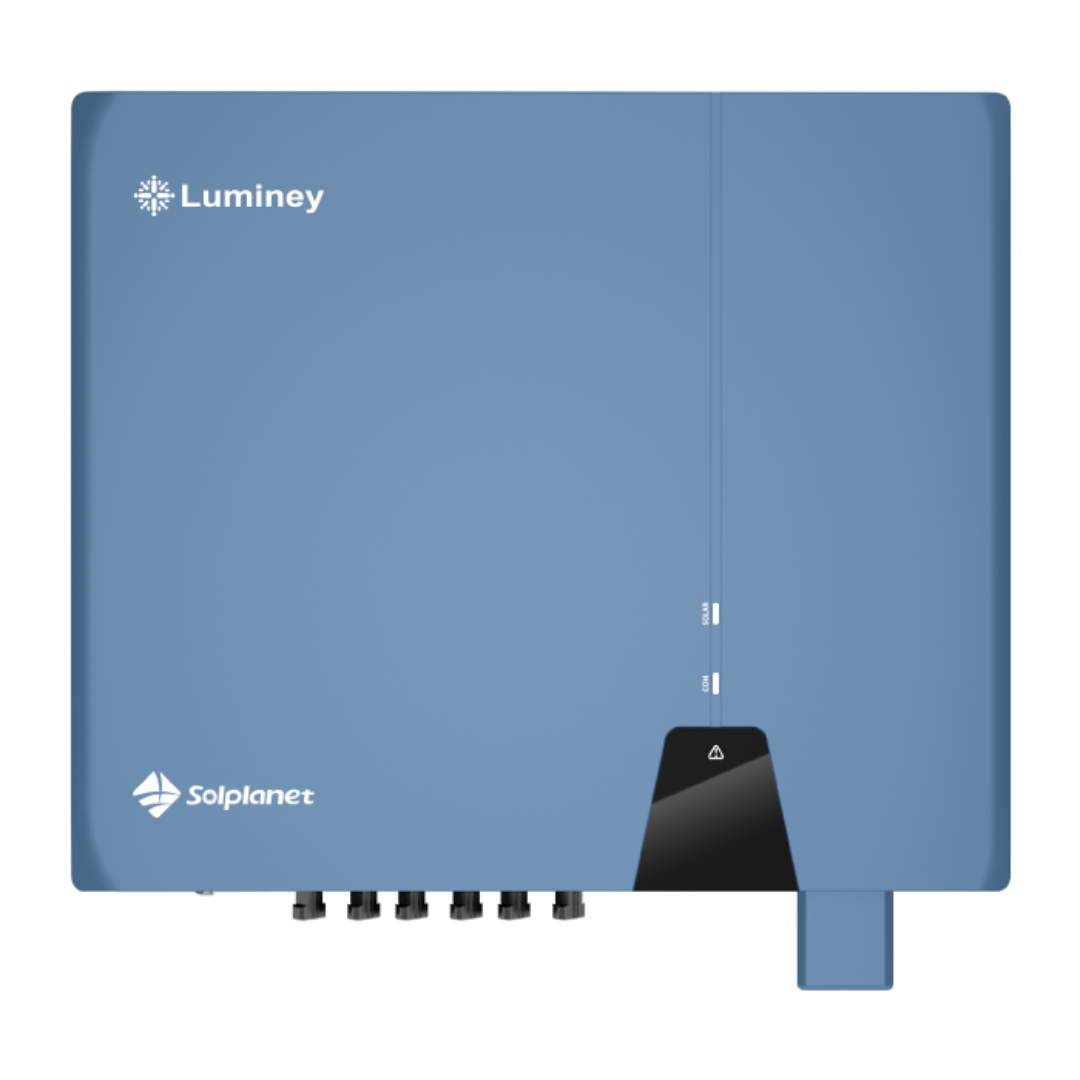

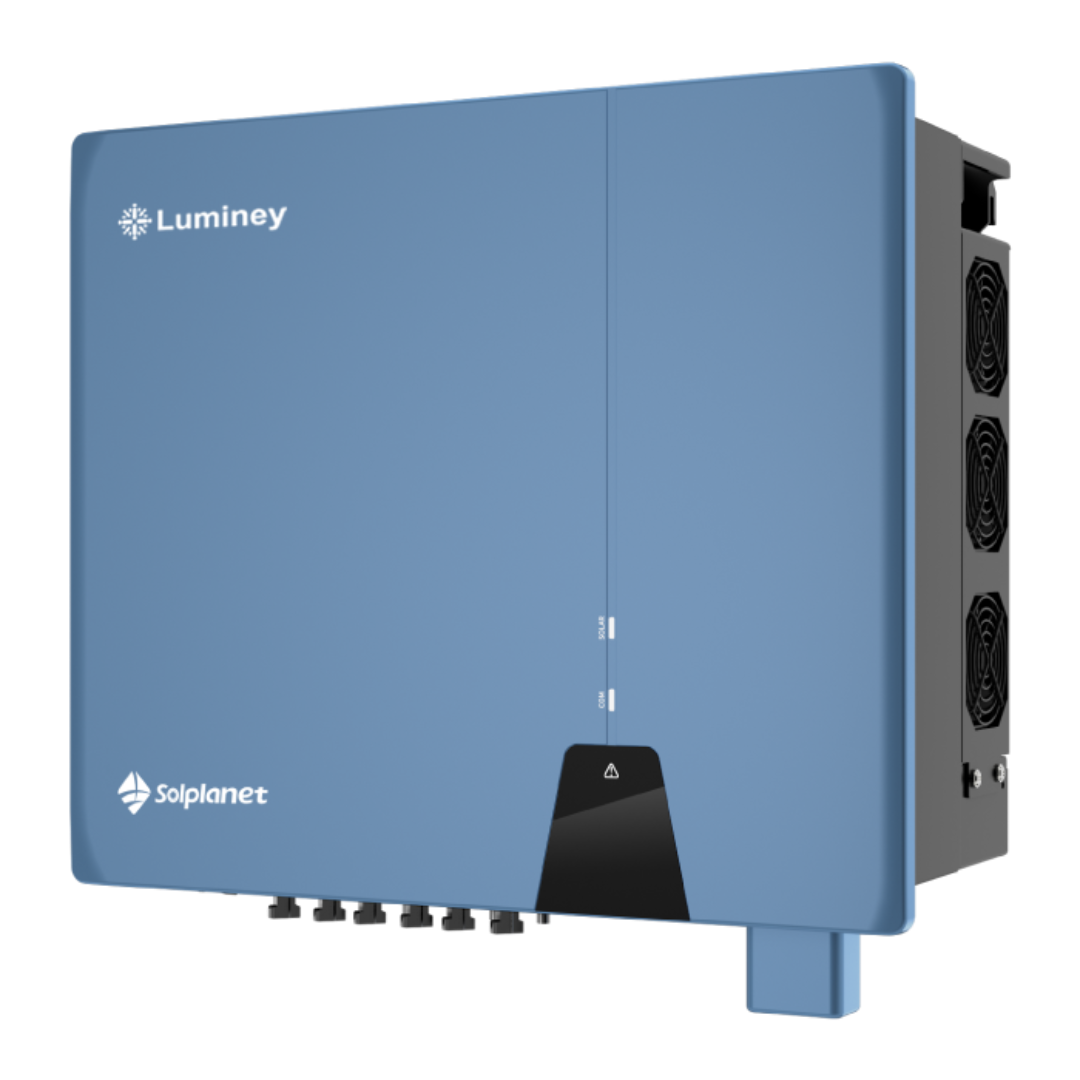

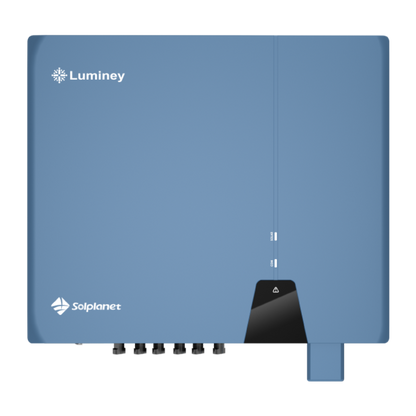

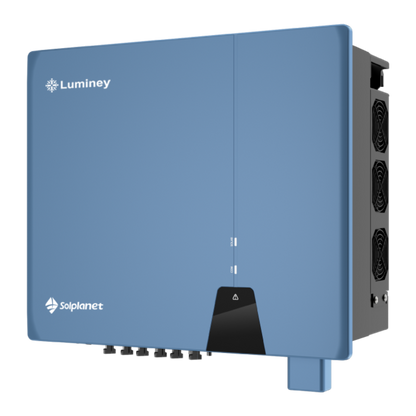

Luminey ASW 40K-LT-G3 40Kw On-Grid Solar Inverter
Luminey ASW 40K-LT-G3 40Kw On-Grid Solar Inverter
Regular price
Rs.399,000.00 PKR
Regular price
Rs.425,000.00 PKR
Sale price
Rs.399,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
ASW LT-G3 Series
The ASW LT-G3 series inverters offer enhanced performance with the same award-winning design. These industry-leading inverters are stylish, flexible, and extremely powerful, making them ideal for small-scale residential, commercial, and industrial applications. Compatible with 182/210mm PV modules, they feature three independent MPP trackers and up to 150% PV oversizing, ensuring optimal energy capture and efficiency.
Key Features
- 150% PV Oversizing: Supports additional solar panel capacity for enhanced energy production and system efficiency.
- Easy Setup: User-friendly design ensures quick and hassle-free installation.
- App for Easy Monitoring: Monitor system performance in real-time with a dedicated mobile app.
- Water & Dust Resistant: Built to endure tough outdoor conditions with robust protection.
- Surge Protection: Advanced protection against electrical surges to safeguard your system.
- Ideal for Bifacial Modules: Optimized to maximize output from bifacial solar panels.
- Shade sol Management: Efficiently handles shading issues to maintain consistent power generation.
Specifications
| Technical Datasheet | ASW 40K-LT-G3 |
| INPUT (DC) | |
| Max. PV array power | 60000 Wp STC |
| Max. input voltage | 1100 V |
| MPP voltage range/rated input voltage | 200 V-1000 V/630 V |
| Min. input voltage | 200 V |
| Initial feed-in voltage | 200 V |
| Max. operating input current | 32 A/32 A/40 A |
| Max. short circuit current | 48 A/48 A/60 A |
| No. of inputs/Strings per MPPT input | 3/ A : 2 ; B : 2 ; C: 2 |
| INPUT (AC) | |
| Rated active power | 40000 W |
| Rated apparent power | 40000 VA |
| Max. apparent power | 40000 VA |
| AC nominal voltage | 230 V/400 V |
| AC voltage range | 180-305 V/312-528 V |
| AC grid frequency/range | 60 Hz/55-65 Hz |
| Max. output current | 63.8 A |
| Adjustable power factor range | 0.8 leading to 0.8 lagging |
| Feed-in phases | 3/3-N-PE |
| Harmonic distortion (THD) at rated output | <3% |
| Efficiency & Protection | |
| Max. efficiency/European efficiency | 98.6%/98.3% |
| DC Switch | ? |
| Ground fault/grid monitoring | ? |
| DC reverse polarity/AC short circuit | ? |
| Residual-current monitoring | ? |
| AFCI | ? |
| Anti-Islanding protection | ? |
| Surge protection | AC/DC |
| Protection class/overvoltage category | I/AC III, DC III |
| Sun spec protocol | ? |
| Shade sol Shadow Management | ? |
| General Data | |
| Dimensions (W/H/D) | 543/520/235 mm |
| Weight | 30 kg |
| Operating temperature range | -25°C to +60°C |
| Self-consumption (night) | <1 W |
| Topology | Non-isolated |
| Cooling concept | Active cooling |
| Degree of protection (IEC 60529) | IP66 |
| Climatic category (according to IEC 60721-3-4) | 4K4H |
| Max. permissible value for relative humidity (non-condensing) | 100% |
| Max. operating altitude | 3000 m |
| DC connection | Plug-in connector |
| Features | |
| AC connection | Plug-in connector |
| Mounting type | Wall / mount bracket |
| LED indicators (Status / Fault / Communication) | ? |
| Communication interface | ?/? /o/o(RS485 / Wi-Fi / LAN / 4G) |
| Country of manufacture | China |
| Certificates and approvals (more available on request) | CE, EN50549, G98 / 99, VDE-AR-N4105, AS / NZS 4777, C10/C11, VFR 2014 & UTEC15, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, NB/T32004 |
| Standard features / o Optional features / - not available |
