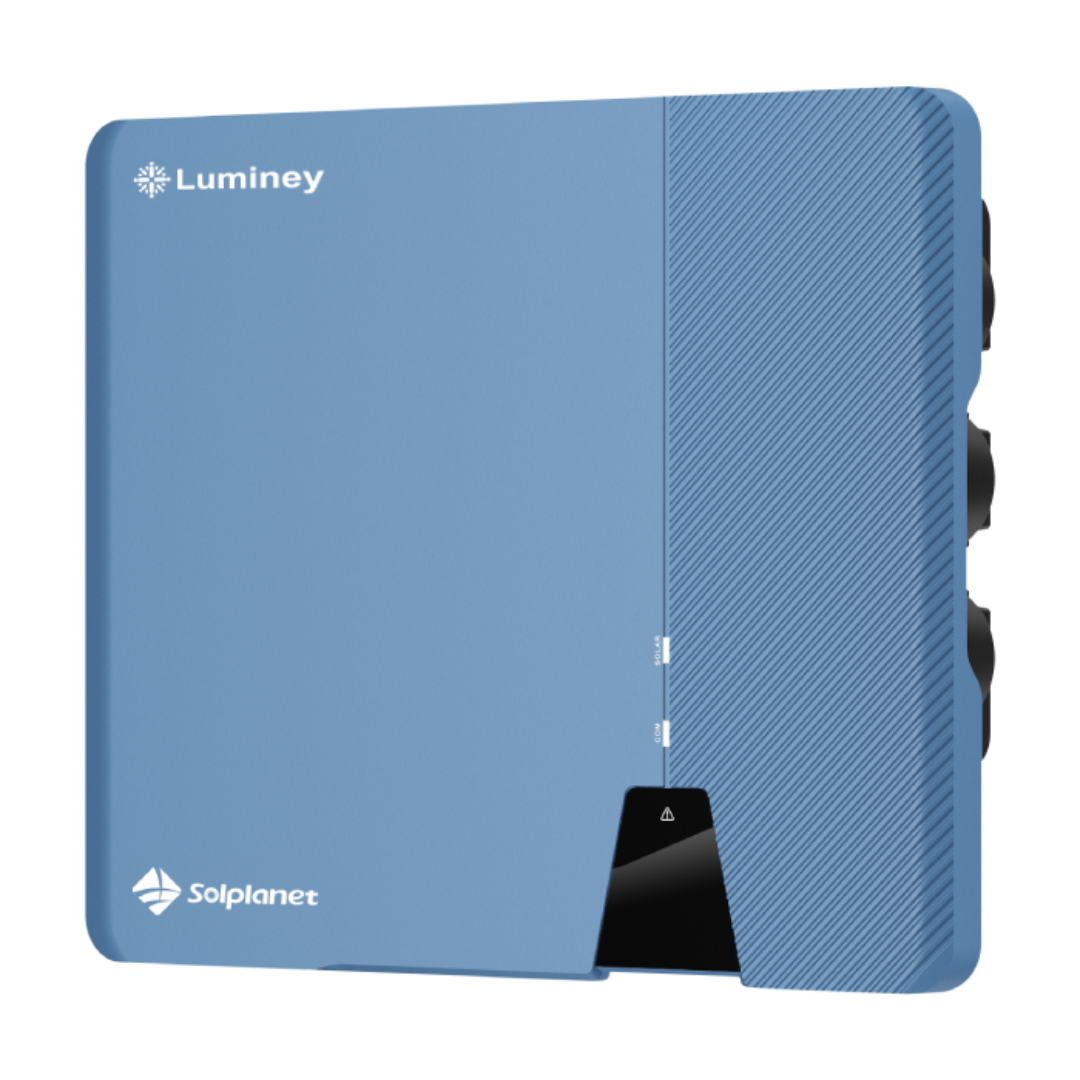

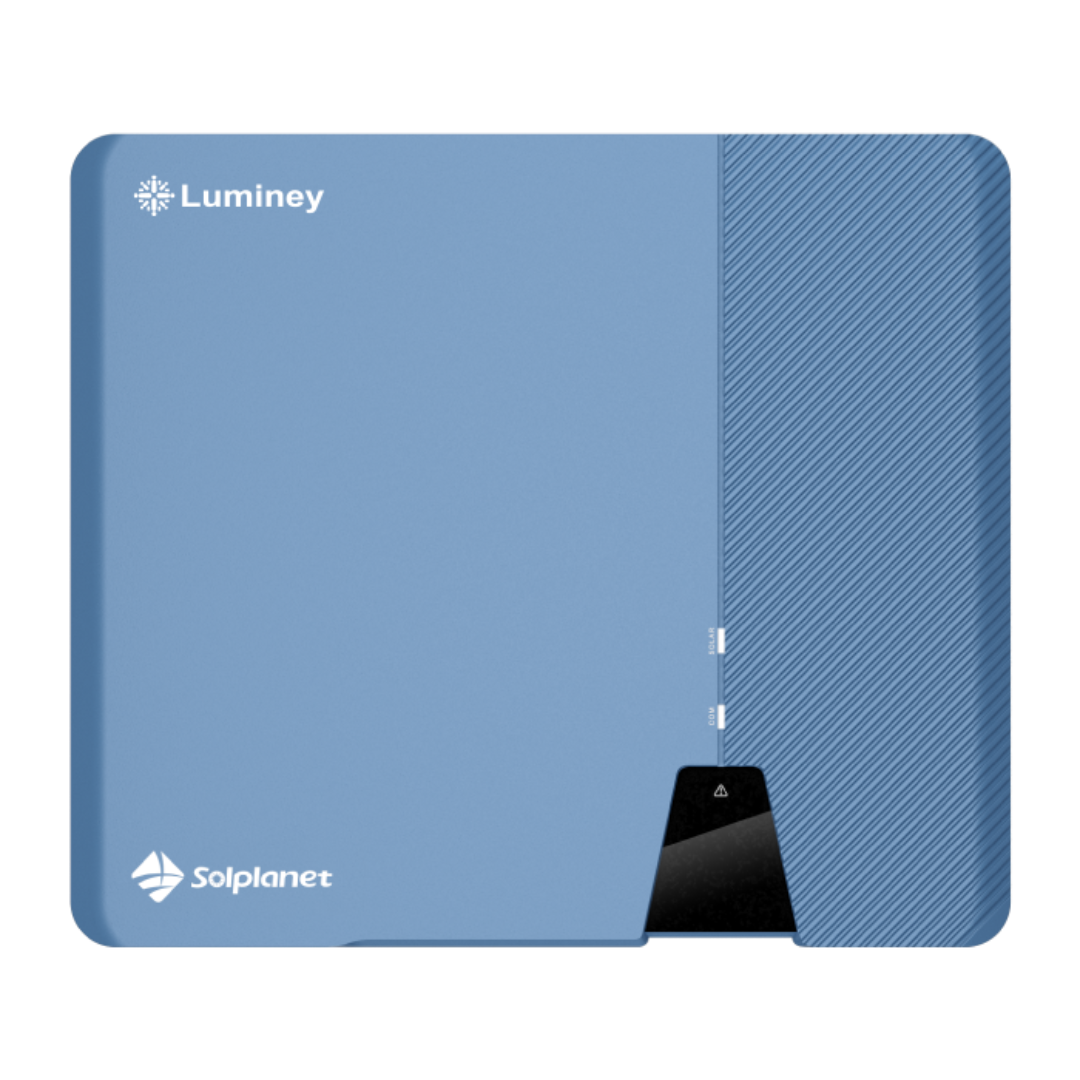

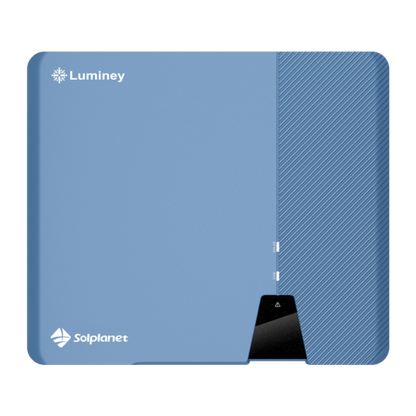

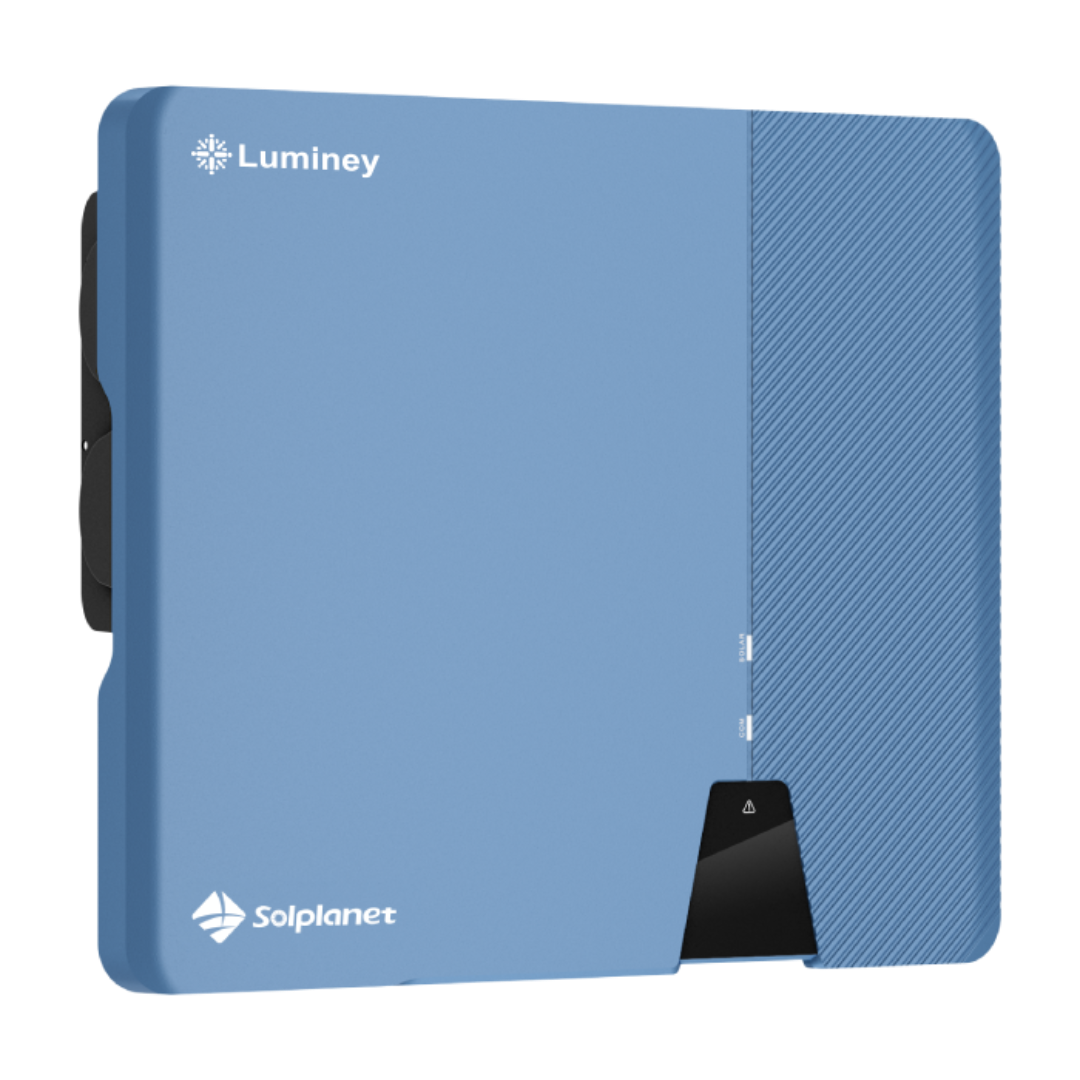

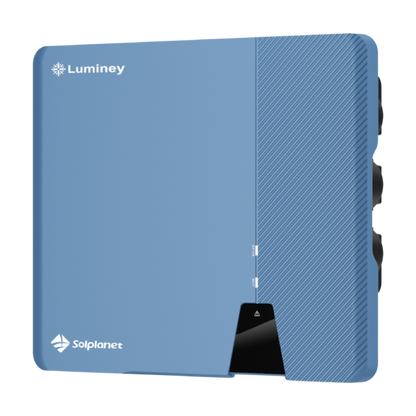

Luminey ASW 20K-LT-G2 Pro 20Kw On-Grid Solar Inverter
Luminey ASW 20K-LT-G2 Pro 20Kw On-Grid Solar Inverter
Regular price
Rs.262,000.00 PKR
Regular price
Rs.275,000.00 PKR
Sale price
Rs.262,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
ASW LT-G2 Pro Series
Engineered for high-demand applications, the LT-G2 Pro inverters offer cutting-edge performance and flexibility, effortlessly integrating with large-size PV modules. With dual MPP trackers and wide MPPT ranges, they maximize energy yield and adaptability for any setup. Designed to endure harsh conditions and equipped with smart cloud-based monitoring, these inverters deliver reliable, efficient power for your home or business.
Key Features
- 150% PV Over-Sizing: Allows higher solar panel capacity for maximum energy harvesting and improved efficiency.
- Easy Setup: Designed for hassle-free installation with user-friendly configurations.
- Ideal for Bifacial Modules: Optimized to support bifacial solar panels for enhanced energy output.
- Shade sol Management: Advanced shading management technology ensures consistent power generation even in partial shade conditions.
- App for Easy Monitoring: Stay in control with a dedicated mobile app for real-time system monitoring and performance tracking.
- IP66 Water & Dust Resistant: Built to withstand harsh outdoor environments with complete protection against water and dust.
- 5 Years Warranty: Enjoy peace of mind with a comprehensive 5-year manufacturer warranty.
- Compatible with Modules: Works seamlessly with a wide range of solar panel types for versatile installations.
- Award-Winning Design: Recognized for its innovative and aesthetically pleasing design.
- Suitable for Outdoor Use: Engineered to perform reliably in various weather conditions.
- Surge Protection: Provides advanced protection against power surges to safeguard your solar system.
Specifications
| Technical Datasheet | ASW 20K-LT-G2 Pro |
| INPUT (DC) | |
| Max. PV array power | 30000 Wp STC |
| Max. input voltage | 1100 V |
| MPP voltage range/rated input voltage | 200 V-1000 V/630 V |
| Min. input voltage | 160 V |
| Initial feed-in voltage | 180 V |
| Max. operating input current | 32 A/32 A |
| Max. short circuit current | 48 A/48 A |
| No. of inputs/Strings per MPPT input | 2 / A : 2 ; B : 2 |
| INPUT (AC) | |
| Rated active power | 20000 W |
| Rated apparent power | 20000 VA |
| Max. apparent power | 20000 VA |
| AC nominal voltage | 230 V/400 V |
| AC voltage range | 160 V to 300 V |
| AC grid frequency/range | 50 Hz/45-55 Hz |
| Max. output current | 31.9 A |
| Adjustable power factor range | 0.8 leading to 0.8 lagging |
| Feed-in phases | 3/3-N-PE |
| Harmonic distortion (THD) at rated output | <3% |
| Efficiency & Protection | |
| Max. efficiency/European efficiency | 98.6%/98.2% |
| DC Switch | ? |
| Ground fault/grid monitoring | ? |
| DC reverse polarity/AC short circuit | ? |
| Residual-current monitoring | ? |
| AFCI | ? |
| Anti-Islanding protection | ? |
| Surge protection | AC/DC |
| Protection class/overvoltage category | I/AC III, DC III |
| Sun spec protocol | ? |
| Shade sol Shadow Management | ? |
| General Data | |
| Dimensions (W/H/D) | 503/435/183 mm |
| Weight | 17.3 kg |
| Operating temperature range | -25°C to +60°C |
| Self-consumption (night) | <1 W |
| Topology | Non-isolated |
| Cooling concept | Active cooling |
| Degree of protection (IEC 60529) | IP66 |
| Climatic category (according to IEC 60721-3-4) | 4K4H |
| Max. permissible value for relative humidity (non-condensing) | 100% |
| Max. operating altitude | 3000 m |
| DC connection | Plug-in connector |
| Features | |
| AC connection | Plug-in connector |
| Mounting type | Wall / mount bracket |
| LED indicators (Status / Fault / Communication) | ? |
| Communication interface | ?/? /o/o(RS485 / Wi-Fi / LAN / 4G) |
| Country of manufacture | China |
| Certificates and approvals (more available on request) | CE, EN50549, G98 / 99, VDE-AR-N4105, AS / NZS 4777, C10/C11, VFR 2014 & UTEC15, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, NB/T32004 |
| Standard features / o Optional features / - not available |
