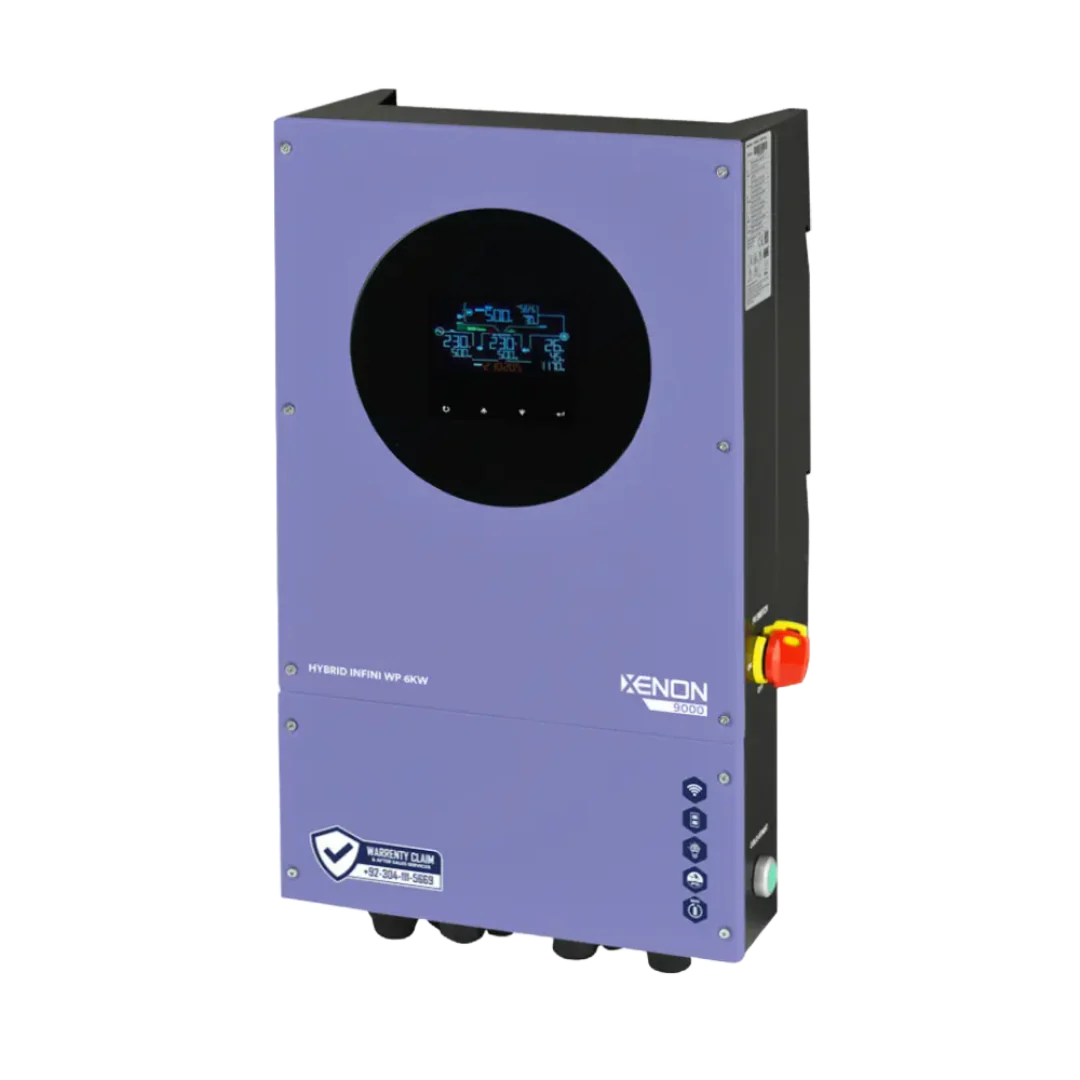

Knox Xenon 9000 6KW Hybrid Solar Inverter With PV 9000W
Knox Xenon 9000 6KW Hybrid Solar Inverter With PV 9000W
Regular price
Rs.239,999.00 PKR
Regular price
Rs.270,000.00 PKR
Sale price
Rs.239,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Knox Xenon 9000 6KW Hybrid Solar Inverter with PV 9000W
The Knox Xenon 9000 is a high-performance hybrid solar inverter designed to optimize solar energy conversion with integrated battery management and grid-tied functionality. Built for efficiency and durability, this inverter features a range of smart functionalities to support both residential and commercial applications.
Key Features
- Rated Power: 6000W (6KW) output for reliable power delivery to your home or business.
- PV Input Capacity: Maximum 9000W PV input, supporting a variety of solar panel configurations.
- Built-In Wifi: Allows for easy online monitoring via mobile apps or web-based platforms, providing real-time performance tracking and system diagnostics.
- IP65 Rating: Offers superior durability with protection against dust and water ingress, making it ideal for both indoor and outdoor installations.
- Dual Output: Smart load management with dual outputs to handle both regular and heavy loads, ensuring efficient energy distribution.
- Grid-Tied Solar Power Integration: Seamlessly integrates with the grid, enabling energy export for net metering or backup power.
- Batteryless Operation: Capable of operating without batteries, optimizing the use of solar energy without the need for energy storage.
- Battery Management System (BMS): Supports advanced battery management to extend battery life, if integrated, by optimizing charging and discharging cycles.
- Warranty: Includes a 2-year full warranty and 10-year service warranty, ensuring long-term reliability and peace of mind.
The Knox Xenon 9000 is a robust, feature-rich hybrid inverter that ensures reliable solar energy conversion, high-efficiency operation, and seamless integration with both the grid and battery systems. With its advanced protection features and extended warranty, it's an excellent choice for sustainable energy solutions.
Technical Data Sheet:
KNOX SERIES | Xenon 9000 |
MODEL |
INFINI V 4 WP 6KW PLUS |
Phase | 1-phase in / 1-phase out |
Maximum Pv Input Power | 9000 W |
Rated Output Power | 6000VA/6000W |
Maximum Charging Power | 6000 W |
GRID-TIE OPERATION | |
PV INPUT (DC) | |
Nominal DC Voltage / Maximum DC Voltage | 500 VDC |
Start-up Voltage / Initial Feeding Voltage | 80 VDC / 150 VDC |
MPP Voltage Range | 120 VDC ~ 400 VDC |
Number of MPP Trackers / Maximum Input Current | 2 / 18A |
Number of Strings Per MPP Tracker | |
GRID OUTPUT (AC) | |
Nominal Output Voltage | 220/230/240 VAC |
Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable) |
Nominal Output Current | 26A |
Power Factor range | > 0.99 |
Surge Power | 12000VA |
No Load Power Consumption | < 60W |
EFFICIENCY | |
Maximum Conversion Efficiency (DC/AC) | 96% |
European Efficiency@ Vnominal | 95% |
OFF-GRID OPERATION | |
AC INPUT | |
AC Start-up Voltage / Auto Restart Voltage | 60 - 80 VAC / 180 VAC |
Acceptable Input Voltage Range | 170-280 VAC (For Computers) 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
PV INPUT (DC) | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 66 VDC |
Output Waveform | Pure sine wave |
Transfer Time | 10 ms (For Personal Computers) |
20 ms (For Home Appliances) | |
Efficiency (DC to AC) | 90% - 93% |
BATTERY & CHARGER | |
Battery Voltage Range | 48 VDC |
Maximum Charging Current | 120 A |
SOLAR CHARGER & AC CHARGER | |
Solar Charger type | MPPT |
GENERAL | |
PHYSICAL | |
Dimension, D x W x H (mm) | 192 x 385 x 665 |
Net Weight (kgs) | 28 |
INTERFACE | |
Communication Port | RS-232, RS-485, USB, CAN and Wi-Fi |
Intelligent Slot | Optional for SNMP and Modbus cards |
Parallel Capability | Yes, 9 units |
ENVIRONMENT | |
Humidity | 0 ~ 100% RH (No condensing) |
Operating Temperature | -25 to 60°C |
Storage Temperature | -15^{O} C to 60^{O} C |
Altitude | 0 ~ 1000 m** |
