Knox Xenon 11000 8KW Hybrid Solar Inverter With PV 11000W
Knox Xenon 11000 8KW Hybrid Solar Inverter With PV 11000W
Regular price
Rs.317,999.00 PKR
Regular price
Rs.395,000.00 PKR
Sale price
Rs.317,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.

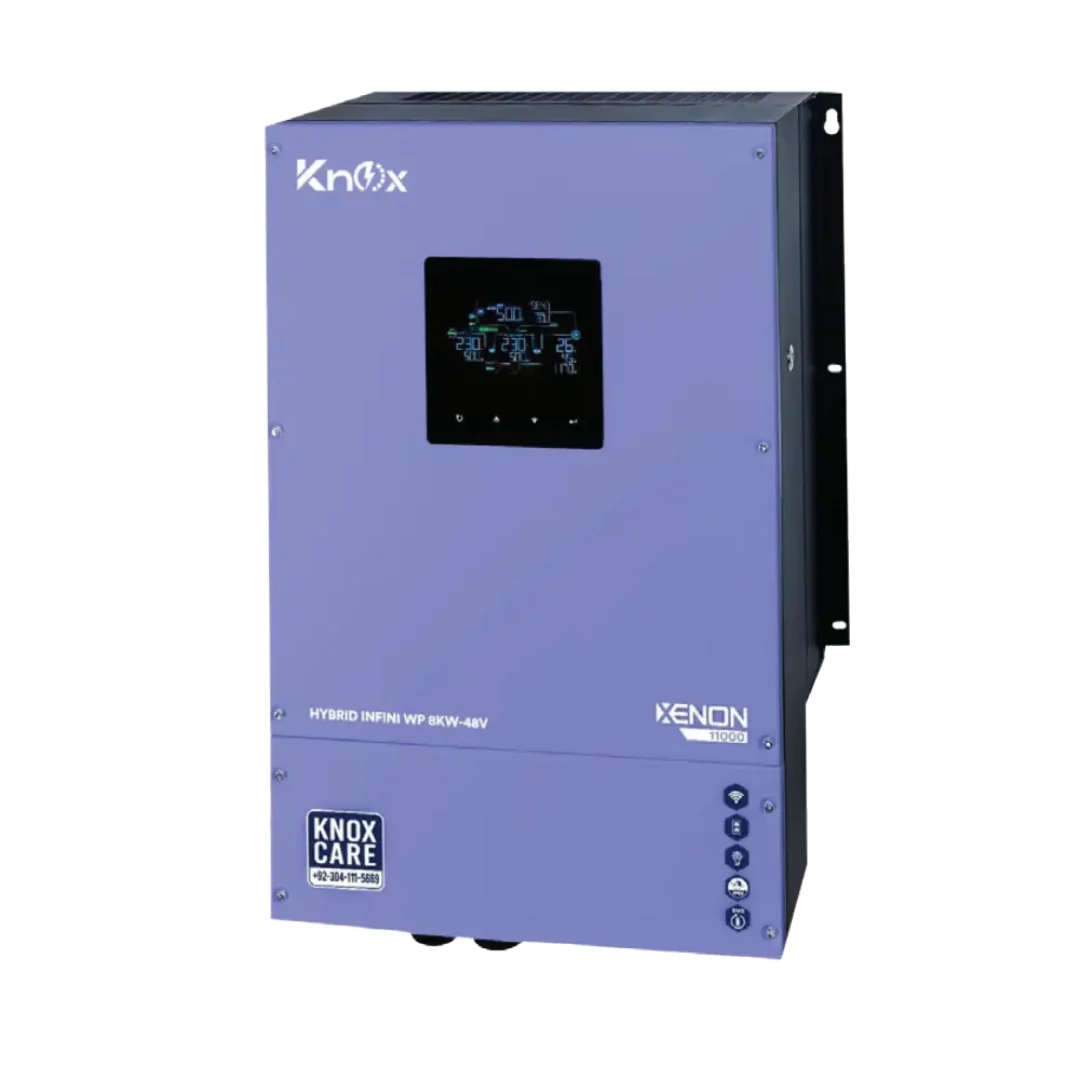

Knox Xenon 11000 8KW Hybrid Solar Inverter with PV 11000W
The Knox Xenon 11000 is an 8KW hybrid solar inverter designed for high-efficiency solar power systems. It offers a seamless combination of performance and durability, with built-in Wi-Fi for online monitoring and an IP65 rating for robust protection against environmental elements.
Key Features
- Built-In Wi-Fi for Online Monitoring: Enables remote monitoring and management of the system via a mobile app.
- Durability and Protection with IP65 Rating: Provides strong protection against dust and water, ensuring reliable performance in harsh environments.
- Dual Output for Smart & Heavy Load: Supports both sensitive electronics and high-power loads with its dual output design.
- Grid-Tied Solar Power Integration: Facilitates integration with the grid, allowing excess solar energy to be fed back into the grid.
- Batteryless Operation: Operates efficiently without the need for a battery, reducing maintenance requirements.
- Battery Management System: Optimizes battery performance and extends lifespan when batteries are used in the system.
- 2 Year Full Warranty and 10 Year Service Warranty: Provides long-term peace of mind with comprehensive warranty coverage.
The Knox Xenon 11000 is ideal for medium-scale residential and commercial solar systems, offering a reliable, efficient, and easy-to-manage hybrid solar inverter solution.
Technical Data Sheet:
| KNOX SERIES | Xenon 11000 |
| MODEL |
AXPERT WP TWIN 8K |
| Phase | 1-phase in / 1-phase out |
| Maximum Pv Input Power | 11000 W |
| Rated Output Power | 8000VA/8000W |
| Maximum Charging Power | 11000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | |
| MPP Voltage Range | 90 ~ 450 VDC |
| Number of MPP Trackers / Maximum Input Current | 18 A x 2 |
| Number of Strings Per MPP Tracker | |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC or 184 - 264.4 VAC (Selectable) |
| Nominal Output Current | 36A |
| Power Factor range | > 0.99 |
| Surge Power | 16000VA |
| No Load Power Consumption | < 85W |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| European Efficiency@ Vnominal | 95% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 60 - 80 VAC / 180 VAC |
| Acceptable Input Voltage Range | 170-280 VAC (For Computers) 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| PV INPUT (DC) | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Output Waveform | Pure sine wave |
| Transfer Time | 10 ms (For Personal Computers) |
| 20 ms (For Home Appliances) | |
| Efficiency (DC to AC) | 90% - 93% |
| BATTERY & CHARGER | |
| Battery Voltage Range | 48 VDC |
| Maximum Charging Current | 150 A |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger type | MPPT |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 210 x 435 x 665 |
| Net Weight (kgs) | 32 |
| INTERFACE | |
| Communication Port | RS-232, RS-485, USB, CAN and Wi-Fi |
| Intelligent Slot | Optional for SNMP and Modbus cards |
| Parallel Capability | YES, 6 units |
| ENVIRONMENT | |
| Humidity | 0 ~ 100% RH (No condensing) |
| Operating Temperature | -25 to 60°C |
| Storage Temperature | -15^{O} C to 60^{O} C |
| Altitude | 0 ~ 1000 m** |
