Knox Krypton 7502 5.5KW Hybrid Solar Inverter With PV 7500W
Knox Krypton 7502 5.5KW Hybrid Solar Inverter With PV 7500W
Regular price
Rs.179,999.00 PKR
Regular price
Rs.205,000.00 PKR
Sale price
Rs.179,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.

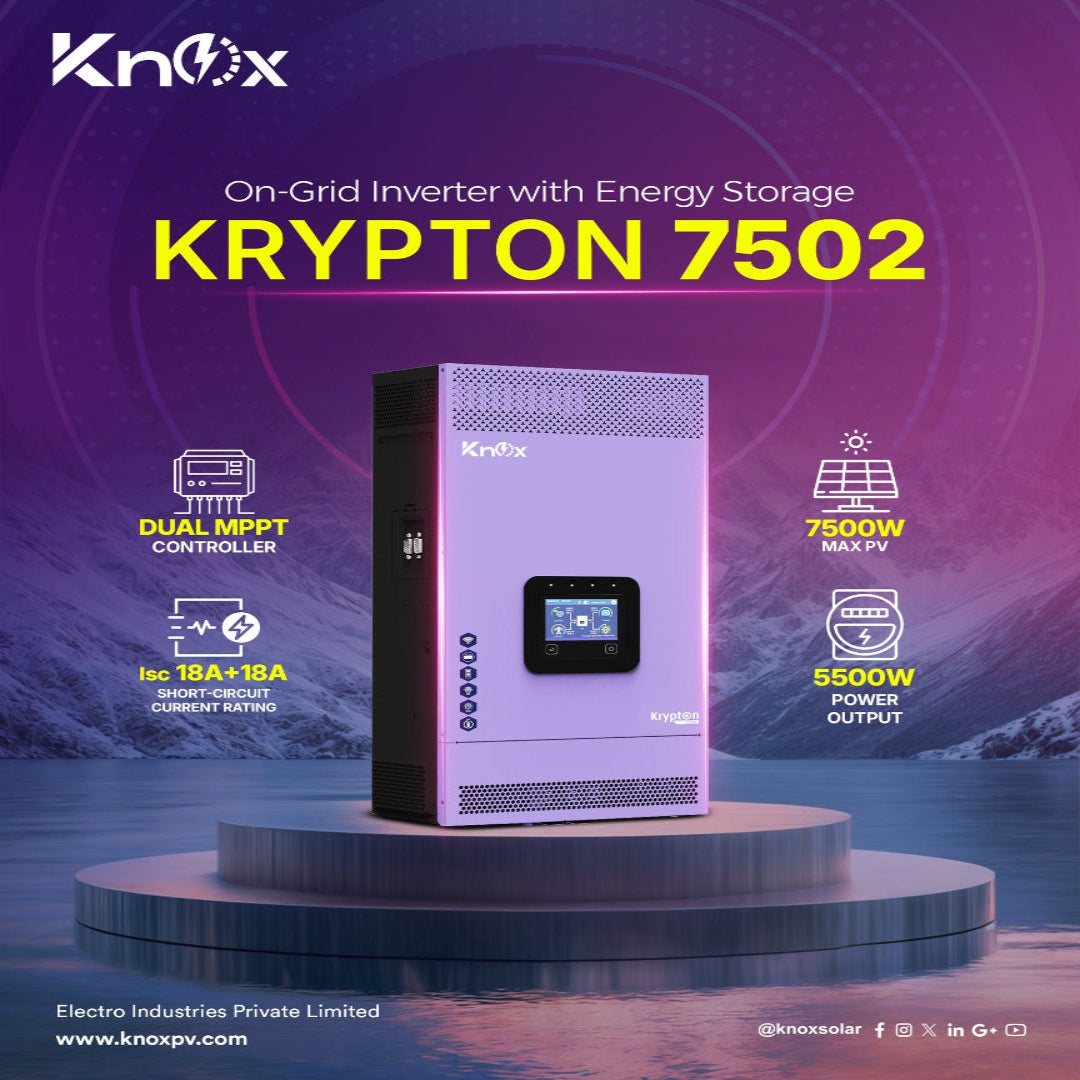

Knox Krypton 7502 5.5KW Hybrid Solar Inverter (7500W PV Input)
The Knox Krypton 7502 is a powerful and efficient hybrid solar inverter designed for both residential and commercial applications. With advanced features like built-in WiFi for online monitoring, dual output for smart and heavy load management, and grid-tied solar integration, it ensures seamless energy management and reliable performance.
Key Features
- Built-In WiFi: Enables real-time monitoring and control through a dedicated mobile app, offering convenience and insights into system performance.
- Durable IP21 Rated Protection: Engineered to withstand environmental factors, ensuring long-lasting durability.
- Dual Output Design: Separates smart loads from heavy loads for optimized power distribution and efficiency.
- Grid-Tied Solar Integration: Allows seamless connection to the grid, enhancing energy utilization and enabling net metering options.
- Battery-Less Operation: Operates without the need for batteries, reducing costs and complexity while still supporting energy independence.
- Battery Management System (BMS): Extends battery life and optimizes performance when used with batteries, ensuring intelligent charging and discharging cycles.
The Knox Krypton 7502 is the ideal solution for modern energy needs, offering robust performance, smart features, and flexibility to adapt to diverse power requirements.
Technical Data Sheet:
KNOX SERIES | Krypton 7502 |
MODEL |
INFINISOLAR V 4 TWIN 5.5KW |
Phase | Single Phase |
Maximum PV Input Power | 7500W |
Rated Output Power | 5500W |
GRID-TIE OPERATION | |
PV INPUT (DC) | |
Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
Start-up Voltage / Initial Feeding Voltage | 120VDC / 150 VDC |
MPP Voltage Range | 120 VDC ~ 430 VDC |
Number of MPPT rackers / Maximum Input Current | 2 / 27A (MAX 40A) |
GRID OUTPUT (AC) | |
Nominal Output Voltage | 220/230/240 VAC |
Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) |
Nominal Output Current | 18 A |
Power Factor | > 0.99 |
EFFICIENCY | |
Maximum Conversion Efficiency (DC/AC) | 95% |
OFF-GRID OPERATION | |
AC INPUT | |
AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 220/230/240 VAC |
Output Waveform | Pure sine wave |
Efficiency (DC to AC) | 93% |
DC Voltage | 12 VDC ± 5%, 100W |
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
BATTERY & CHARGER | |
Nominal DC Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 63 VDC |
Solar Charger type | MPPT |
Maximum Solar Charging Current | 120A |
Maximum AC Charging Current | 120A |
Maximum Charging Current | 120A |
Surge Power | |
GENERAL | |
PHYSICAL | |
Dimension, D x W x H (mm) | 140 x 295 x 468 |
Net Weight (kgs) | 12 |
INTERACE | |
Parallel Function | Yes, 9 units |
Communication Port | USB/RS232/RS485/Wifi/Dry-contact |
ENVIRONMENT | |
Humidity | 0 ~ 90% RH (No condensing) |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -15°C to 60°C |
