Knox Krypton 5600 4KW Hybrid Solar Inverter With PV 5600W
Knox Krypton 5600 4KW Hybrid Solar Inverter With PV 5600W
Regular price
Rs.117,999.00 PKR
Regular price
Rs.145,000.00 PKR
Sale price
Rs.117,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.

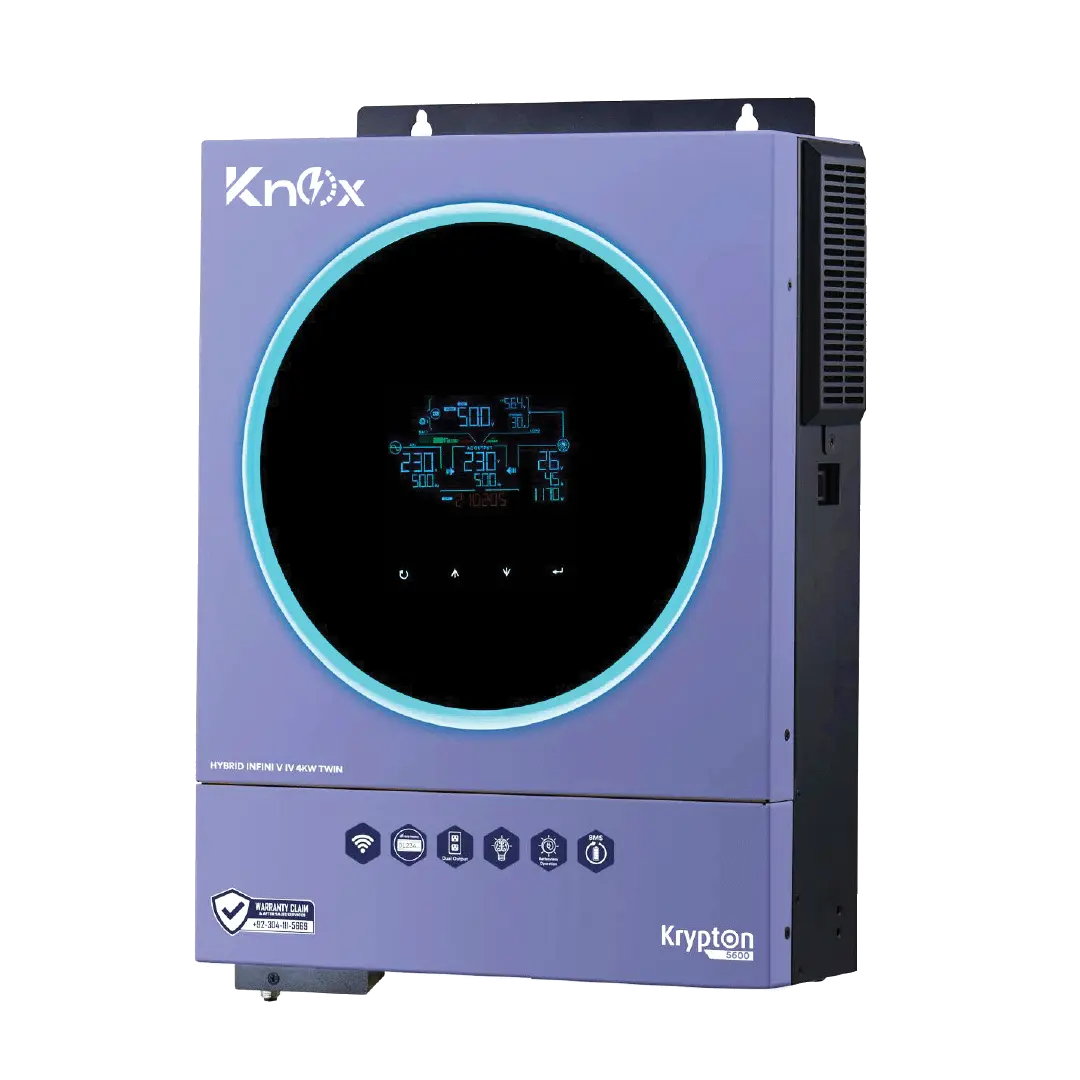

Knox Krypton 5600 4KW Hybrid Solar Inverter with PV 5600W
The Knox Krypton 5600 is a 4KW hybrid solar inverter designed to deliver reliable performance for both residential and small commercial solar systems. With built-in Wi-Fi for online monitoring, this inverter allows easy access to system data and efficient energy management.
Key Features
- Built-In Wi-Fi for Online Monitoring: Enables remote monitoring and control, providing real-time system updates and performance data.
- Durability and Protection with IP21 Rating: Offers protection from dust and water splashes, ideal for indoor and mild outdoor installations.
- Dual Output for Smart & Heavy Load: Supports both light electronics and heavy-duty appliances, offering versatility in load management.
- Grid-Tied Solar Power Integration: Seamlessly integrates with the grid, maximizing solar power utilization and efficient energy consumption.
- Batteryless Operation: Designed to operate without a battery, offering a cost-effective solution for grid-connected solar power systems.
- Battery Management System: Enhances the longevity and efficiency of connected batteries, ensuring optimal performance when used.
Technical Data Sheet:
| KNOX SERIES | Krypton 5600 |
| MODEL |
HYBRID INFINI V IV 4KW TWIN |
| Phase | Single Phase |
| Maximum PV Input Power | 5600 W |
| Rated Output Power | 4000 W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 120VDC / 150 VDC |
| MPP Voltage Range | 60 ~ 450 VDC |
| Number of MPP T rackers / Maximum Input Current | 1 / 27A (MAX 40A) |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Nominal Output Current | 18 A |
| Power Factor | > 0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 95% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| DC Voltage | 12 VDC ± 5%, 100W |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| Solar Charger type | MPPT |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
| Maximum Charging Current | 120A |
| Surge Power | 8000VA |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 119 x 313.6 x 457.5 |
| Net Weight (kgs) | 12 |
| INTERACE | |
| Parallel Function | Yes, 9 units |
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact |
| ENVIRONMENT | |
| Humidity | 0 ~ 90% RH (No condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
The Knox Krypton 5600 is perfect for users looking for a compact, efficient, and reliable hybrid solar inverter solution for both home and light commercial use.
