Knox Krypton 13000 11KW Hybrid Solar Inverter With PV 13000W
Knox Krypton 13000 11KW Hybrid Solar Inverter With PV 13000W
Regular price
Rs.349,999.00 PKR
Regular price
Rs.415,000.00 PKR
Sale price
Rs.349,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.

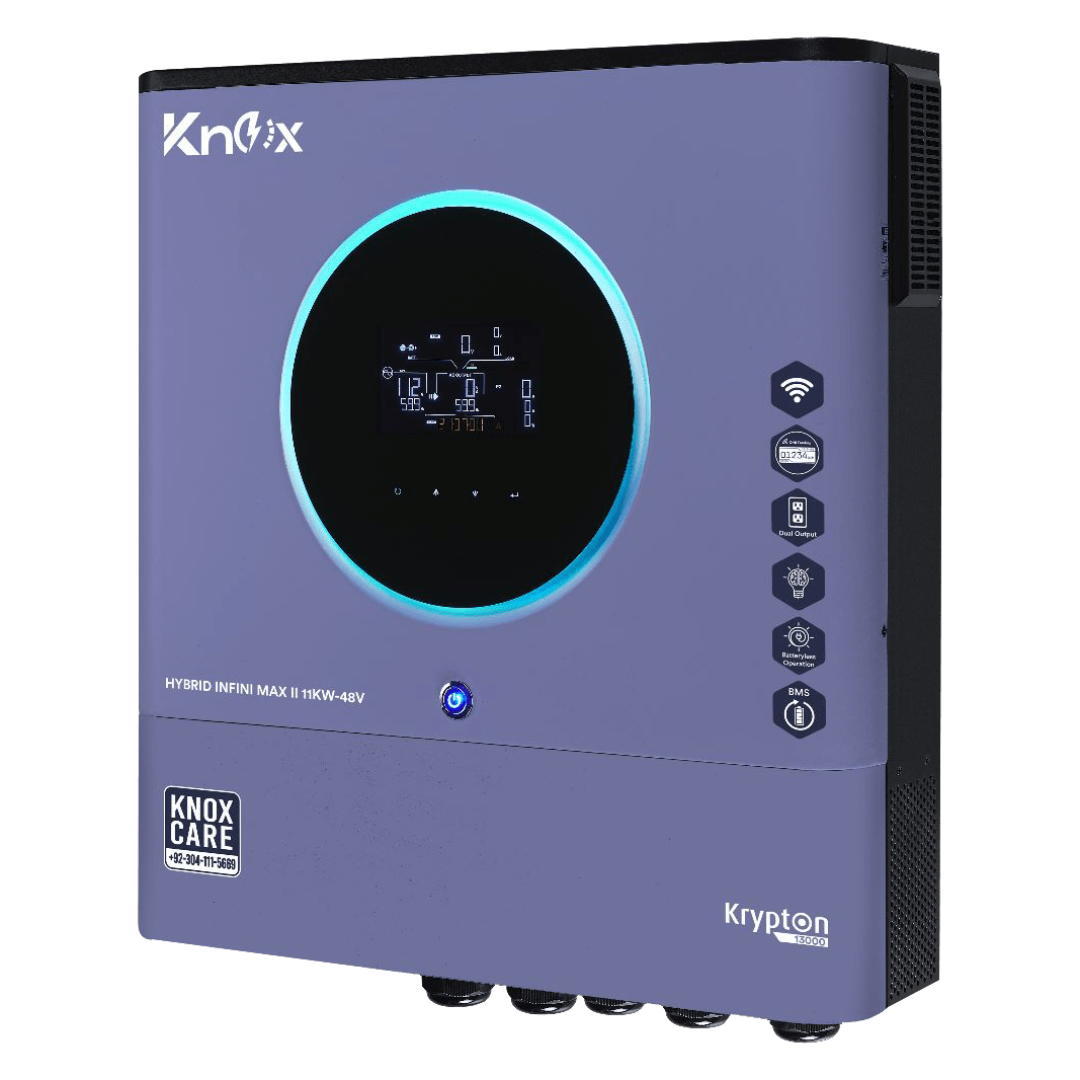

Knox Krypton 13000 11KW Hybrid Solar Inverter with PV 13000W
The Knox Krypton 13000 is an 11KW hybrid solar inverter designed for large-scale residential or commercial solar systems. With built-in Wi-Fi for online monitoring, this inverter provides efficient energy management, making it a reliable solution for users looking to maximize their solar power utilization.
Key Features
- Built-In Wi-Fi for Online Monitoring: Allows remote access and monitoring of system performance, ensuring optimal operation at all times.
- Durability and Protection with IP21 Rating: Offers protection against dust and water splashes, making it suitable for indoor or sheltered installations.
- Dual Output for Smart & Heavy Load: Capable of handling both light and heavy-duty appliances with ease, offering flexibility in energy distribution.
- Grid-Tied Solar Power Integration: Efficiently integrates with the grid, enhancing overall energy savings and reducing reliance on external power sources.
- Batteryless Operation: Functions without the need for a battery, providing a cost-effective solution for grid-connected systems.
- Battery Management System: Optimizes battery life and performance if batteries are used, ensuring efficient energy storage.
The Knox Krypton 13000 is the ideal choice for users seeking a powerful, scalable hybrid solar inverter that offers flexibility, efficiency, and longevity for both residential and commercial applications.
Technical Data Sheet:
| KNOX SERIES | Krypton 13000 |
| MODEL | HYBRID INFINI MAX II 11KW-48V |
| Phase | Single Phase |
| Maximum PV Input Power | 13000W (6500W x 2) |
| Rated Output Power | 11000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 120VDC / 150 VDC |
| MPP Voltage Range | 90 ~ 450 VDC |
| Number of MPP T rackers / Maximum Input Current | 27A x 2 (MAX 40A) |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Nominal Output Current | 48 A |
| Power Factor | > 0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 95% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| DC Voltage | 12 VDC ± 5%, 100W |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger type | MPPT |
| Maximum Solar Charging Current | 150A |
| Maximum AC Charging Current | 150A |
| Maximum Charging Current | 150A |
| Surge Power | 22000VA |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 158.4 x 503.6 x 530.8 |
| Net Weight (kgs) | 20 |
| INTERACE | |
| Parallel Function | YES, 6 units |
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact |
| ENVIRONMENT | |
| Humidity | 0 ~ 90% RH (No condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
