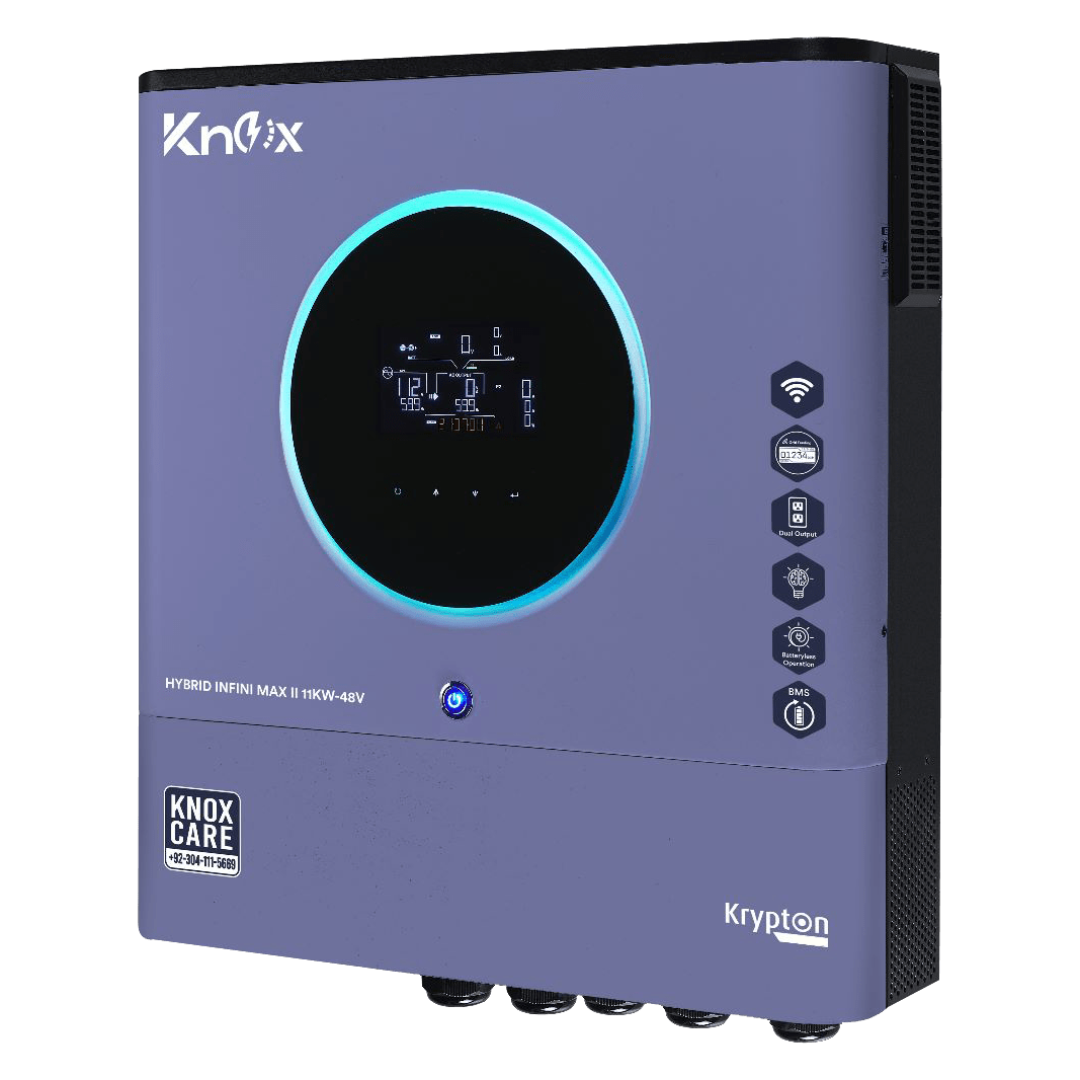

Knox Krypton 11000 8KW Hybrid Solar Inverter With PV 11000W
Knox Krypton 11000 8KW Hybrid Solar Inverter With PV 11000W
Regular price
Rs.279,999.00 PKR
Regular price
Rs.370,000.00 PKR
Sale price
Rs.279,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Knox Krypton 11000 8KW Hybrid Solar Inverter with PV 11000W
The Knox Krypton 11000 is an 8KW hybrid solar inverter designed for larger residential or small commercial solar systems. With its advanced features such as built-in Wi-Fi for online monitoring and grid-tied integration, this inverter ensures efficient energy use and seamless operation.
Key Features
- Built-In Wi-Fi for Online Monitoring: Provides remote monitoring and management of system performance from any location.
- Durability and Protection with IP21 Rating: Offers protection against dust and water splashes, making it suitable for indoor or protected installations.
- Dual Output for Smart & Heavy Load: Ideal for managing both lightweight devices and heavy-duty appliances with ease.
- Grid-Tied Solar Power Integration: Enables integration with the grid for optimal energy use, reducing reliance on external power sources.
- Batteryless Operation: Functions effectively without the need for a battery, offering a cost-efficient solution for grid-connected solar systems.
- Battery Management System: Ensures the efficient operation and longer life of any connected batteries, optimizing energy storage.
The Knox Krypton 11000 is the perfect choice for users seeking a powerful, flexible, and efficient hybrid solar inverter that supports both residential and small commercial applications.
Technical Data Sheet:
| KNOX SERIES | Krypton 11000 |
| MODEL |
HYBRID INFINI MAX II 8KW-48V TWIN |
| Phase | Single Phase |
| Maximum PV Input Power | 11000W (5500W x 2) |
| Rated Output Power | 8000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 120VDC / 150 VDC |
| MPP Voltage Range | 90 ~ 450 VDC |
| Number of MPP T rackers / Maximum Input Current | 27A x 2 (MAX 40A) |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Nominal Output Current | 35 A |
| Power Factor | > 0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 95% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| DC Voltage | 12 VDC ± 5%, 100W |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| Solar Charger type | MPPT |
| Maximum Solar Charging Current | 150A |
| Maximum AC Charging Current | 120 A |
| Maximum Charging Current | 150A |
| Surge Power | 16000VA |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 158.4 x 503.6 x 530.8 |
| Net Weight (kgs) | 20 |
| INTERACE | |
| Parallel Function | YES, 6 units |
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact |
| ENVIRONMENT | |
| Humidity | 0 ~ 90% RH (No condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
