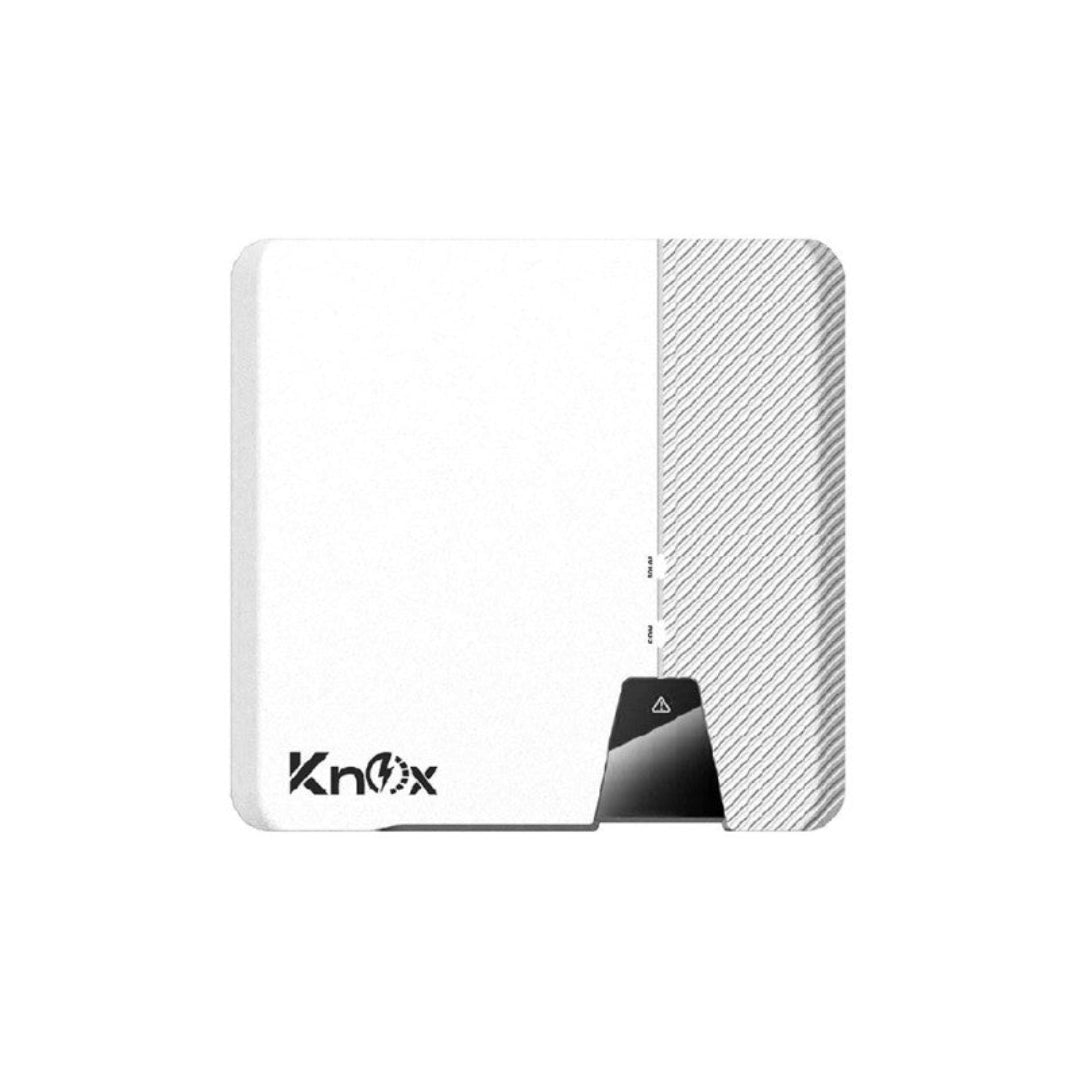

Knox ASW LT-G2 8kW On-Grid Solar Inverter
Knox ASW LT-G2 8kW On-Grid Solar Inverter
Regular price
Rs.155,000.00 PKR
Regular price
Sale price
Rs.155,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
ASW 8K-LT-G2 8kW On-Grid Solar Inverter
The ASW 8K-LT-G2 8kW On-Grid Solar Inverter is a high-performance solution for residential and commercial solar energy systems. Designed for maximum efficiency and reliability, it offers advanced monitoring, a wide voltage range, and intelligent protection features, ensuring seamless grid integration and optimal energy conversion.
Key Features
- Communication Interface: Supports Wi-Fi and RS485 for remote monitoring and system management.
- Degree of Protection: IP65-rated, making it dustproof and waterproof, ideal for outdoor installations.
- Max PV Array Power: Handles up to 12,000W, ensuring high energy harvesting from solar panels.
- Multiple MPPT Inputs: Equipped with two independent MPPT inputs (2/A:1; B:1) for efficient energy optimization.
- Wide MPPT Voltage Range: 150V to 1000V, with a rated input voltage of 630V, ensuring compatibility with diverse panel configurations.
- Rated Power Output: 8,000W with three-phase feed-in, making it suitable for medium to large-scale solar systems.
- Smart Cooling System: Active cooling technology enhances performance and longevity.
- Compact and Lightweight: Weighs 17.3 kg, making installation and maintenance easy.
Specifications
- AC Nominal Voltage: 220V/380V - 230V/400V - 240V/425V
- Max Short Circuit Current: 40A / 20A
- Rated Grid Frequency: 50Hz
- Max Operating Altitude: 3000m
- Self-Consumption (at night): <1W
The ASW 8K-LT-G2 8kW On-Grid Solar Inverter is an ideal choice for users looking for a highly efficient, durable, and smart solar inverter, ensuring long-term performance with advanced monitoring capabilities.
Technical Data Sheet
| Technical Data | ASW 8K-LT-G2 8kW |
| Input DC | |
| Max PV array Power | 12000 WP STC |
| Max in put voltage | 1100 v |
| MPP Voltage range/ rated input voltage | 150 v to 1000 v / 630 v |
| Main Input voltage | 125 V |
| Initial Feed- in voltage | 150 V |
| Max Operating input current | 26 A /13 A |
| Max short circuit current | 40 A / 20 A |
| Number of independent MPP inputs/ String per MPP input | 2/A:1; B:1 |
| OUTPUT AC | |
| Rated active power | 8000 W |
| Max apparent AC Power | 8000VA |
| AC nominal voltage | 220 V/ 380 V -230 V / 400 V -240 V/ 425 V |
| AC voltage range | 160 V TO 300 V |
| AC Grid frequency | 16.8 A |
| Rated grid frequency / rated grid voltage | 50 HZ/ 230 V |
| Max Output Current | 0.8 over excited to 0.8 under excited |
| Power factor at rated active power | 1 |
| Adjustable Displacement | 0.8 over excited to 0.8 under excited |
| feed-in phase | 3 |
| Harmonic Distortion (THD) at rated out put | <3% |
| Efficiency and Protection | |
| Max efficiency / European efficiency | 98.6 % / 98.2 % |
| ALL-pole- sensitive residual- current monitoring unit | 17. 3 KG |
| Protection class( according ti IEC 62109-1)/ overvoltage category( according to IEC 62109-1) | I/AC: III; DC: II |
| General Data | |
| Weight | 17.3 KG |
| Operating temperature range | -25 C -+60 C |
| Self Consumption (at night) | <1W |
| Topology | Transformer less |
| Cooling Concept | Active cooling |
| Degree of protection ( according to IEC 60529 | IP65 |
| Climatic category ( according to IEC 60721- 3-4 | 4K4H |
| Max permissible valuable for relative Humidity ( non- condensing) | 1 |
| Max operating altitude | 3000 M |
| Features | |
| DC connection | Phoenix contact |
| AC connection | plug- in connector |
| MOUNTING TYPE | wall- mount bracket |
| LED indicator ( status/ Fault/ Communication) | |
| Communication interface | wi-Fi/ Rs485 |
| Certificate ad approvals ( more available on request) | CE,EN 50549, 1EC 62109, IEC 62116, IEC 61727, IEC 616 83, IEC 60068, 1EC 60068,IEC 6100,AS/NZS4777,C10/C11 |
