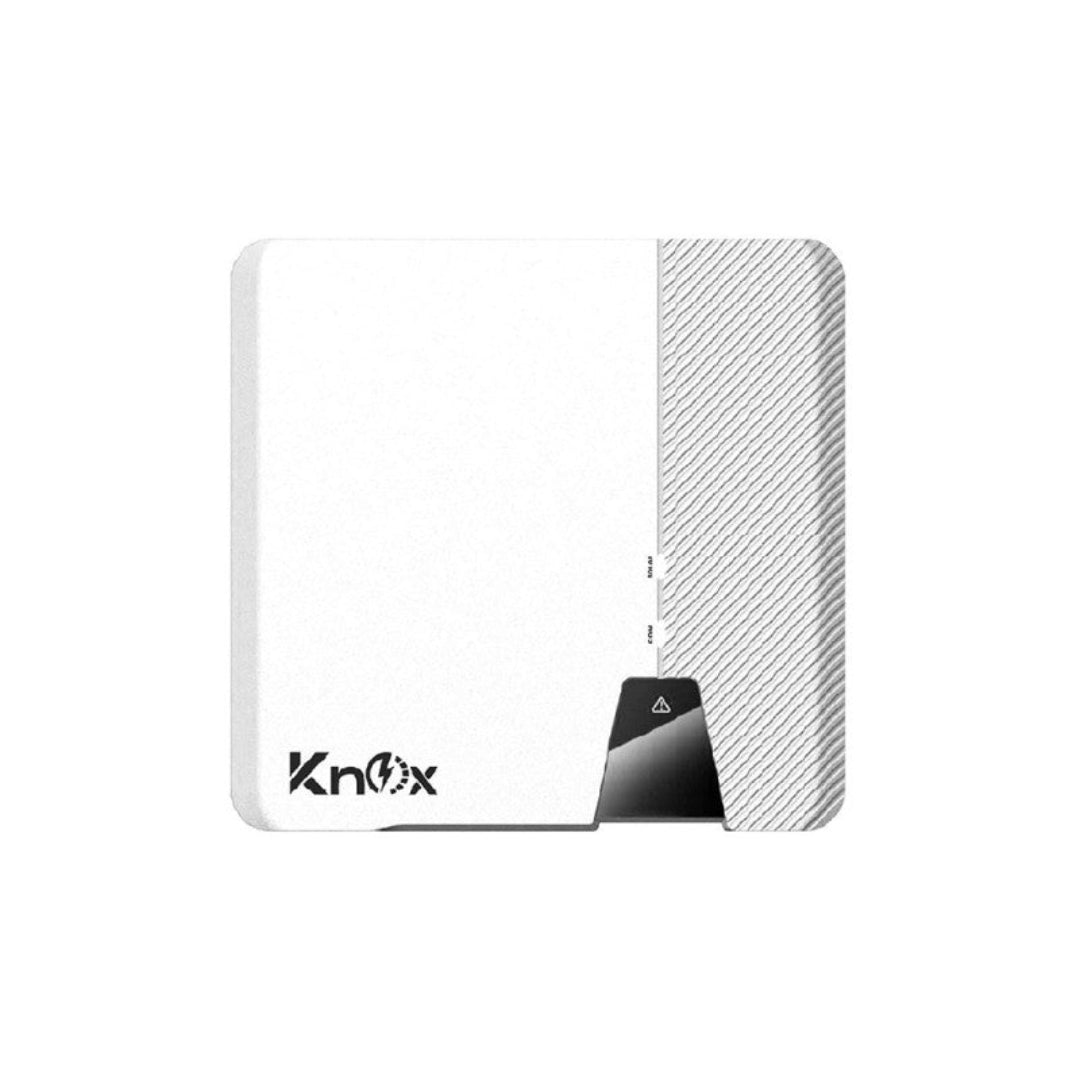

Knox ASW LT-G2 40kW On-Grid Solar Inverter

Knox ASW LT-G2 40kW On-Grid Solar Inverter

The Knox ASW LT-G2 40kW On-Grid Solar Inverter is engineered for medium to large-scale commercial applications, offering high efficiency and flexibility in system design. It features multiple MPPT inputs, robust protection features, and reliable performance for optimal energy conversion from solar arrays.

Key Features

• Communication Interface: Supports Wi-Fi, 4G, and RS485 for real-time monitoring and remote management.
• Degree of Protection: IP65 rated for excellent dust and water resistance, making it suitable for outdoor use in a variety of environmental conditions.
• Max PV Array Power: Supports a maximum solar array power of 37,500Wp, ensuring optimal performance for commercial-scale installations.
• Multiple MPPT Inputs: Features 2 independent MPPT inputs, allowing for efficient energy management from different parts of the solar array.
• Wide MPPT Voltage Range: 150V to 1000V input voltage range, with a rated input voltage of 630V, offering flexibility in the design of the solar power system.
• High Power Output: Delivers 40,000W of rated power, perfect for medium to large commercial solar installations.
• Compact Design: With dimensions of 50.3 x 18.3 x 43.5 cm and a weight of 18.6 kg, the inverter's compact size makes installation easier.

Specifications

• AC Nominal Voltage: 220V/380V - 230V/400V - 240V/415V
• Max Short Circuit Current: 60A / 48A
• Rated Power: 40,000W
• Dimensions: 50.3 x 18.3 x 43.5 cm
• Weight: 18.6 kg
• Country of Manufacture: China

The Knox ASW LT-G2 40kW On-Grid Solar Inverter offers a reliable and efficient solution for commercial solar power systems, with advanced features and a compact design to enhance performance and ease of installation.
