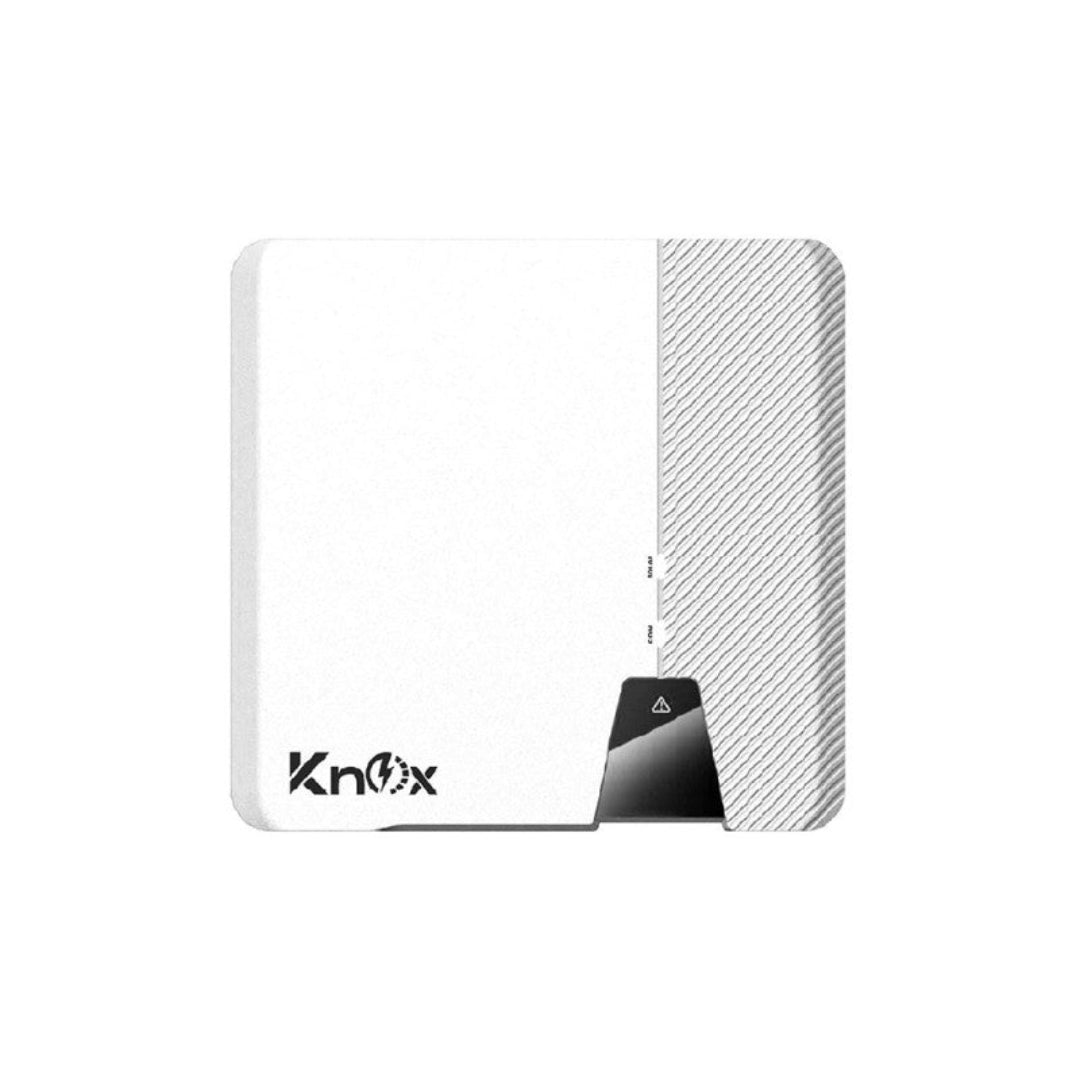

Knox ASW LT-G2 30kW On-Grid Solar Inverter
Knox ASW LT-G2 30kW On-Grid Solar Inverter
Regular price
Rs.355,000.00 PKR
Regular price
Sale price
Rs.355,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
ASW 30K-LT-G2 Three-Phase Grid-Tied Solar Inverter
The ASW 30K-LT-G2 is a high-performance three-phase grid-tied solar inverter, designed for commercial and industrial solar power systems. With a maximum PV array power of 45,000 Wp, advanced MPPT technology, and 98.6% efficiency, this inverter ensures optimal energy conversion and reliable grid integration.
Key Features
- High PV Input Capacity: Supports up to 45,000 Wp of solar panel input for maximum energy harvesting.
- Wide MPPT Voltage Range: Operates efficiently within a 200V to 1000V range, optimizing solar power generation.
- Three Independent MPPT Inputs: Provides flexibility in system design with multiple string configurations.
- Robust AC Output: Delivers 30,000W rated power with adjustable power factor and low harmonic distortion (?3%).
-
Advanced Protection Features:
- DC reverse-polarity protection
- DC breaker & AC surge protection (SPD)
- Leakage current & residual current protection
- Anti-islanding protection
- High Efficiency: 98.6% max efficiency ensures superior energy conversion and reduced losses.
- Smart Cooling System: Active cooling mechanism enhances thermal management and prolongs lifespan.
-
Durable & Weatherproof Design:
- IP65-rated enclosure for outdoor installations.
- Operates in extreme temperatures (-25°C to +60°C) and up to 3000m altitude.
-
Multiple Communication Interfaces:
- Wi-Fi & RS485 connectivity for real-time monitoring and system control.
-
Easy Installation & Integration:
- Phoenix Contact DC connection and OT connector for AC output.
- Wall-mounting bracket for secure and efficient installation.
- Certified for Compliance: Meets CE, IEC, EN, and AS/NZS standards for safety and grid compatibility.
The ASW 30K-LT-G2 is a reliable and efficient solution for large-scale solar installations, offering high power output, smart monitoring, and advanced safety features for seamless integration into commercial and industrial solar projects.
Technical Data Sheet
| Technical Data | ASW 30K-LT-G2 |
| Input (DC) | |
| Max PV array power | 45000 Wp STC |
| Max input voltage | 1100 V |
| MPP voltage range / rated input voltage | 200 V to 1000 V / 630 V |
| Min input voltage | 200 V |
| Initial feed-in voltage | 250 V |
| Max operating input current | 26 A |
| Max short circuit current | 40 A |
| Number of independent MPP inputs / strings per MPP input | 03-Feb |
| Rated power | 30000 W |
| Max apparent AC power | 30000 VA |
| Output (AC) | |
| AC nominal voltage | 220 V / 380 V 230 V / 400 V |
| AC voltage range | 180 V to 300 V |
| AC grid frequency range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
| Rated grid frequency / rated grid voltage | 50 Hz / 230 V |
| Max output current | 50.0 A |
| Power factor at rated power | 1 |
| Adjustable displacement power factor | 0.8 over excited to 0.8 under excited |
| Feed-in phases | 3/3-N-PE |
| Efficiency & Protection | |
| Harmonic distortion (THD) at rated output | <=3% |
| Max efficiency / European efficiency | 98.6% / 98.3% |
| DC reverse-polarity protection | Yes |
| DC breaker | Yes |
| DC/AC SPD | Yes |
| Leakage Current protection | Yes |
| Insulation Impedance Detection | Yes |
| Residual Current protection | Yes |
| Anti Islanding protection | Yes |
| Protection class (according to IEC62109-1) / overvoltage category (according to IEC62109-1) | 1/AC:III:DC:II |
| General Data | |
| Dimensions (W/H/D) | 670/580/270mm |
| Weight | 42 kg |
| Operating temperature range | -25°C-+60°C |
| Self-consumption (at night) | <1W |
| Topology | Transformer less |
| Cooling concept | Active cooling |
| Degree of protection (according to IEC60529) | IP65 |
| Climatic category (according to IEC60721-3-4) | 4K4H |
| Max permissible value for relative humidity (non-condensing) | 100% |
| Max operating altitude | 3000 m |
| Features | |
| DC connection | Phoenix contact |
| AC connection | OT Connector |
| Mounting type | Wall-mounting bracket |
| LED Indicators (Status/Fault/Communication) | Yes |
| Communication interface | Wi-Fi / RS485 |
| Certificates and approvals (more available on request) | CE, EN50439, IEC62109, IEC62116, IEC61727, IEC61463, EN61000, AS/NZS4777 |
