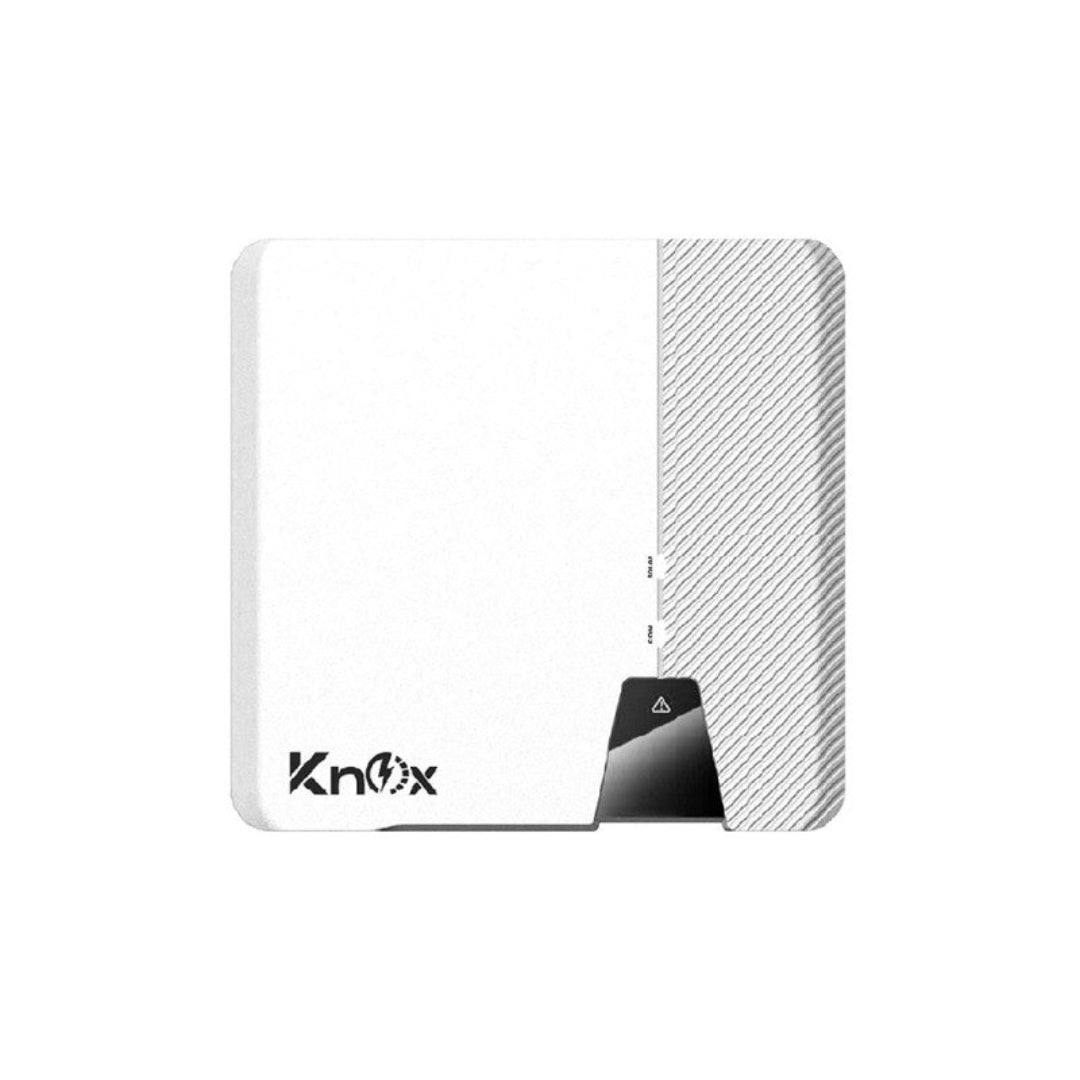

Knox ASW LT-G2 25kW On-Grid Solar Inverter
Knox ASW LT-G2 25kW On-Grid Solar Inverter
Regular price
Rs.308,000.00 PKR
Regular price
Sale price
Rs.308,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Knox ASW LT-G2 25kW 25kW Three-Phase Solar Inverter
The TP25KTL is a high-performance three-phase solar inverter designed for commercial and industrial solar applications. With dual MPPT tracking, high efficiency, and advanced safety features, it ensures optimal energy conversion and reliable operation in diverse conditions.
Key Features
- High DC Input Capacity: Supports up to 28,000W DC input power, allowing for efficient solar energy utilization.
- Wide MPPT Voltage Range (250V - 850V): Ensures maximum power point tracking for enhanced energy harvest.
- Dual MPPT Trackers: Provides flexibility for system design and improves overall efficiency.
- 25,000W Nominal AC Power Output: Capable of delivering 27,000W maximum apparent power for high-demand applications.
- Three-Phase AC Output (400V): Ensures stable and efficient energy distribution across industrial setups.
-
High Efficiency:
- 98.6% max efficiency and 98.8% European efficiency ensure excellent performance.
- 99.99% MPPT efficiency for precise solar power optimization.
- Advanced Grid Support & Power Factor Control: Adjustable 0.8 leading to 0.8 lagging for grid stability.
- Low Harmonic Distortion (<1.5%): Ensures clean and stable power output.
-
Comprehensive Protection System:
- DC Reverse Polarity Protection prevents incorrect wiring damage.
- DC Breaker & Integrated DC/AC Surge Protection (SPD) for enhanced safety.
- Leakage & Residual Current Protection safeguards against electrical hazards.
- Insulation Impedance Detection ensures system reliability.
- Anti-Islanding Protection for grid safety compliance.
-
Weatherproof & Durable Design:
- IP65-rated enclosure for outdoor installations.
- Operates in extreme conditions from -25°C to +60°C, with 0-95% non-condensing humidity tolerance.
-
Cooling System:
- Natural Convection Cooling for silent and efficient heat dissipation.
-
Smart Monitoring & Connectivity:
- LCD Display for real-time system performance tracking.
- Wi-Fi, RS485, and Mobile App support for remote monitoring and control.
-
Compact & Easy Installation:
- Dimensions: 607 × 540 × 271.5 mm
- Weight: 47.5 kg
- Wall-mountable design for hassle-free installation.
The TP25KTL is an ideal choice for commercial and industrial solar installations, offering high efficiency, smart monitoring, and robust protection features for long-term reliability and performance.
Technical Data Sheet
| Technical Data | ASW 25-LT-G2 25kW |
| Input (DC) | |
| Max Dc Power(W) | 28000 |
| Max Dc voltage | 1000Vdc |
| Min working Voltage | 250 Vdc |
| MPPT Voltage Range | 250....850 Vdc |
| Max Input Current/per string | 25A*2 |
| Number of input strings | 4 |
| Number of MPP trackers | 2 |
| Output (A.C) | |
| AC nominal power(W) | 25000 |
| Max AC apparent Power(W) | 27000 |
| Max output Current(A) | 36 |
| Nominal AC output | 50/60 HZ; 400 Vac |
| AC output range | 45/55 HZ; 280~490 Vac |
| Power factor | 0.8 leading...0.8 lagging |
| Harmonics | <1.5% |
| Grid type | 3W/N/PE |
| Efficiency | |
| Max efficiency | 98.60% |
| Euro efficiency | 98.80% |
| MPPT efficiency | 99.99% |
| Safety and Protection | |
| DC reverse-polarity protection | Yes |
| DC breaker | Yes |
| DC/AC SPD | Yes |
| Leakage Current protection | Yes |
| Insulation Impedance Detection | Yes |
| Residual Current protection | Yes |
| Anti Islanding protection | Yes |
| General Data | |
| Dimensions (W/H/D) | 607/540/271.5mm |
| Weight | 47.5kg |
| Operating temperature range | -25C....+60C |
| Degree of protection | IP65 |
| Cooling concept | Natural Convection |
| Topology | Transformer less |
| Display | LCD |
| Humidity | 0-95%, no Condensation |
| Communication:RS485/WIFI/WIFI APP | yes/yes/yes |
