Knox Argon VM II 4000 3KW Off Grid Solar Inverter With PV 4000W
Knox Argon VM II 4000 3KW Off Grid Solar Inverter With PV 4000W
Regular price
Rs.84,999.00 PKR
Regular price
Rs.115,000.00 PKR
Sale price
Rs.84,999.00 PKR
Unit price
/
per
Shipping calculated at checkout.

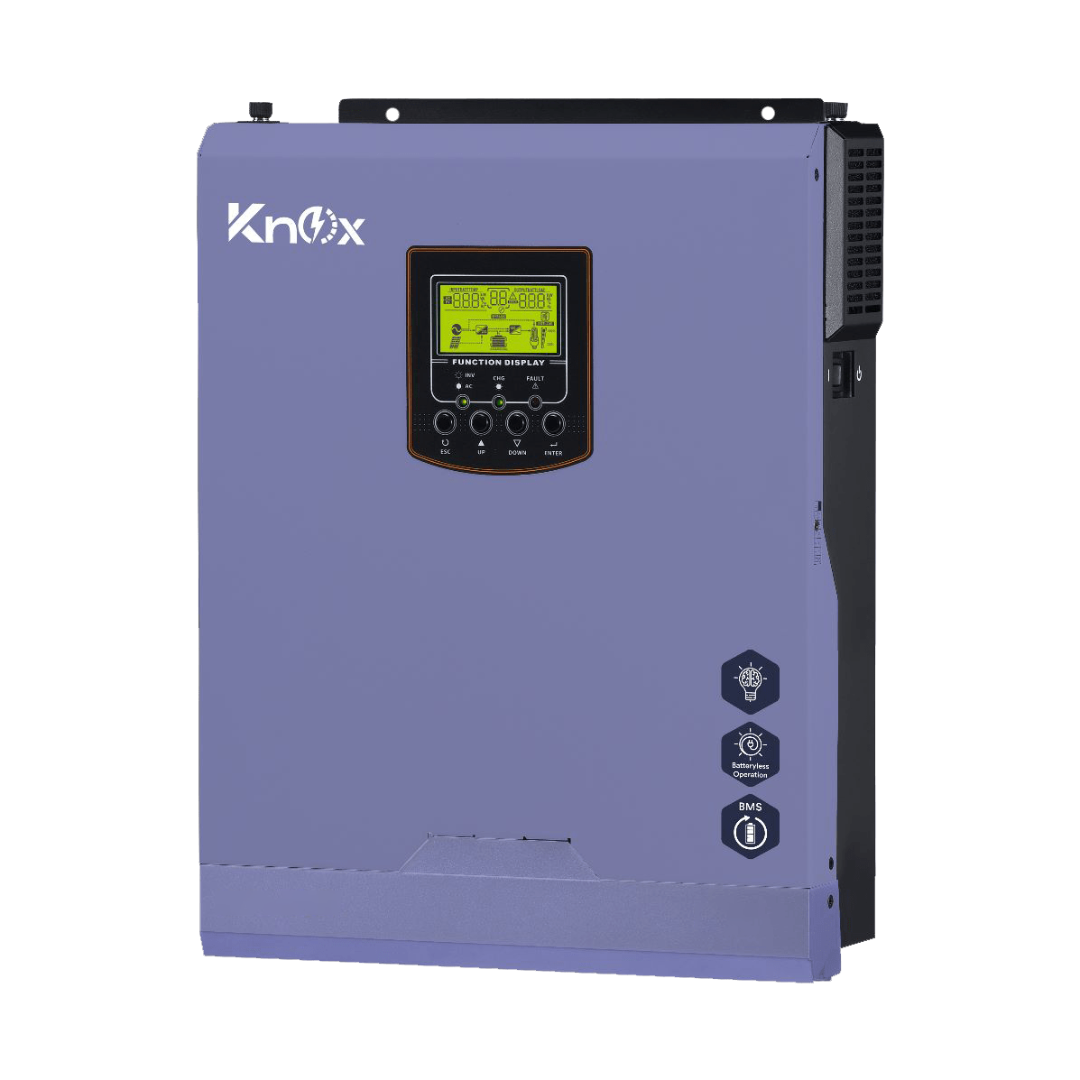

Knox Argon VM II 4000 3KW Off-Grid Solar Inverter with PV 4000W
The Knox Argon VM II 4000 is an efficient off-grid solar inverter designed for small to medium off-grid solar systems. Featuring a robust IP21-rated design, it ensures reliable indoor use with easy installation and live monitoring capabilities.
Key Features
- IP21-rated Design for Indoor Use: Ideal for protected indoor environments, ensuring durability and safety with resistance to dust and water splashes.
- 4000W PV Input: Perfect for bifacial solar panels, enabling higher energy generation and better performance in various lighting conditions.
- Wide MPPT Voltage Range (60 – 450V): Provides flexibility in solar panel selection and ensures efficient energy conversion across a variety of system setups.
- Quick & Easy Installation: Designed for fast and simple installation using standard tools, saving both time and effort.
- Easy Commissioning & Monitoring: Equipped with an LED screen for live monitoring, providing real-time access to system performance and settings.
The Knox Argon VM II 4000 is a reliable choice for off-grid solar power applications, offering ease of use, high efficiency, and durable performance.
Technical Data Sheet:
| Rated Power | 3000VA/3000W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | BATTERY |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 32 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum PV Array Power | 4000W |
| MPP Range @ Operating Voltage | 60 ~ 400 VDC |
| Maximum Solar Charge Current | 100 A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 100A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 120 x 300 x 440 |
| Net Weight (kgs) | 10 |
| Communication Interface | RS232/RS485, optional WiFi |
| ENVIRONMENT | ENVIRONMENT |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
