Jinko JKS-B48100-HI 48V 100Ah Lithium-Ion LiFePO? Battery – 4.8kWh – IP20
Jinko JKS-B48100-HI 48V 100Ah Lithium-Ion LiFePO? Battery – 4.8kWh – IP20
Regular price
Rs.285,000.00 PKR
Regular price
Rs.310,000.00 PKR
Sale price
Rs.285,000.00 PKR
Unit price
/
per
Shipping calculated at checkout.
Upgrade your solar energy storage system with the Jinko JKS-B48100-HI, a powerful and reliable 48V 100Ah low-voltage LiFePO? (LFP) battery. Designed for long-lasting performance, safety, and seamless integration, this 4.8kWh module is ideal for home, commercial, or backup applications.
Key Features:
- High Capacity: 4.8kWh of storage per unit
- Cycle Life: Over 6000 cycles at 80% DoD
- Smart BMS: Built-in Battery Management System ensures safety and longevity

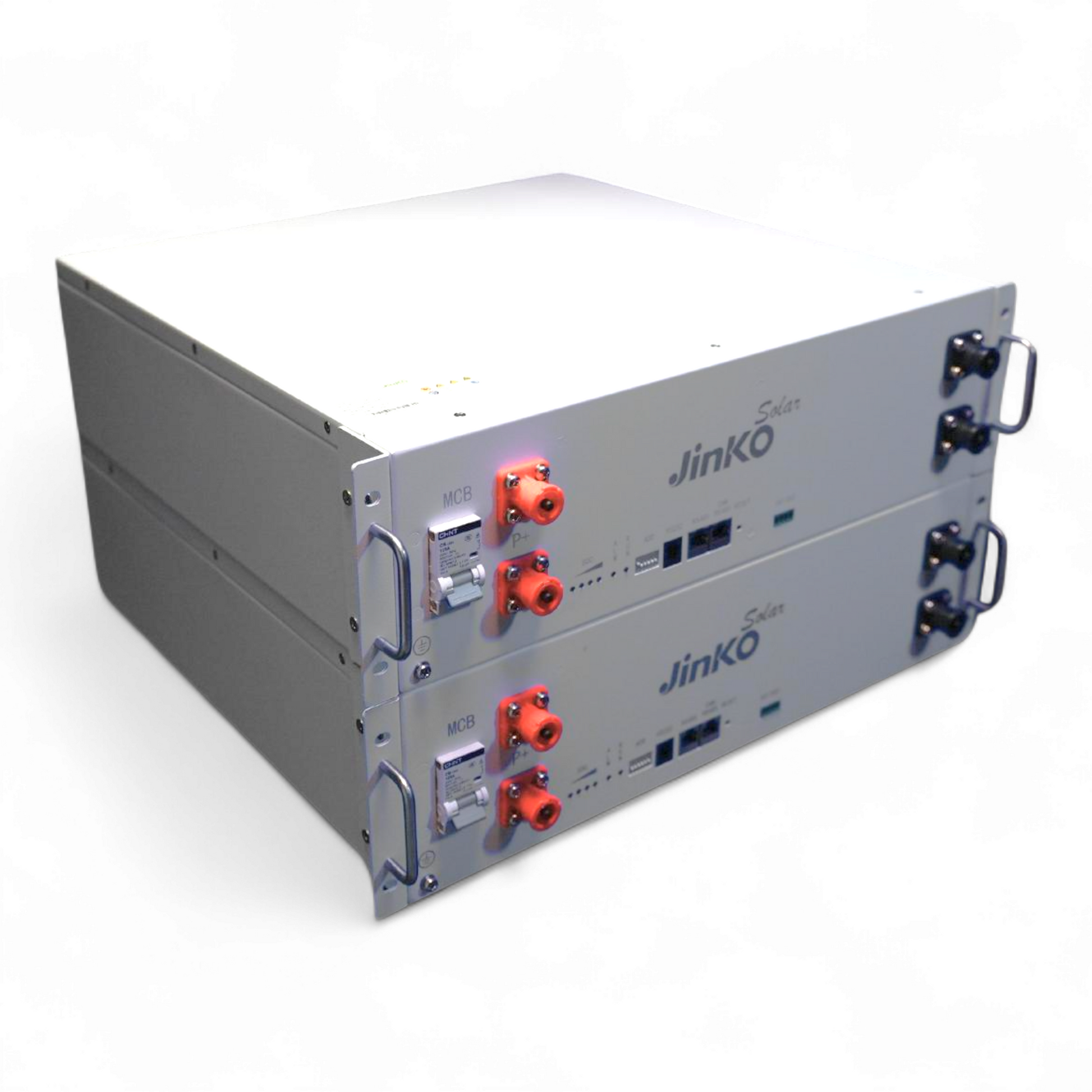

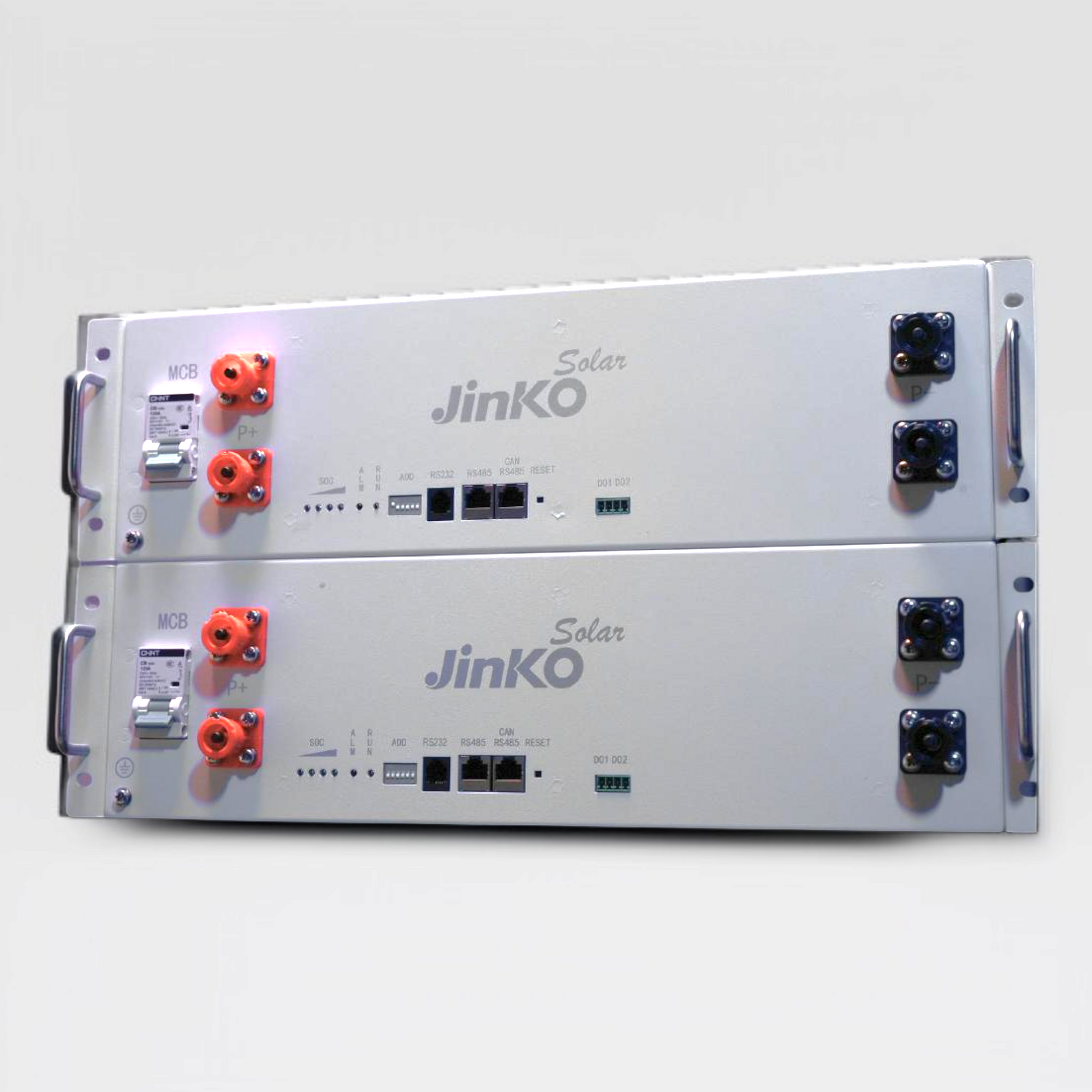

- Modular Design: Easy to scale with stackable units
| Specification | Details |
|---|---|
| Model | JKS-B48100-HI |
| Battery Type | LiFePO? (LFP) |
| Rated Voltage | 48V |
| Capacity | 100Ah |
| Energy Capacity | 4.8kWh |
| Usable Capacity | >4.5kWh @ 25°C |
| Operation Voltage Range | 40.5V – 54V |
| Cycle Life | >6000 cycles @ 80% DoD, 25°C |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Peak Discharge Current | 300A |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
| Charging Temp. Range | 0°C – 55°C |
| Discharging Temp. Range | -20°C – 60°C |
| Storage Temp. Range | 0°C – 30°C |
| Humidity | 5% – 95% RH |
| Weight | 41 ±2 kg |
| Dimensions (W × H × D) | 442 × 430 × 130.5 mm (±2) |
| Enclosure Protection Rating | IP20 |
| Warranty | 10 years |
| Certifications | IEC62619, CE, UN38.3 (Cell & Pack) |
Whether you’re expanding your current solar system or starting fresh, the JKS-B48100-HI offers unmatched performance, durability, and safety for years to come.
