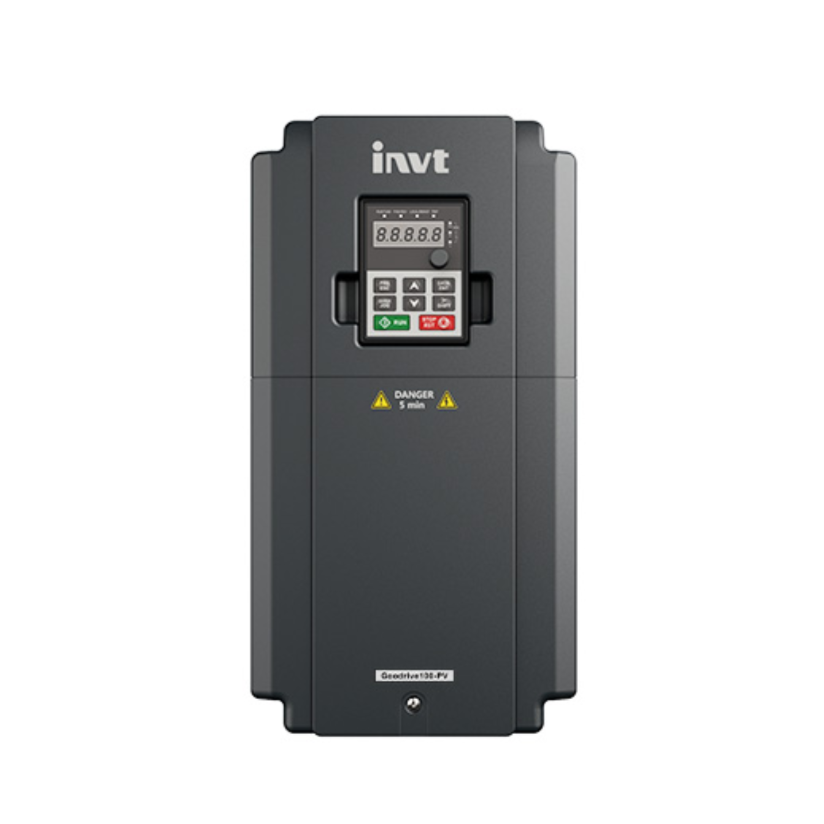

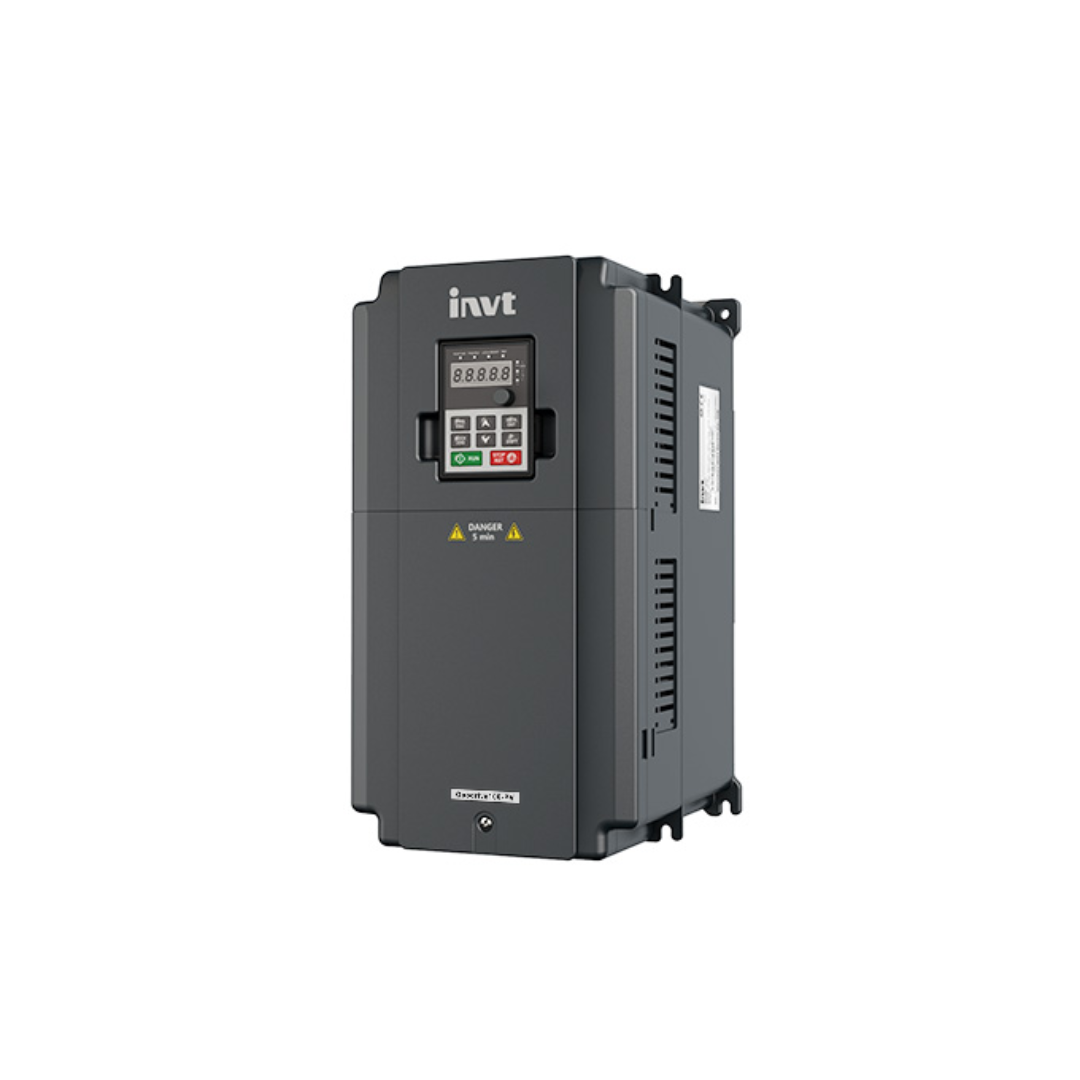

INVT GD100-PV Series Solar Water Pump VFD Inverter

INVT GD100-PV Series Solar Water Pump VFD Inverter

Rs.65,000.00 PKR
Rs.65,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

GD100-PV Series Solar Water Pump VFD

The GD100-PV Series is a high-performance solar water pump VFD designed for efficient solar pumping applications. With enhanced usability, optimized performance, and extended voltage and power range, it supports single-phase and three-phase pumps, making it a reliable solution for various solar water pumping needs.

Key Features

  • Comprehensive Voltage & Power Range – Supports single-phase/three-phase 220V and three-phase 380V pumps with a power range from 0.4kW to 110kW.

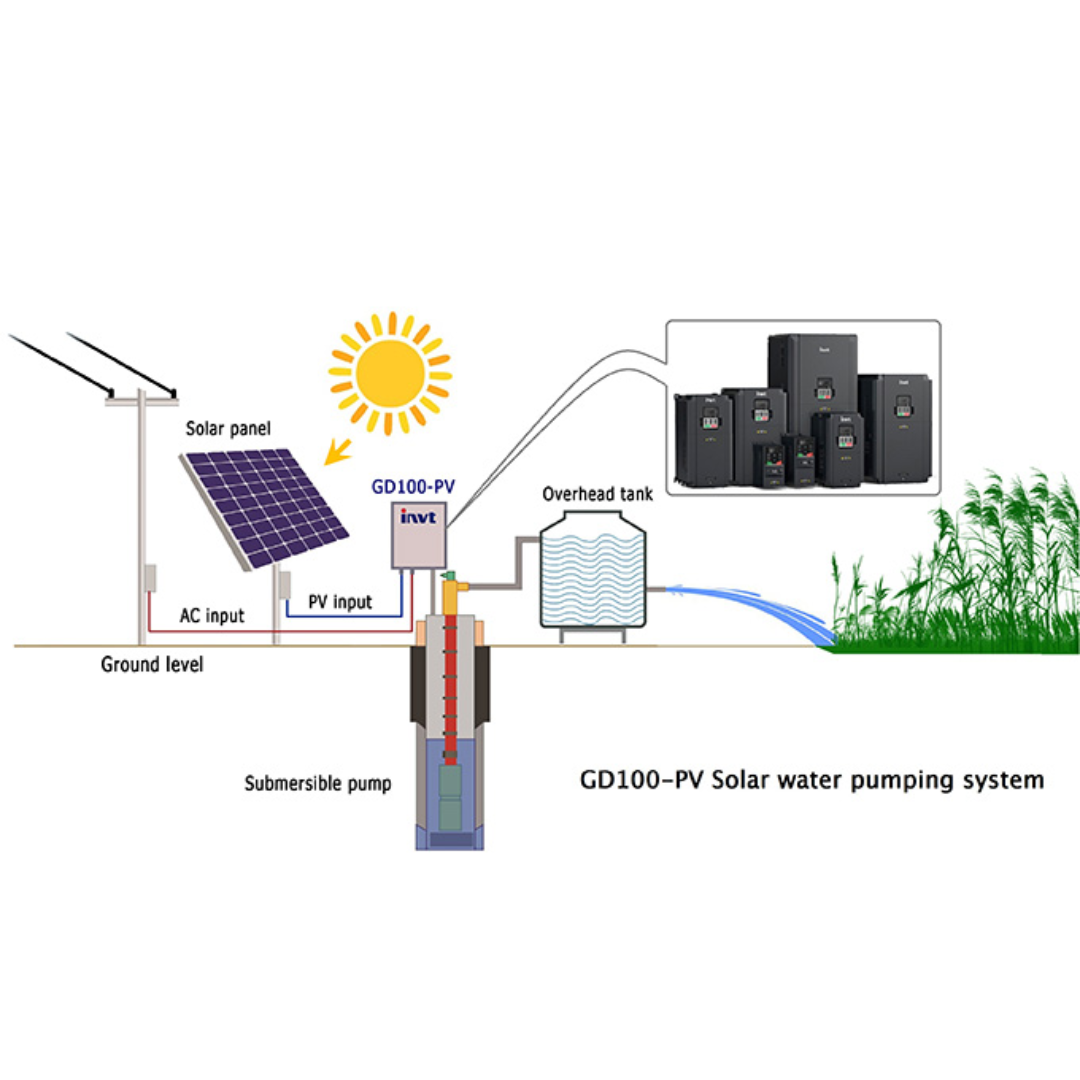

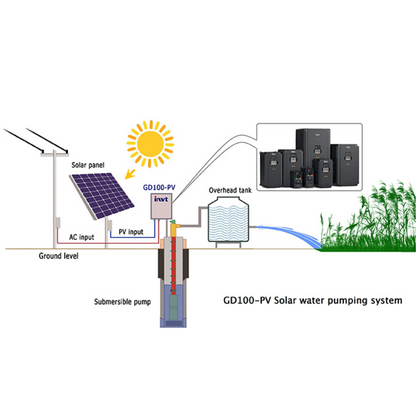

  • Easy Installation & Operation – Direct connection to photovoltaic panels without parameter settings; automatic startup upon power-on.
  • Advanced Protection Mechanisms – Features PV over-voltage protection, reverse polarity alarm, and over-temperature derating, ensuring extended product lifespan.
  • High-Efficiency MPPT Algorithm – Achieves up to 99% solar power tracking efficiency for maximum energy utilization.
  • Boost Module for Low Voltage – Models 2.2kW and below support a boost module to enhance low-voltage operation, reducing solar panel requirements and system costs.
  • GPRS Remote Monitoring – Supports an optional GPRS module for real-time monitoring via computer or mobile app.
  • AC/DC Auto Switching – Automatically switches between PV DC input and grid AC input for 24/7 operation.
  • IP54 Protection Option – Supports IP54 cabinet solutions, offering enhanced durability in demanding environments.

The GD100-PV Series is an ideal choice for reliable, efficient, and smart solar water pumping, ensuring seamless operation with minimal maintenance.

Voltage & Operating Parameters

Model AC Input Voltage (V) Max. DC Voltage (V) Start-up Voltage (V) Lowest Working Voltage (V) Recommended DC Input Voltage Range (V) Recommended MPP Voltage (V)
-SS2 220 (-15%) – 240 (+10%) (1PH) 440 200 150 200 – 400 330
-S2 220 (-15%) – 240 (+10%) (1PH) 440 200 150 200 – 400 330
-2 220 (-15%) – 240 (+10%) (3PH) 440 200 150 200 – 400 330
-4 380 (-15%) – 440 (+10%) (3PH) 800 300 250 300 – 750 550

Model Specifications & Power Ratings

Series Model Rated Output Power (kW) Rated Input Current (A) Rated Output Current (A) Max. DC Input Current (A)
-SS2 (1PH 220V, 0.4 - 2.2 kW) GD100-0R4G-SS2-PV 0.4 6.5 4.2 9
  GD100-0R7G-SS2-PV 0.75 9.3 7.2 9
  GD100-1R5G-SS2-PV 1.5 15.7 10.2 12
  GD100-2R2G-SS2-PV 2.2 24 14 12
-S2 (1PH 220V, 0.4 - 2.2 kW) GD100-0R4G-S2-PV 0.4 6.5 2.5 9
  GD100-0R7G-S2-PV 0.75 9.3 4.2 9
  GD100-1R5G-S2-PV 1.5 15.7 7.5 12
  GD100-2R2G-S2-PV 2.2 24 10 12
-2 (3PH 220V, 1.5 - 7.5 kW) GD100-1R5G-2-PV 1.5 7.7 7.5 12
  GD100-2R2G-2-PV 2.2 11 10 12
  GD100-004G-2-PV 4 17 16 20
  GD100-5R5G-2-PV 5.5 25 20 30
  GD100-7R5G-2-PV 7.5 33 30 40
-4 (3PH 380V, 0.75 - 200 kW) GD100-0R7G-4-PV 0.75 3.4 2.5 9
  GD100-1R5G-4-PV 1.5 5.0 4.2 9
  GD100-2R2G-4-PV 2.2 5.8 5.5 12
  GD100-004G-4-PV 4.0 13.5 9.5 16.5
  GD100-5R5G-4-PV 5.5 19.5 14 23.9
  GD100-7R5G-4-PV 7.5 25 18.5 30.6
  GD100-011G-4-PV 11 32 25 39.2
  GD100-015G-4-PV 15 40 32 49
  GD100-018G-4-PV 18.5 47 38 50
  GD100-022G-4-PV 22 51 45 60
  GD100-030G-4-PV 30 70 60 81
  GD100-037G-4-PV 37 80 75 90
  GD100-045G-4-PV 45 98 92 130
  GD100-055G-4-PV 55 128 115 150
  GD100-075G-4-PV 75 139 150 200
  GD100-090G-4-PV 90 168 180 250
  GD100-110G-4-PV 110 201 215 300
  GD100-132G-4-PV 132 265 260 360
  GD100-160G-4-PV 160 310 305 430
  GD100-185G-4-PV 185 345 340 500
  GD100-200G-4-PV 200 385 380 550
