DJDC Dongjin 48V 100Ah Lithium-ion LiFePO? Battery – 5.12kWh – IP32 – Wall-Mounted

DJDC Dongjin 48V 100Ah Lithium-ion LiFePO? Battery – 5.12kWh – IP32 – Wall-Mounted

Regular price Rs.245,000.00 PKR
Regular price Rs.270,000.00 PKR Sale price Rs.245,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

Upgrade your solar energy system with the DJDC 48V 100Ah Wall-Mounted Lithium-ion LiFePO? Battery, engineered for performance, reliability, and long service life. With a high energy capacity of 5.12kWh and integrated Smart BMS (Battery Management System), this compact and durable unit is perfect for residential and small commercial solar energy storage applications.

Key Features:

  • High Capacity: 100Ah @ 51.2V, delivering 5.12kWh of usable energy.
  • Smart BMS: Advanced protection and real-time monitoring for safe and efficient operation.
  • Long Lifespan: Up to 6000 cycles at 80% depth of discharge (DoD).
  • Reliable Communications: RS232, RS485, and CAN interface compatibility.
  • Space-Saving Design: Slim, wall-mounted unit with an IP32 rating for indoor installations.
  • Safe Chemistry: Lithium Iron Phosphate (LiFePO?) technology ensures thermal stability and safety.

Ideal for backup power, off-grid systems, and energy optimization in solar installations.

Specification DJDC 48V 100Ah-WM
Battery Type LiFePO4
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Energy 5120Wh
Communication RS232/RS485/CAN
Resistance ?10m?
Cycle Life 6000 cycles @ 80%
Protection BMS
IP Degree IP32
Parallel Communication Up to 8 batteries
Full Charge Voltage 58.4V
Full Discharge Voltage 40V
Rated Discharging Current 20A
Max. Discharging Current 100A
Charge Voltage 58.4V
Charge Current 40A
Recommended Charging/Discharging Current 50A
Standard Charge Method 0.2C CC to 58.4V, CV till <0.05C
Display LCD
Charge Temperature Range 0-45°C
Discharge Temperature Range -20°C to 60°C

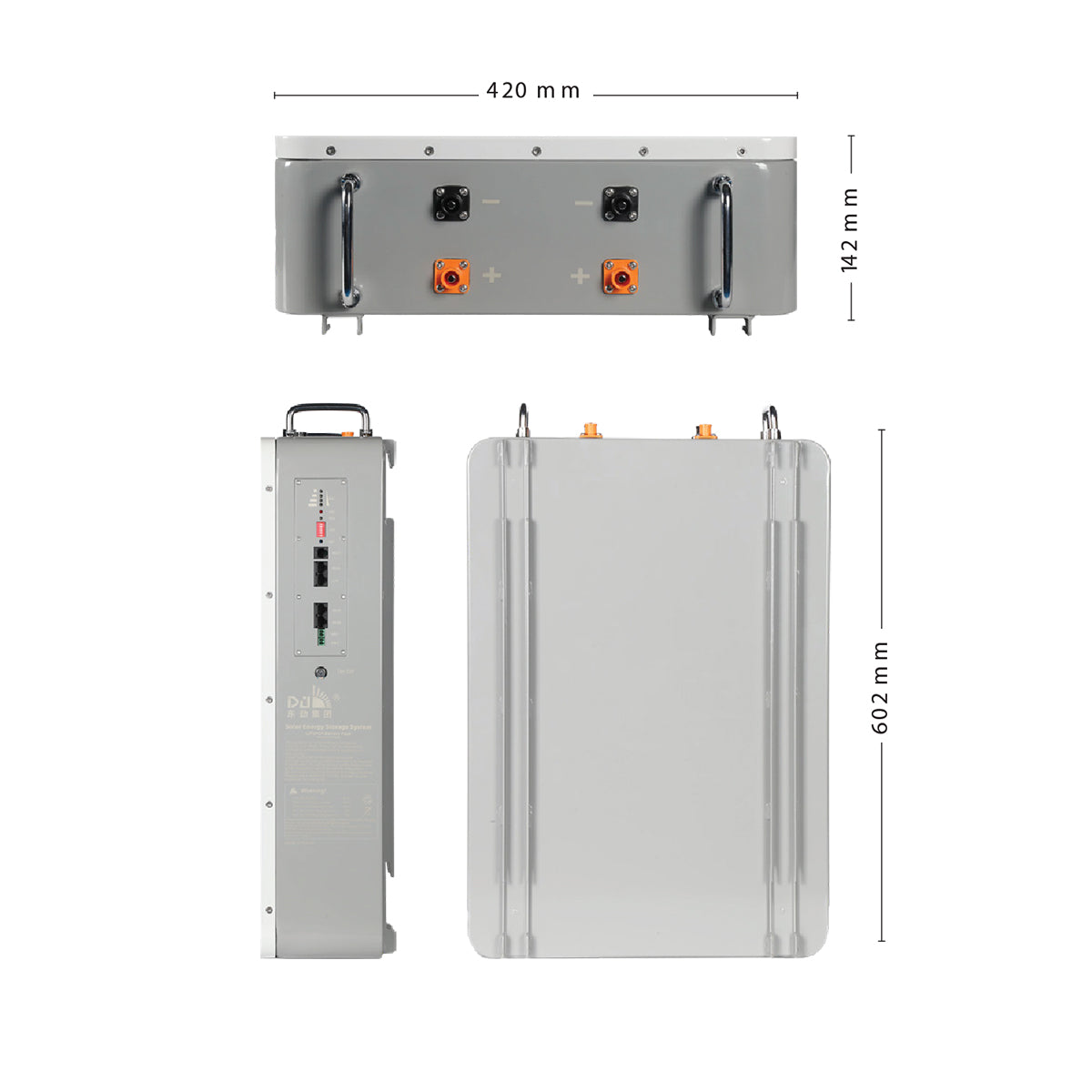

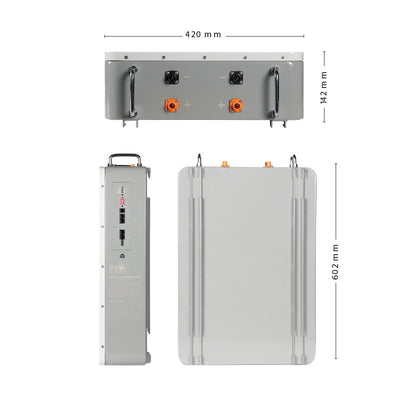

Dimensions (DxWxH) 602 x 420 x 142 mm
Net Weight 45 kg
