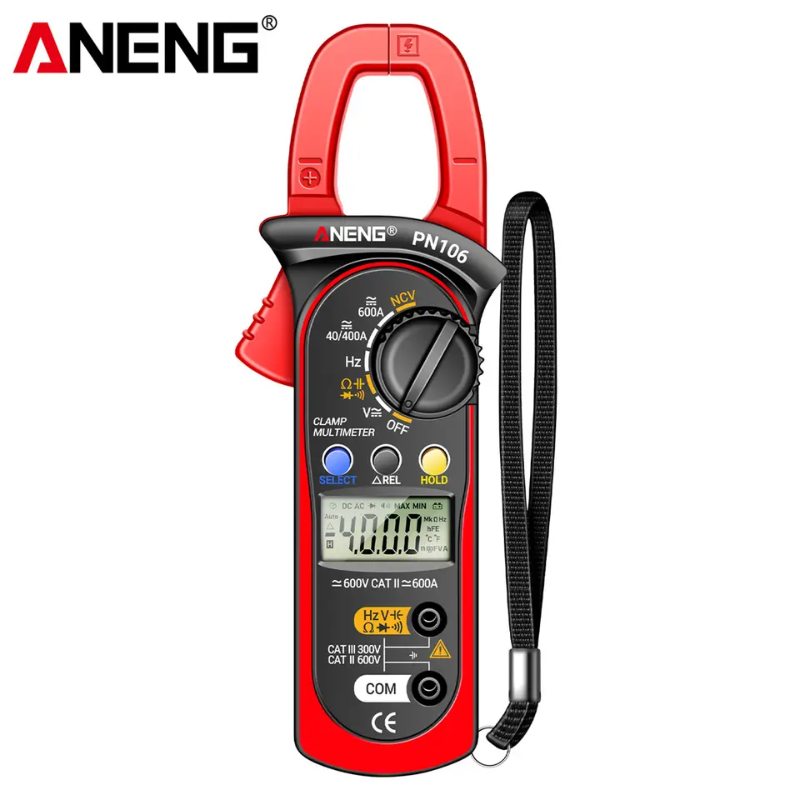

ANENG PN106 4000 Counts Voice Broadcast Clamp Meter 600A AC/DC Current True RMS Digital Multimeter Clamp Diode Hz Ohm Tester Tools
Basic introduction:
Accuracy:(reading + words)
Battery Type : AAA battery X 2 (ship without battery)
Overload protection: Resistor/diode/frequency/capacitance
This digital clamp meter is a small 4000 bit true RMS meter, and also is voice broadcast digital meter. This instrument adopts the newly launched revolutionary digital multimeter chip. The chip is equipped with a digital processor to measure 4MHz digital true RMS value. The built-in calibration program can easily complete various high-precision digital correction.
The characteristics are cherished, including high reliability, safety qualification, high precision, miniaturization, full range overload protection, reliable measurement accuracy and unique appearance design. It has become a new generation of practical electrical /power measuring with its excellent performance.
Technical Specification:
| PN106 Information Form | |||
| Function | Range | Resolution | Precision |
| AC voltage | 0V-600V | 1mV-1V | ±(1.5%+5) |
| DC voltage | 0V-600V | 0.1mV-1V | ±(1.2%+5) |
| AC current | 0A-600A | 10mA-1A | ±(3%+20) |
| DC current | 0A-600A | 10mA-1A | ±(3%+20) |
| resistance | 0?-40.00M? | 100m?-10K? | ±(1.5%+2) |
| capacitor | 0nF-4mF | 10pF-1uF | ±(5%+15) |
| Hz frequency | 0Hz-4MHz | 0.1Hz-1kHz | ±(2.5%+5) |
| diode | ? | Model | PN106 |
| buzzer | ? | Battery | AAA battery X 2 |
| NCV induction | ? | Screen | LCD screen |
| Relative value | ? | Material | ABS |
| Low battery prompt | ? | Max count | 4000 counts |
| Data retention | ? | Weight | 167g |
| Automatic shutdown | ? | Jaw opening diameter | 30mm/1.18inch |

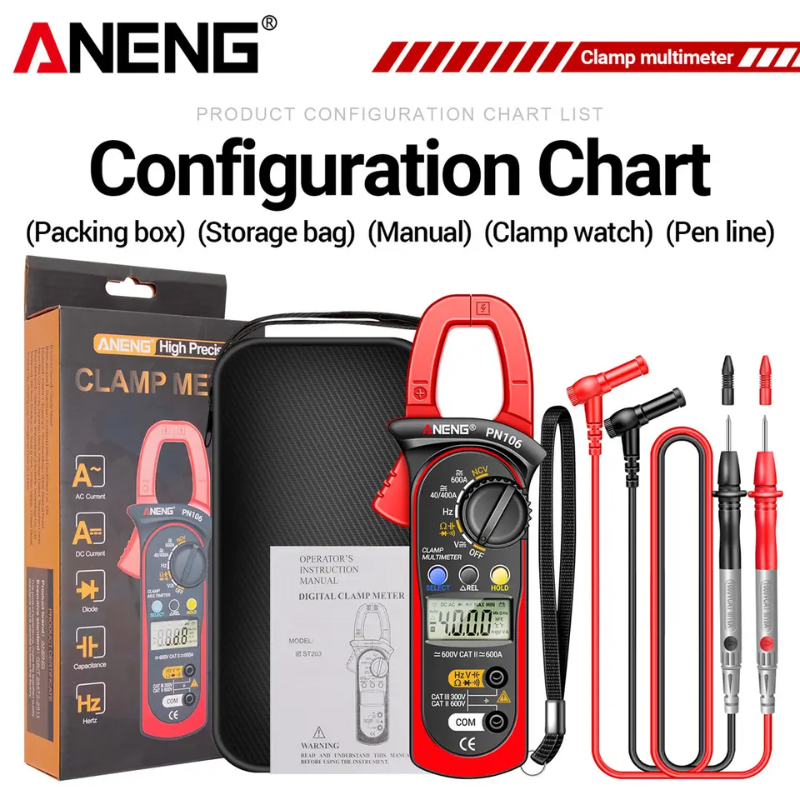

Package:(ship without battery)
1 X PN106 Clamp Meter
2 X Test Lead
1 X User Manual
1 X Storage Bag
1 X Packing Box
